Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 741/970
same version in the vlan, the snooping querier move to non querier state. Only when this
mode is enabled, the snooping querier will participate in querier election where in the least
ip address will win the querier election and operates as the querier in that VLAN. The
other querier moves to non-querier state.

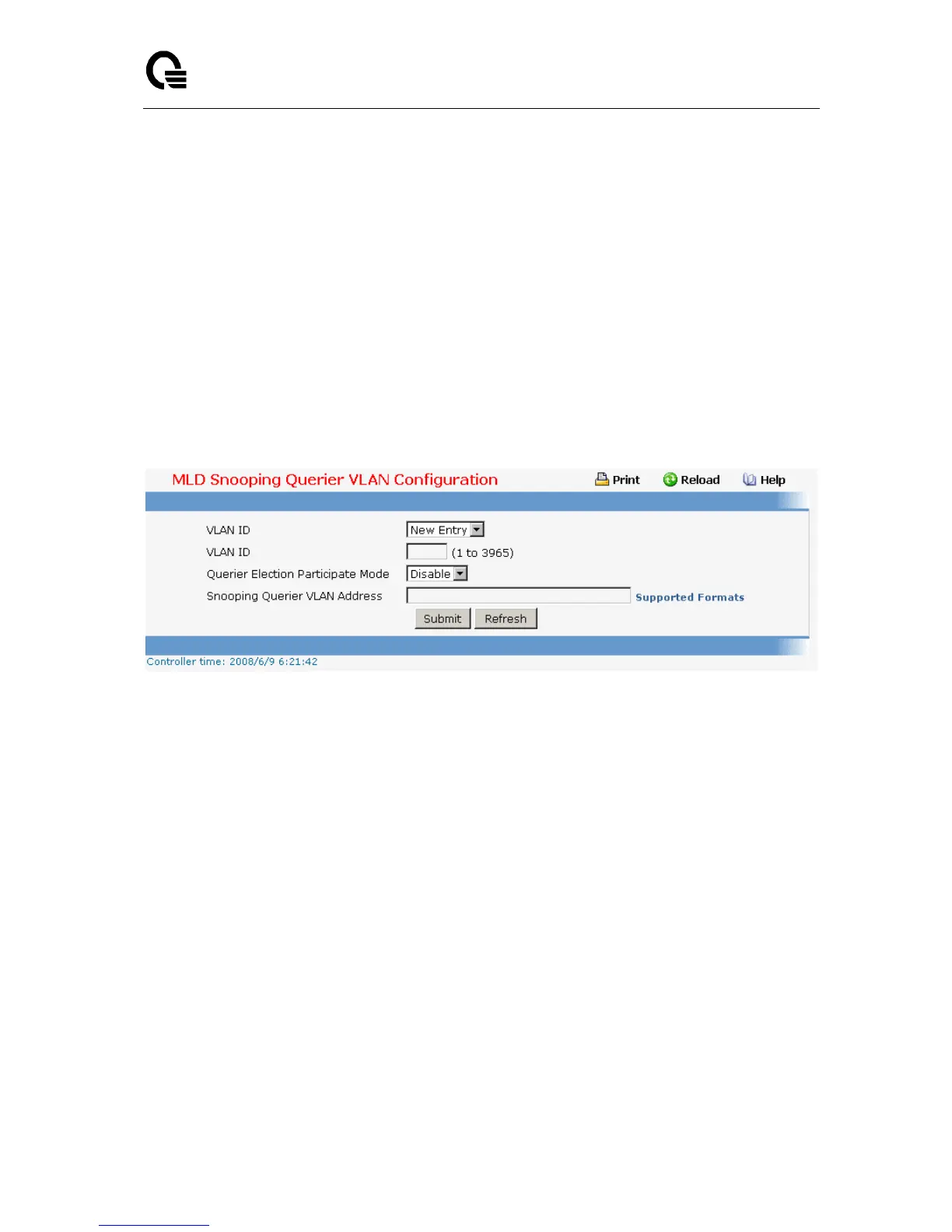

Snooping Querier VLAN Address - Specify the Snooping Querier Address to be used as
source address in periodic MLD queries sent on the specified VLAN.
Command Buttons
Submit - Update the switch with the configured values.
Delete - To disable Snooping Querier on the selected VLAN. This button is not visible
when a VLAN is not selected.
Refresh - Reload the information on the page.
11.2.2.14.3. Configuring MLD Snooping VLAN Configuration Summary Page
Configurable Data
VLAN ID Search - Enter VLAN ID, then click on the search button. If the record exists,
that entry will be displayed. An exact match is required.
Non-Configurable Data
VLAN ID - Specifies the VLAN ID on which MLD Snooping Querier is administratively
enabled.
Admin Mode - Display the administrative mode for MLD Snooping for the switch.
Querier Election Participate Mode - Displays the querier election participate mode on
the VLAN. When this mode is disabled, up on seeing a query of the same version in the
vlan, the snooping querier move to non querier state. Only when this mode is enabled,
the snooping querier will participate in querier election where in the least ip address will
win the querier election and operates as the querier in that VLAN. The other querier
moves to non-querier state.
