Clear Entries - Clicking this button tells the IGMP Snooping component to delete all of its
entries from the multicast forwarding database.

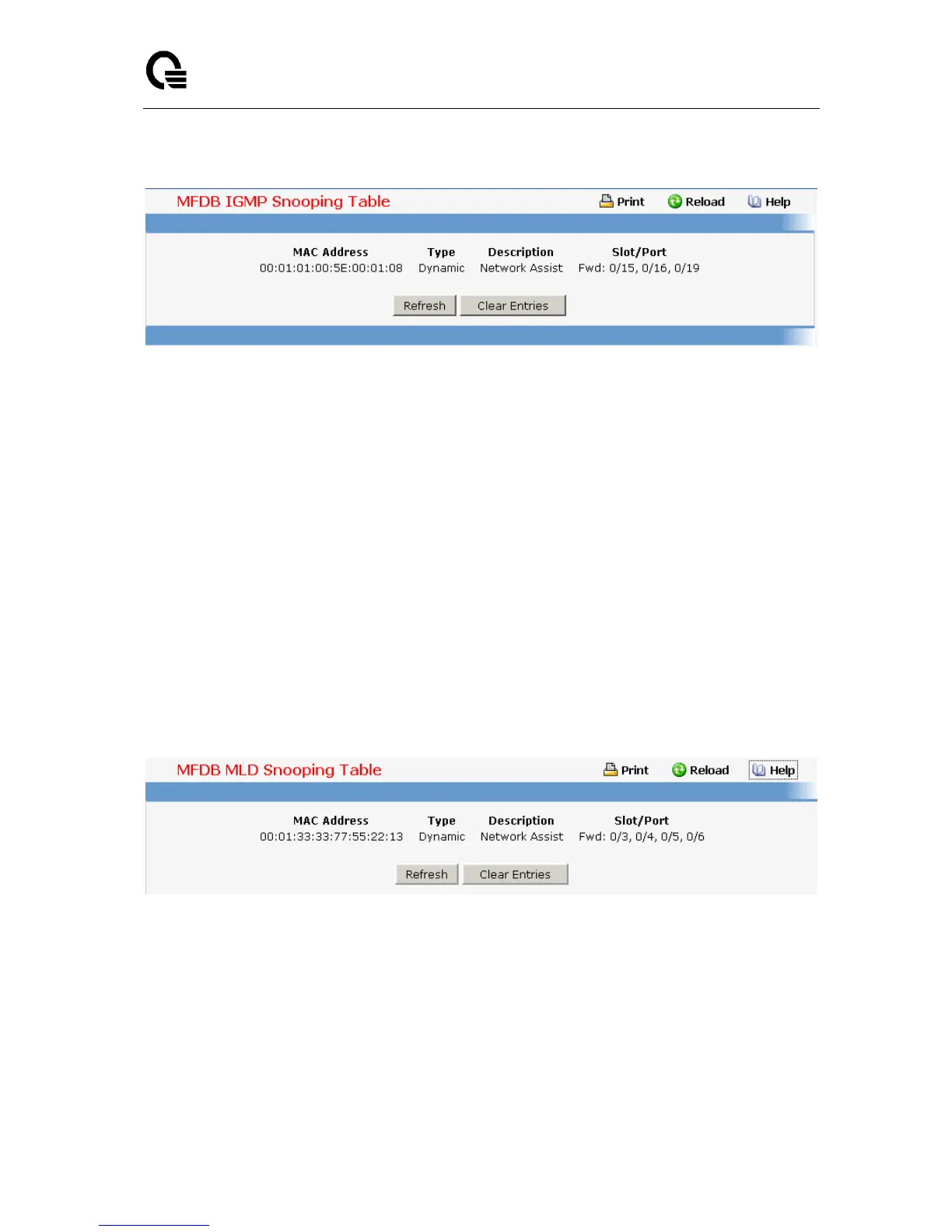

11.2.2.16.4. Viewing MLD Snooping MFDB Table Page
Non-Configurable Data
MAC Address - A VLAN ID - multicast MAC address pair for which the switch has
forwarding and or filtering information. The format is 8 two-digit hexadecimal numbers that
are separated by colons, for example 00:01:23:45:67:89:AB:CD.
Type - This displays the type of the entry. Static entries are those that are configured by
the user. Dynamic entries are added to the table as a result of a learning process or
protocol.
Description - The text description of this multicast table entry. Possible values are
Management Configured, Network Configured and Network Assisted.
Slot/Port(s) - The list of interfaces that are designated for forwarding (Fwd:) and filtering
(Flt:).
Command Buttons
Clear Entries - Clicking this button tells the MLD Snooping component to delete all of its
entries from the multicast forwarding database.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.2.2.16.5. Viewing Multicast Forwarding Database Statistics Page
Non-Configurable Data
Max MFDB Entries - The maximum number of entries that the Multicast Forwarding
Database table can hold.
Most MFDB Entries Since Last Reset - The largest number of entries that have been
present in the Multicast Forwarding Database table since last reset. This value is also
known as the MFDB high-water mark.
Current Entries - The current number of entries in the Multicast Forwarding Database
