Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 747/970

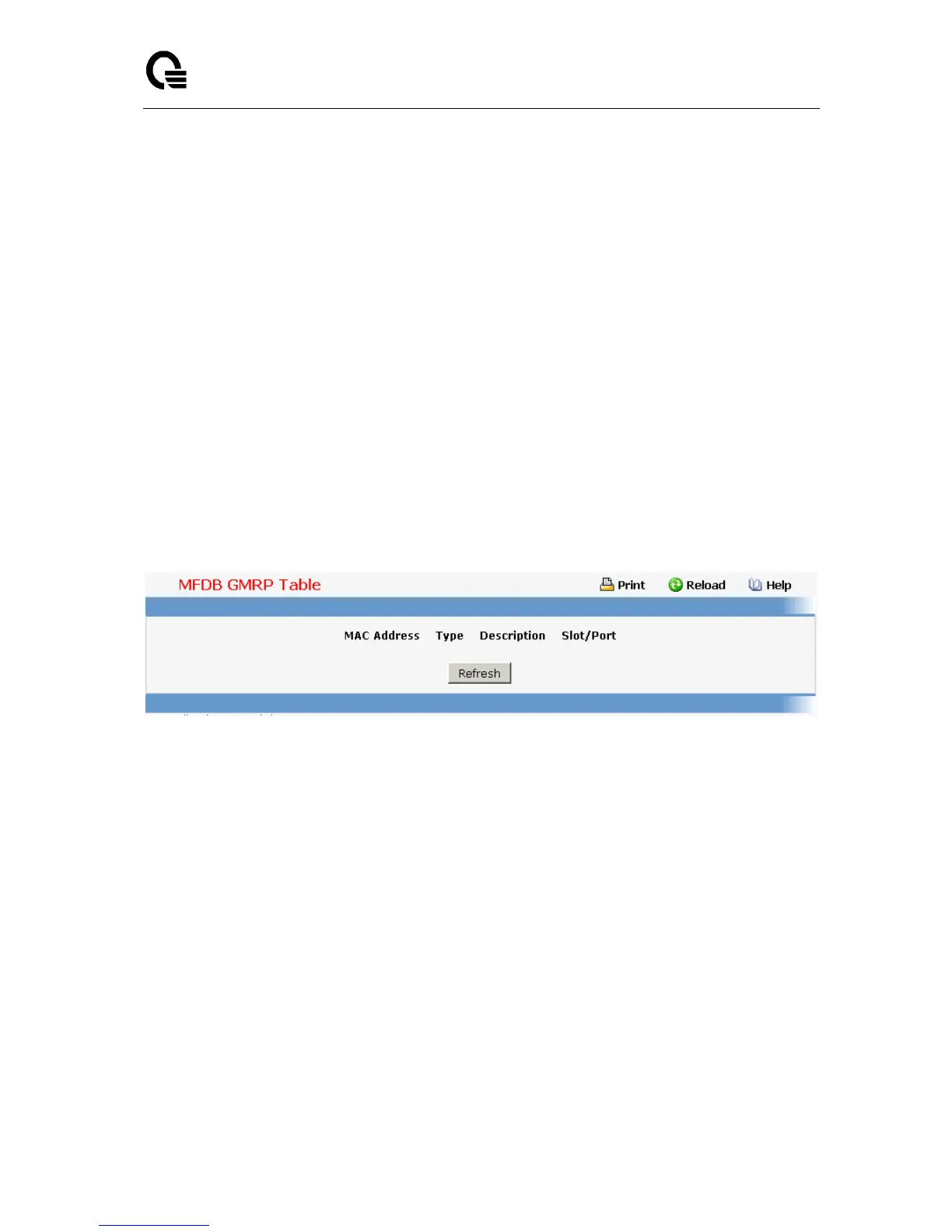

11.2.2.16.2. Viewing GMRP MFDB Table Page
This screen will display all of the entries in the Multicast Forwarding Database that were
created for the GARP Multicast Registration Protocol.
Non-Configurable Data
MAC Address - A VLAN ID - multicast MAC address pair for which the switch has
forwarding and/or filtering information. The format is 8 two-digit hexadecimal numbers that
are separated by colons, for example 00:01:23:45:67:89:AB:CD.
Type - This displays the type of the entry. Static entries are those that are configured by
the user. Dynamic entries are added to the table as a result of a learning process or
protocol.
Description - The text description of this multicast table entry. Possible values are
Management Configured, Network Configured, and Network Assisted.
Slot/Port(s) - The list of interfaces that are designated for forwarding (Fwd:) and filtering
(Flt:).
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.2.2.16.3. Viewing IGMP Snooping MFDB Table Page
Non-Configurable Data
MAC Address - A VLAN ID - multicast MAC address pair for which the switch has
forwarding and/or filtering information. The format is 8 two-digit hexadecimal numbers that
are separated by colons, for example 00:01:23:45:67:89:AB:CD.
Type - This displays the type of the entry. Static entries are those that are configured by
the user. Dynamic entries are added to the table as a result of a learning process or
protocol.
Description - The text description of this multicast table entry. Possible values are
Management Configured, Network Configured, and Network Assisted.
Slot/Port(s) - The list of interfaces that are designated for forwarding (Fwd:) and filtering
(Flt:).
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
