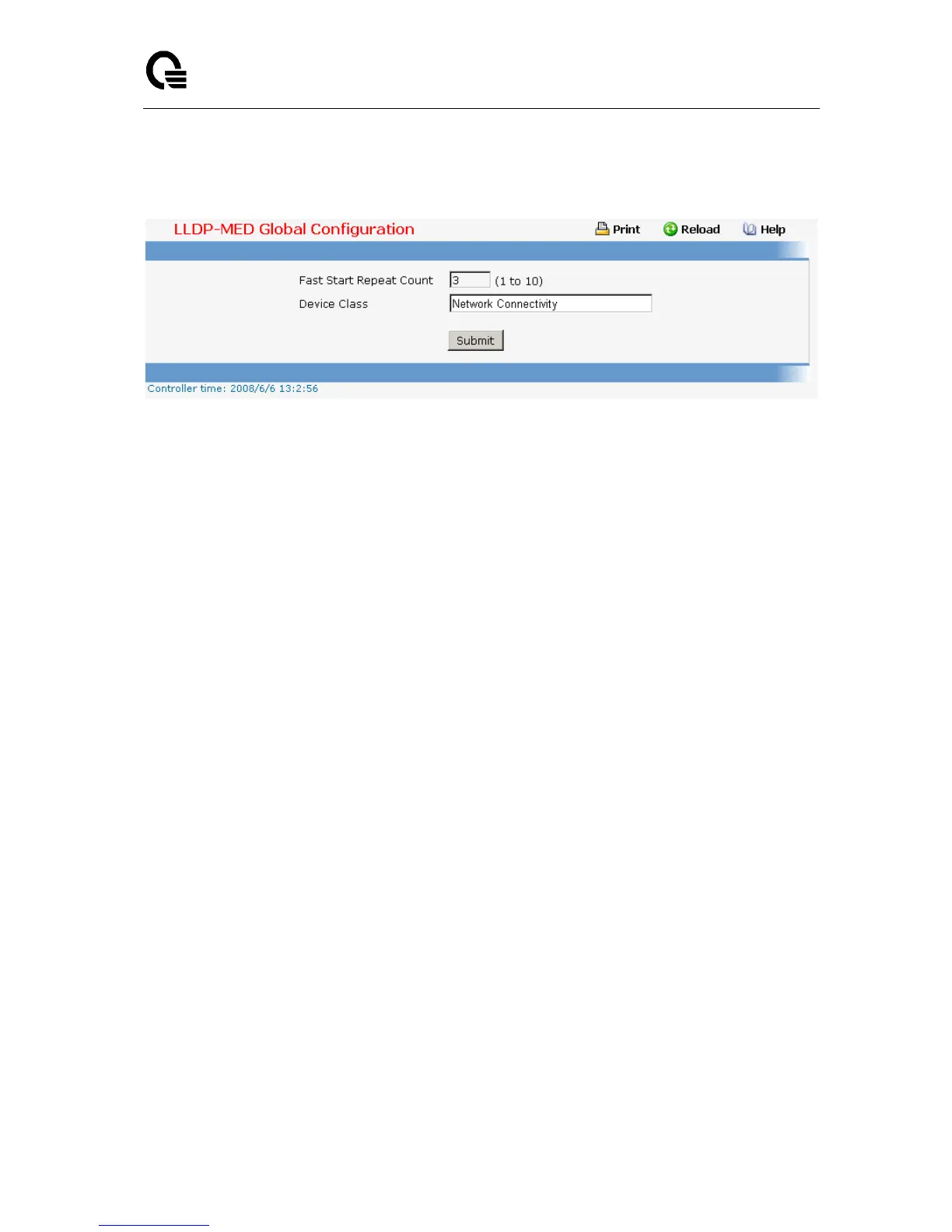

Submit - Send the updated screen to the switch and cause the changes to take effect on
the switch but these changes will not be retained across a power cycle unless a save is
performed.
11.2.2.21.2. Configuring LLDP-MED Interface Configuration Page
Selection Criteria
Interface - Specifies the list of ports on which LLDP-MED - 802.1AB can be configured.
'All' option is provided to configure all interfaces on the DUT and to be consistent with CLI.
To view the summary of all interfaces refer to 'Interface Summary' webpage. Interface
configuration page will not be able to display summary of 'All' interfaces, summary of
individual interfaces is visible from 'Interface Configuration' webpage. 'Interface
Configuration' webpage for 'All' option will always display LLDP-MED mode and
notification mode as 'disabled' and checkboxes for 'Transmit TLVs' will always be
unchecked.
Configurable Data
LLDP-MED Mode - Specifies the Link Layer Data Protocol-Media End Point (LLDP-MED)
mode for the selected interface. By enabling MED, we will be effectively enabling the
transmit and receive function of LLDP.
Config Notification Mode - Specifies the LLDP-MED topology notification mode for the
selected interface.
Transmit TLVs - Specifies which optional type length values (TLVs) in the LLDP-MED will
be transmitted in the LLDP PDUs frames for the selected interface.
MED Capabilities - To transmit the capabilities TLV in LLDP frames
Network Policy - To transmit the network policy TLV in LLDP frames.
Location Identification - To transmit the location TLV in LLDP frames.
Extended Power via MDI - PSE - To transmit the extended PSE TLV in LLDP
frames.
Extended Power via MDI - PD - To transmit the extended PD TLV in LLDP frames.
