OSPF is enabled.
Selection Criteria
Slot/Port - Selects the interface for which data is to be displayed or configured. Slot 0 is
the base unit.
Non-Configurable Data
Router ID - A 32 bit integer in dotted decimal format representing the neighbor interface.
IP Address - The IP address of the neighboring router's interface to the attached network.
It is used as the destination IP address when protocol packets are sent as unicasts along
this adjacency. Also used in router-LSAs as the Link ID for the attached network if the
neighboring router is selected to be designated router. The Neighbor IP address is
learned when Hello packets are received from the neighbor. For virtual links, the
Neighbor IP address is learned during the routing table build process.
Neighbor Interface Index - A Slot/Port identifying the neighbor interface index.
Command Buttons

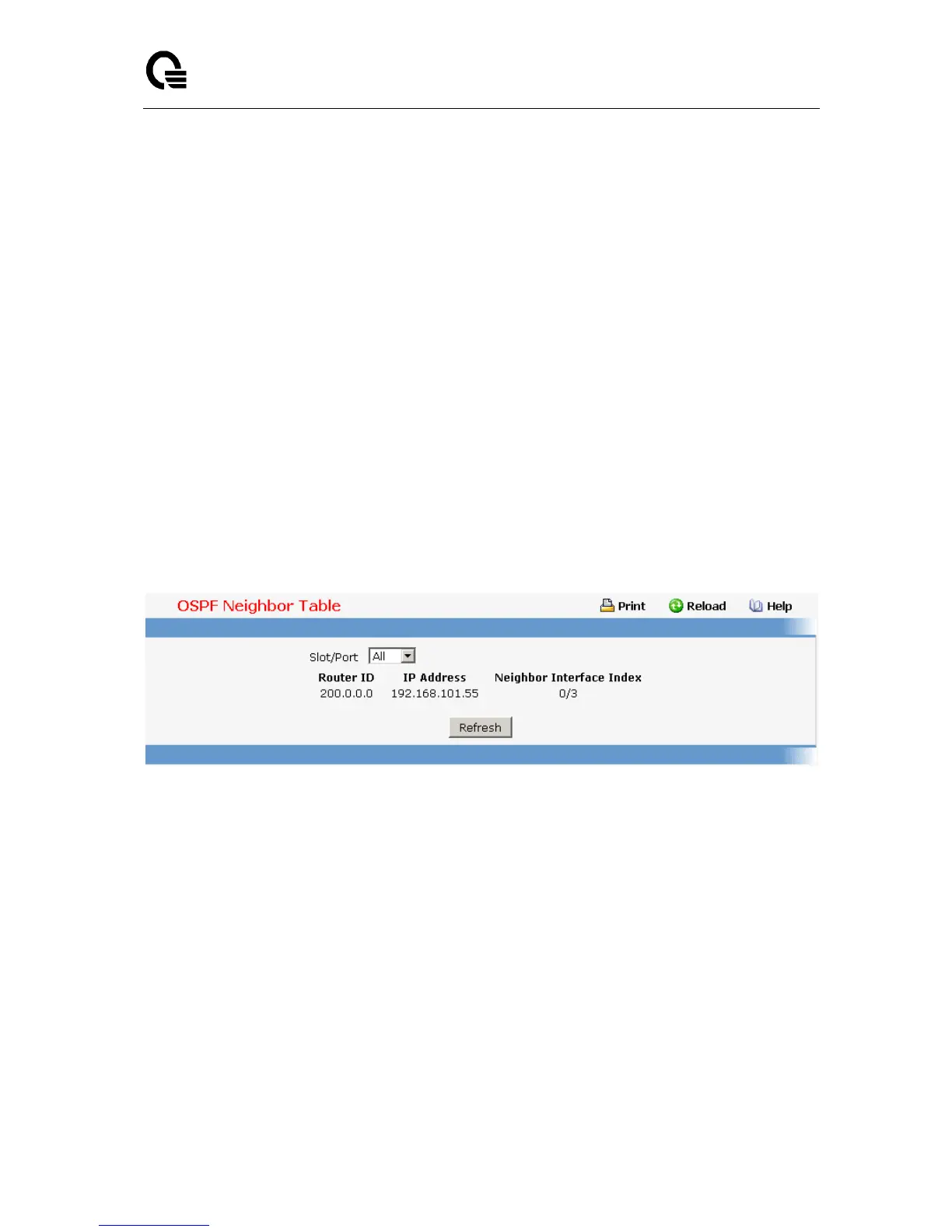

Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.2.3.3.8. Configuring OSPF Neighbor
This panel displays the OSPF neighbor configuration for a selected neighbor ID. When a
particular neighbor ID is specified, detailed information about a neighbor is given. The
information below will only be displayed if OSPF is enabled and the interface has a neighbor.
The IP address is the IP address of the neighbor.
Selection Criteria
Slot/Port - Selects the interface for which data is to be displayed or configured. Slot 0 is
the base unit.
Neighbor IP Address - Selects the IP Address of the neighbor for which data is to be
displayed.
