Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 832/970
immediately. These changes will not be retained across a power cycle unless a save is
performed.

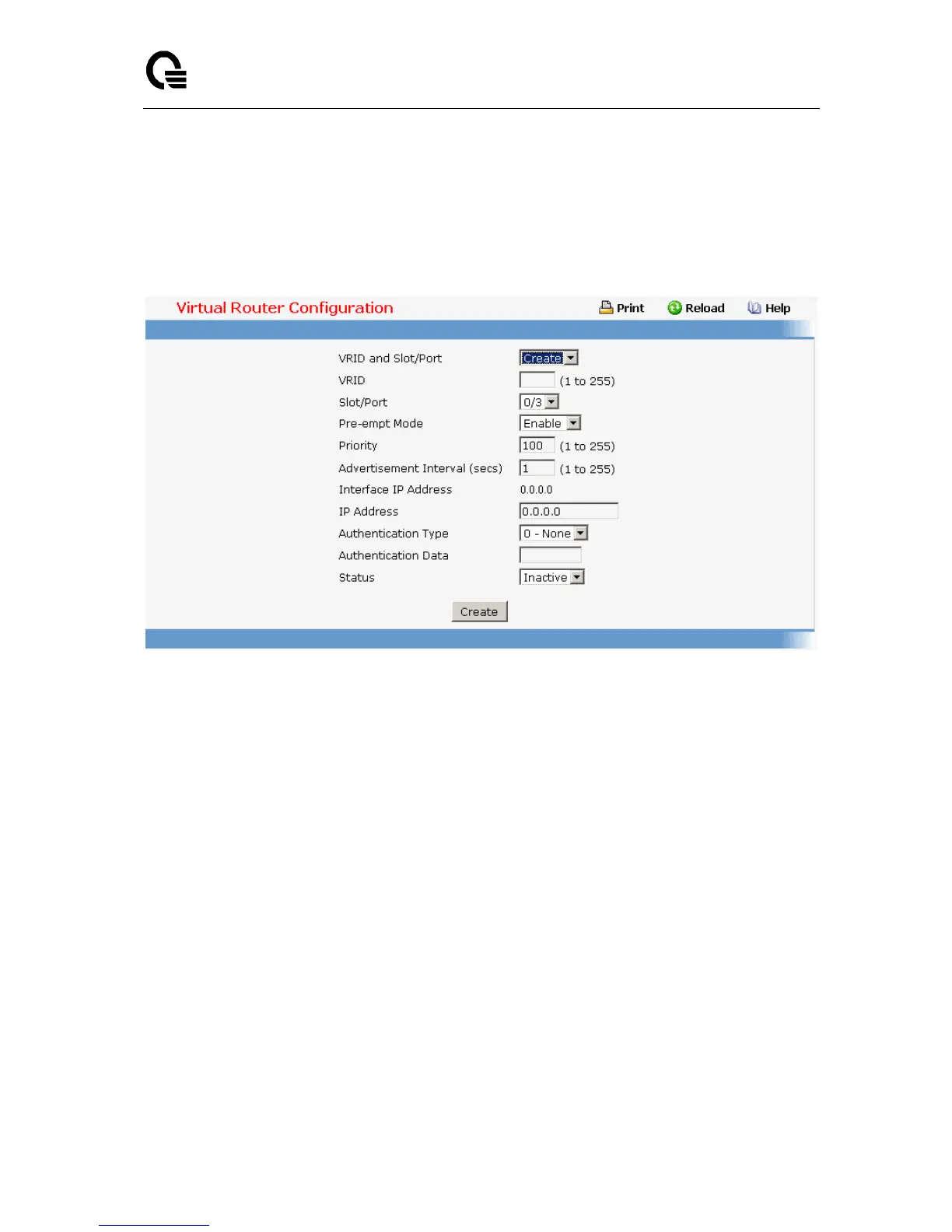

Delete - Delete the selected Virtual Router. Note that the router can not be deleted if
there are secondary addresses configured.
Secondary IP Address - Proceed to the Secondary IP Address configuration screen.
11.2.3.10.3. Viewing Virtual Router Status
Non-Configurable Data
VRID - Virtual Router Identifier.
Slot/Port - Indicates the interface associate with the VRID.
Priority - The priority value used by the VRRP router in the election for the master virtual
router.
Pre-empt Mode -

Enable - if the Virtual Router is a backup router it will preempt the master router if it
has a priority greater than the master virtual router's priority provided the master is not
the owner of the virtual router IP address.

Disable - if the Virtual Router is a backup router it will not preempt the master router
even if its priority is greater.
Advertisement Interval (secs) - the time, in seconds, between the transmission of
advertisement packets by this virtual router.
