Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 840/970

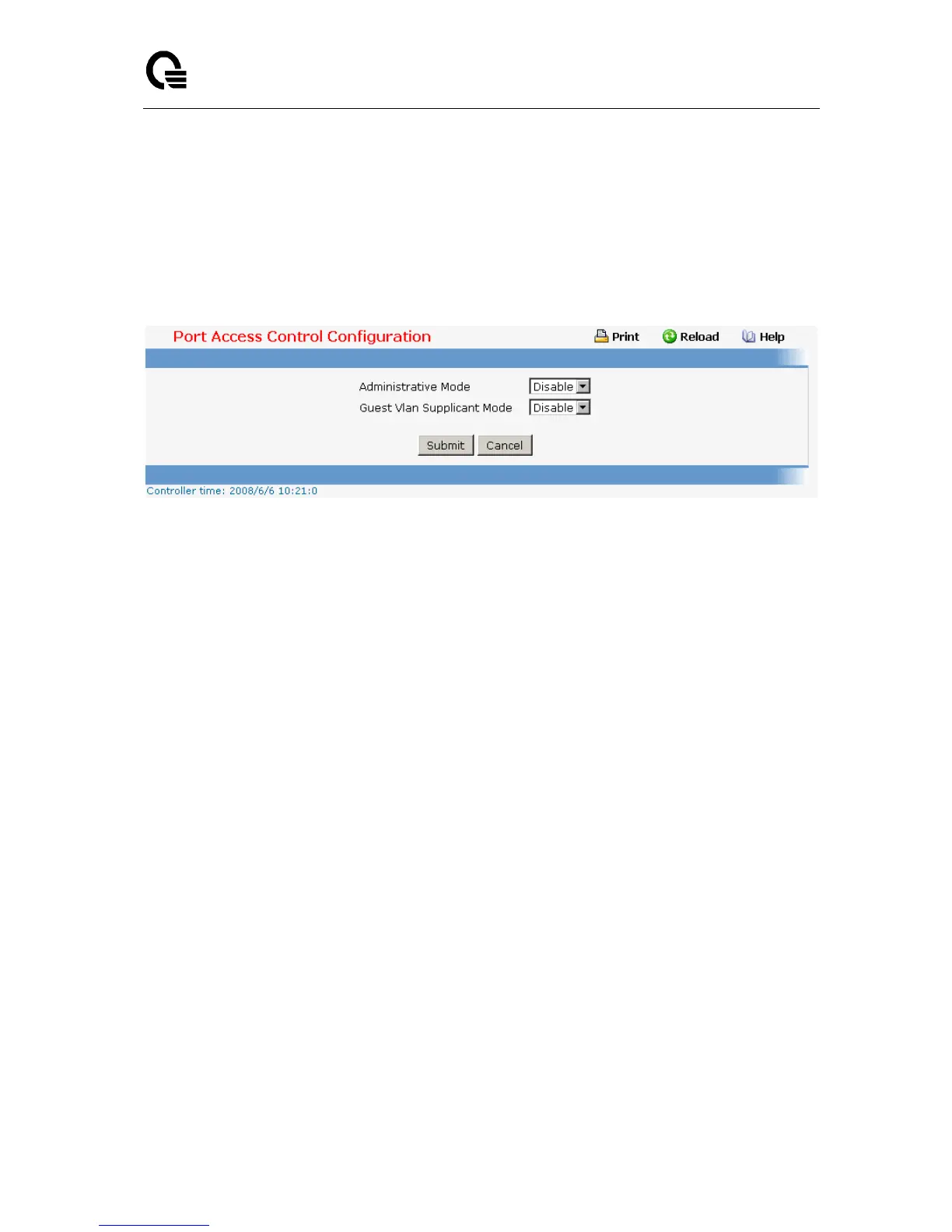

Guest Vlan Supplicant Mode - This selector lists the two options for Guest VLAN
Supplicant mode: enable and disable. The default value is disable.
Command Buttons
Submit - Sends the updated screen to the switch and causes the changes to take effect
on the switch but these changes will not be retained across a power cycle unless a save is
performed.
Cancel - This resets the page to display the administrative mode that is currently
configured by the selected unit.
11.2.4.1.2. Configuring each Port Access Control Configuration Page
Selection Criteria
Port - Selects the port to be configured. When the selection is changed, a screen refresh
will occur causing all fields to be updated for the newly selected port. All physical
interfaces are valid.
Configurable Data
Control Mode - This selector lists the options for control mode. The control mode is only
set if the link status of the port is link up. The options are:
force unauthorized: The authenticator port access entity (PAE) unconditionally sets the
controlled port to unauthorized
force authorized: The authenticator PAE unconditionally sets the controlled port to
authorized.
auto: The authenticator PAE sets the controlled port mode to reflect the outcome of the
authentication exchanges between the supplicant, authenticator, and the authentication
server.
Quiet Period (secs)- This input field allows the user to configure the quiet period for the
selected port. This command sets the value, in seconds, of the timer used by the
authenticator state machine on this port to define periods of time in which it will not attempt
to acquire a supplicant. The quiet period is the period for which the authenticator does not
attempt to acquire a supplicant after a failed authentication exchange with the supplicant.
The quiet period must be a number in the range of 0 and 65535. A quiet period value of 0
means that the authenticator state machine will never acquire a supplicant. The default
value is 60. Changing the value will not change the configuration until the Submit button is
pressed.
Transmit Period (secs)- This input field allows the user to configure the transmit period
