ACL relative to other ACLs assigned to selected VLAN and direction.
Non-Configurable Data
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
Remove - Removes the currently selected ACL VLAN Direction Mapping from the switch
configuration.

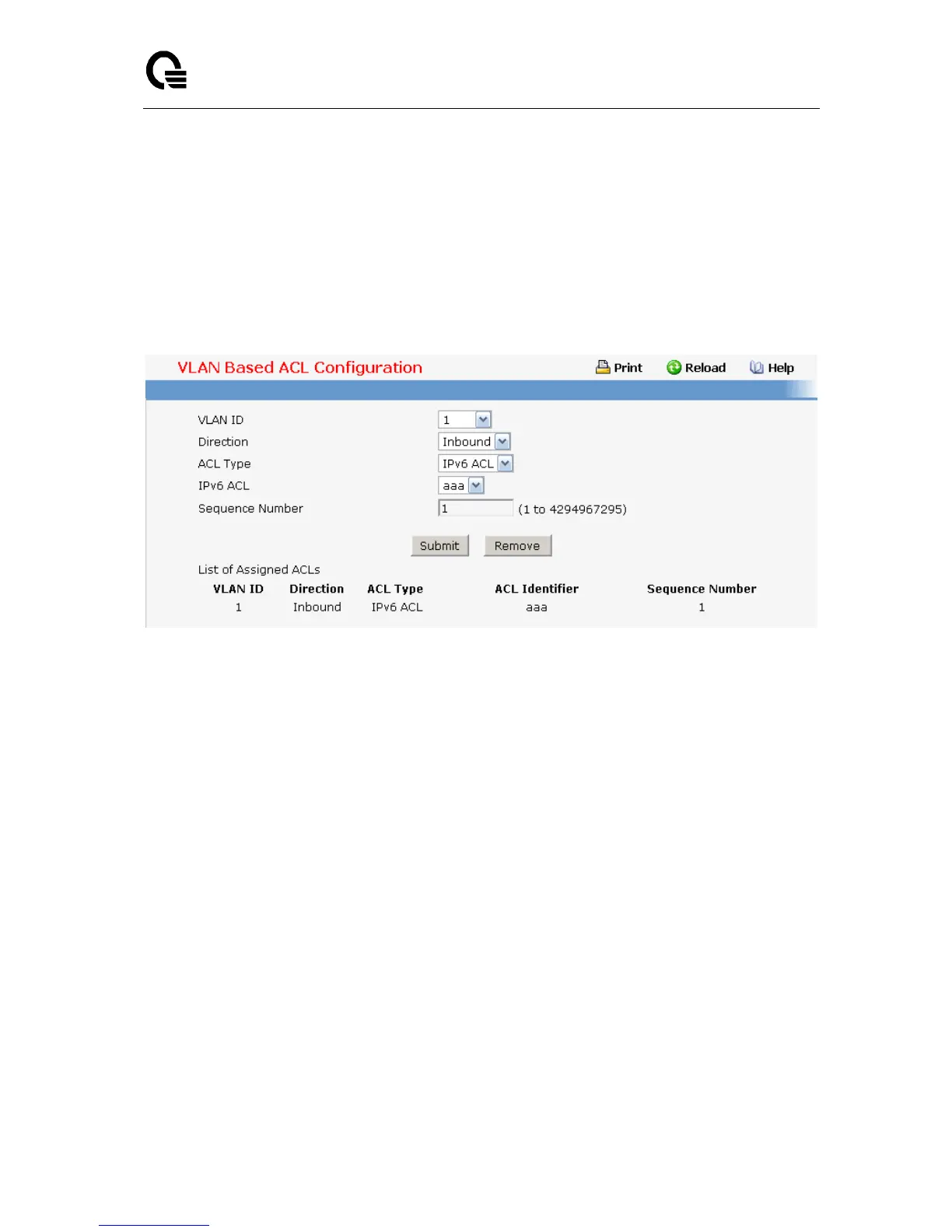

11.2.6.1.12. Access Control List VLAN ACL Summary Page
Non-Configurable Data
Summary Display Selector - Select interface or VLAN to display summary. By default
summary of Interface-based ACL(s) is displayed.
Slot/Port(s) - The interfaces to which the IP ACL applies.
VLAN(s) - VLAN(s) to which the IP ACL applies.
Direction - The direction of packet traffic affected by the IP ACL.
Direction can only be one of the following:
Inbound
ACL Type - Displays the type of ACL assigned to selected VLAN and direction.
ACL Identifier - Displays the ACL Number(in case of IP ACL) or ACL Name(in case of
IPv6 ACL and MAC ACL) identifying the ACL assigned to selected VLAN and direction.
Sequence Number - Displays the Sequence Number signifying the order of specified
ACL relative to other ACLs assigned to selected VLAN and direction.
