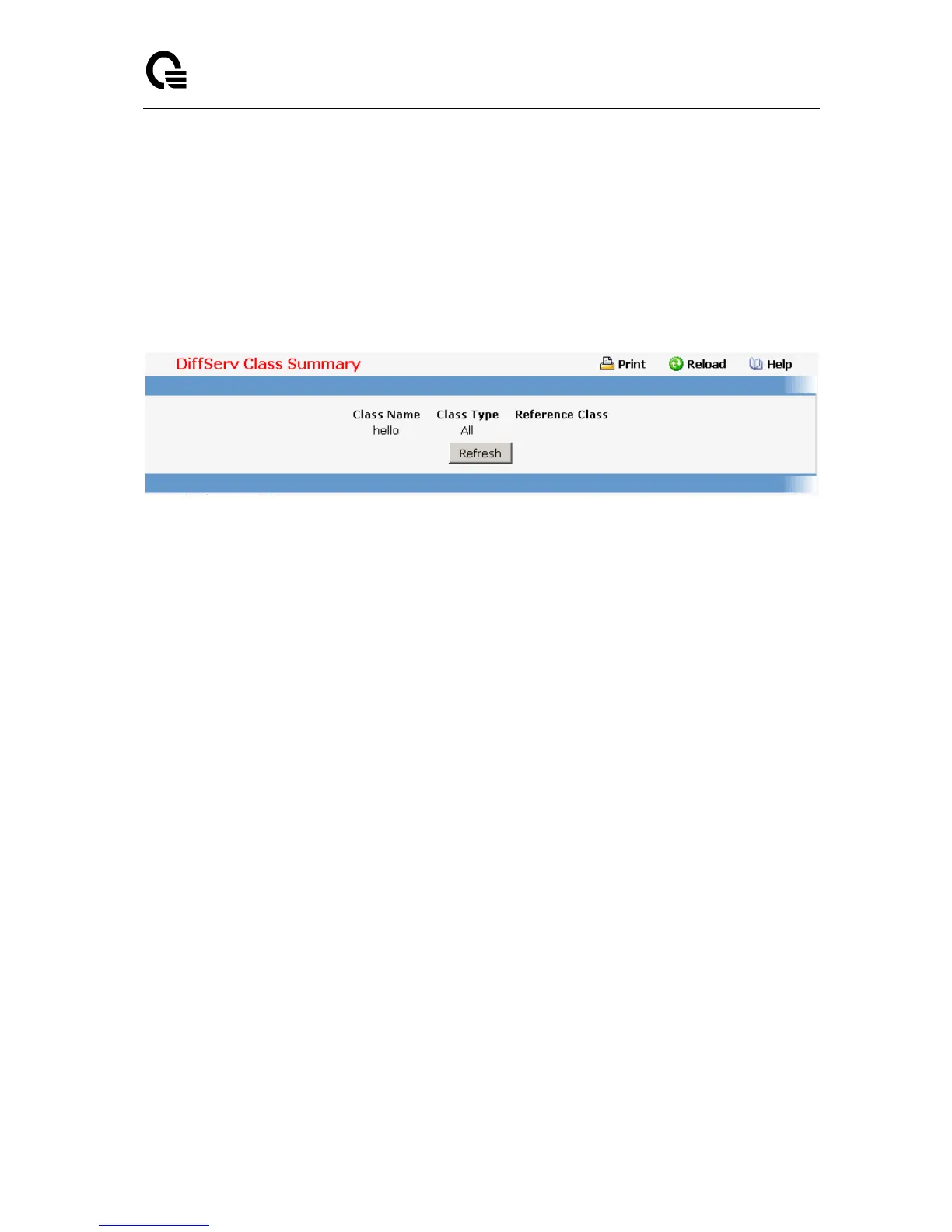

Class Name - Displays names of the configured DiffServ classes.
Class Type - Displays types of the configured classes as 'all', 'any', or 'acl'. Class types
are platform dependent.
Reference Class - Displays name of the configured class of type
All
referenced by the specified class of the same type.
Command Buttons
Refresh - Refresh the currently selected filter.
11.2.6.2.4. DiffServ Policy Configuration Page
Selection Criteria
Policy Selector - Along with an option to create a new policy, this lists all the existing
DiffServ policy names, from which one can be selected. The content of this screen varies
based on the selection of this field. If an existing policy is selected then the screen will
display Member Classes for that DiffServ policy. If 'create' is selected, another screen
appears to facilitate creation of a new policy. The default is 'create'.
Policy Type - In indicates the type is specific to inbound traffic direction. Only when a new
policy is created, this field is a selector field. After policy creation this becomes a
non-configurable field displaying the configured policy type.
Available Class List - This lists all existing DiffServ class names, from which one can be
selected. This field is a selector field only when a new policy class instance is to be
created. After creation of the policy class instance this becomes a non-configurable field.
Member Class List - This lists all existing DiffServ classes currently defined as members
of the specified Policy, from which one can be selected. This list is automatically updated
as a new class is added to or removed from the policy. This field is a selector field only
when an existing policy class instance is to be removed. After removal of the policy class
instance this becomes a non-configurable field.
Configurable Data
Policy Name - This is a case-sensitive alphanumeric string from 1 to 31 characters
uniquely identifying a policy.
Non-Configurable Data
Policy Type - In indicates the type is specific to inbound traffic direction. Only when a new
policy is created, this field is a selector field. After policy creation this becomes a
non-configurable field displaying the configured policy type.
