Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 933/970

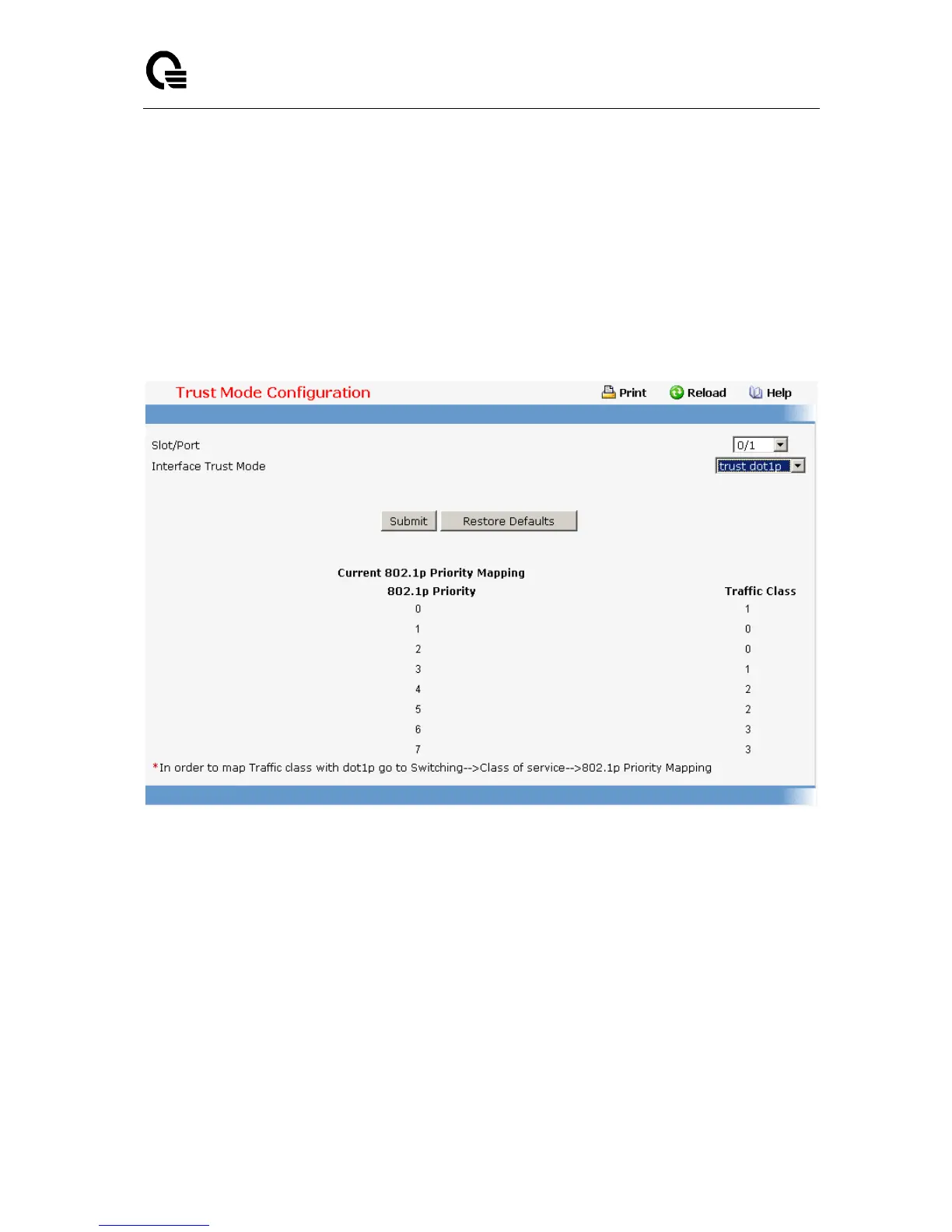

Current 802.1p Priority Mapping - Displays the current 802.1p priority mapping
configuration.
Command Buttons
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
Restore Defaults - Restores default settings.
11.2.6.4.2. Managing DSCP Mapping Configuration Page
Selection Criteria
Slot/Port - Specifies all CoS configurable interfaces. The option "Global" represents the
most recent global configuration settings.
Configurable Data
IP DSCP Value Traffic Class - Specify which internal traffic class to map the
corresponding IP DSCP value. Valid Range is (0 to 7) .
Command Buttons
