Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 950/970

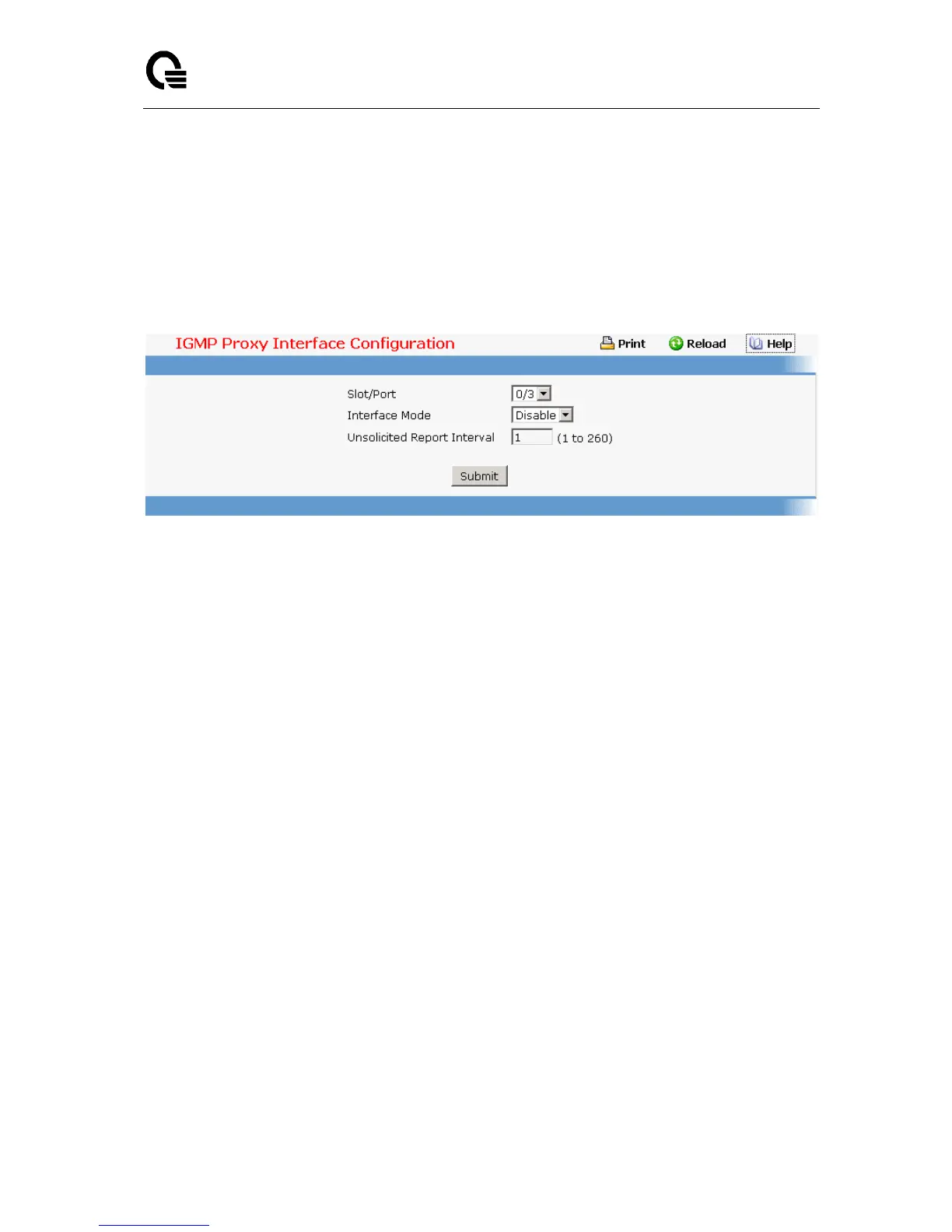

Unsolicited Report Interval - Enter the unsolicited time interval value in seconds. The
Unsolicited Report Interval is the time between repetitions of a host's initial report of
membership in a group. Valid values are from 1 to 260. The default value is 1.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
11.2.7.2.7. Viewing IGMP Proxy Configration Summary Page
Non-Configurable Data
Slot/Port - Displays the interface on which IGMP proxy is enabled.
IP Address - The IP address of the IGMP Proxy interface.
Subnet Mask - The subnet mask for the IP address of the IGMP Proxy interface.
Admin Mode - The administrative status of IGMP Proxy on the selected interface.
Operational Mode - The operational state of IGMP Proxy interface.
Number of Groups - The current number of multicast group entries for the IGMP Proxy
interface in the cache table.
Version - The version of IGMP configured on the IGMP Proxy interface.
Unsolicited Report Interval - The Unsolicited Report Interval is the time between
repetitions of a host's initial report of membership in a group. Default: 1 second. cache
table.
Version 1 Querier Timeout - The older IGMP version 1 querier timeout value in seconds.
The Older Version Querier Interval is the time-out for transitioning a host back to IGMPv3
mode once an older version query is heard. When an older version query is received,
hosts set their Older Version Querier Present Timer to Older Version Querier Interval.
