Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 952/970
Refresh - Refresh the data on the screen with the present state of the data in the router.

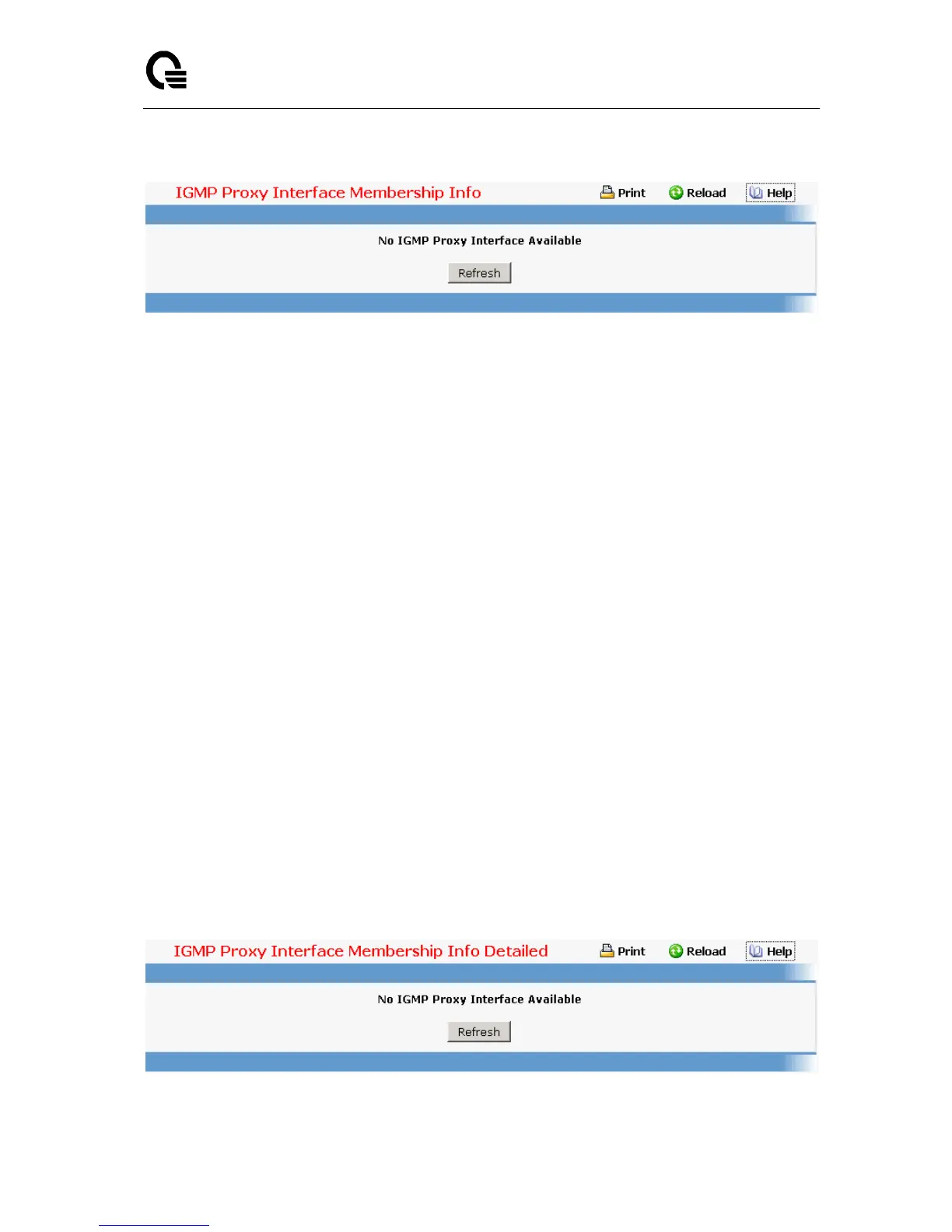

11.2.7.2.9. Viewing IGMP Proxy Interface Membership Details Information Page
Selection Criteria
Multicast Group IP - Select the IP multicast group address for which data is to be
displayed. If no group membership reports have been received on the IGMP Proxy
interface you will not be able to make this selection, and none of the non-configurable data
will be displayed.
Non-Configurable Data
Slot/Port - Displays the interface on which IGMP proxy is enabled.
Source IP - This parameter shows source addresses which are members of this multicast
address.
Last Reporter - The IP address of the source of the last membership report received for
the IP Multicast group address on the selected interface.
Up Time - Displays the up time since the entry was created in cache table.
State - The state of the host entry. A Host can be in one of the state. Non-member state -
does not belong to the group on the interface. Delaying member state - host belongs to the
group on the interface and report timer running. The report timer is used to send out the
reports. Idle member state - host belongs to the group on the interface and no report timer
running.
Filter Mode - The group filter mode (Include/Exclude/None) for the specified group on the
IGMP Proxy interface.
