Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 954/970

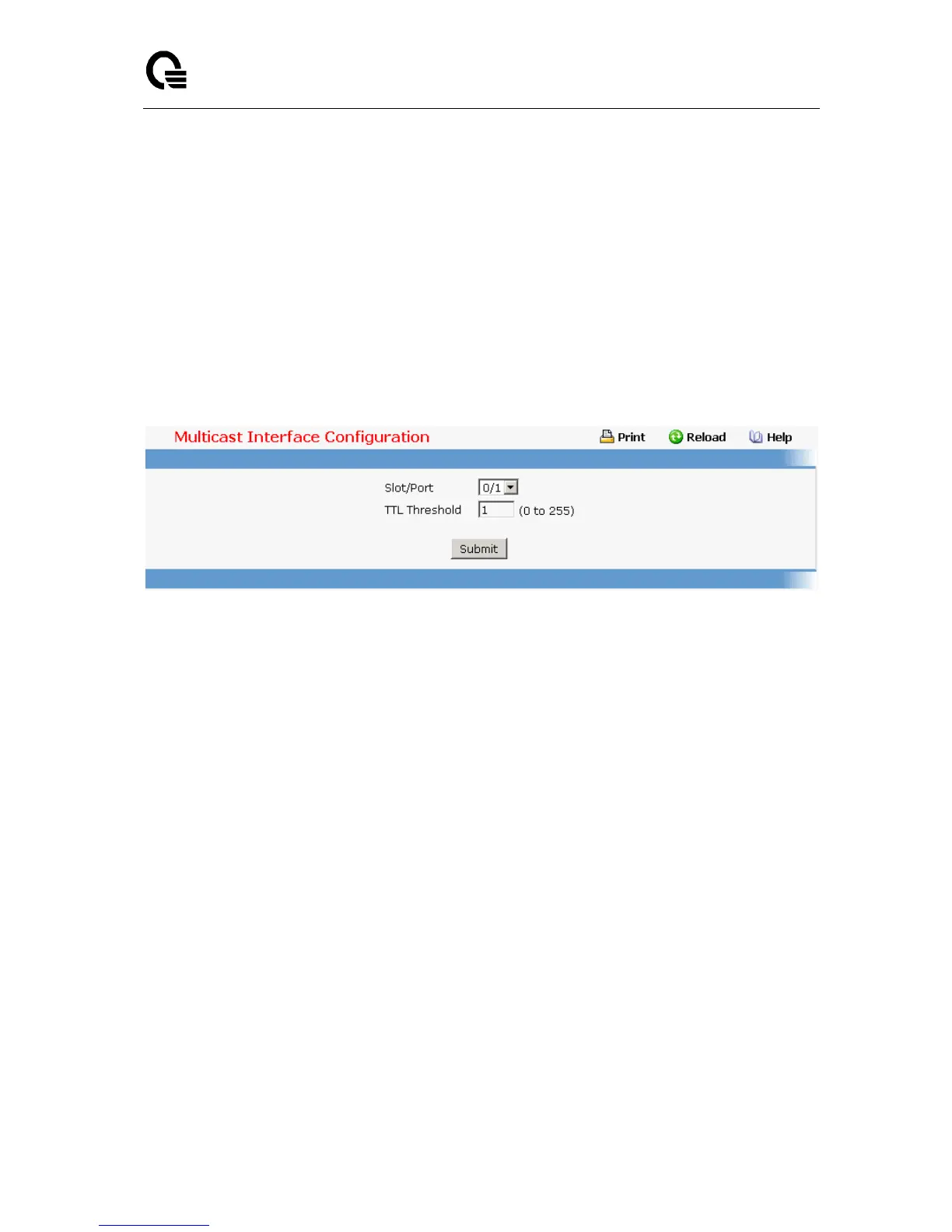

11.2.7.3.2. Configuring Interface’s Multicast Configuration Page
Selection Criteria
Slot/Port - Select the routing interface you want to configure from the dropdown menu.
Configurable Data
TTL Threshold - Enter the TTL threshold below which a multicast data packet will not be
forwarded from the selected interface. You should enter a number between 0 and 255. If
you enter 0 all multicast packets for the selected interface will be forwarded. You must
configure at least one router interface before you will see this field.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
11.2.7.3.3. Viewing Multicast MRoute Summary Page
This screen displays selected contents of the Mroute Table in tabular form. If there are no
routes in the table you will not be presented with the Selection Criteria.
Non-Configurable Data
Source IP - Enter the IP address of the multicast packet source to be combined with the
Group IP to fully identify a single route whose Mroute table entry you want to display or
clear. You may leave this field blank.
Group IP - Enter the destination group IP address whose multicast route(s) you want to
display or clear.
Incoming Interface - The incoming interface on which multicast packets for this
source/group arrive.
Outgoing Interface(s) - The list of outgoing interfaces on which multicast packets for this
source/group are forwarded.
Up Time (secs)- The time in seconds since the entry was created.
Expiry Time (secs)- The time in seconds before this entry will age out and be removed
from the table.
RPF Neighbor - The IP address of the Reverse Path Forwarding neighbor.
Protocol - The multicast routing protocol which created this entry. The possibilities are:
PIM-DM
