Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 955/970

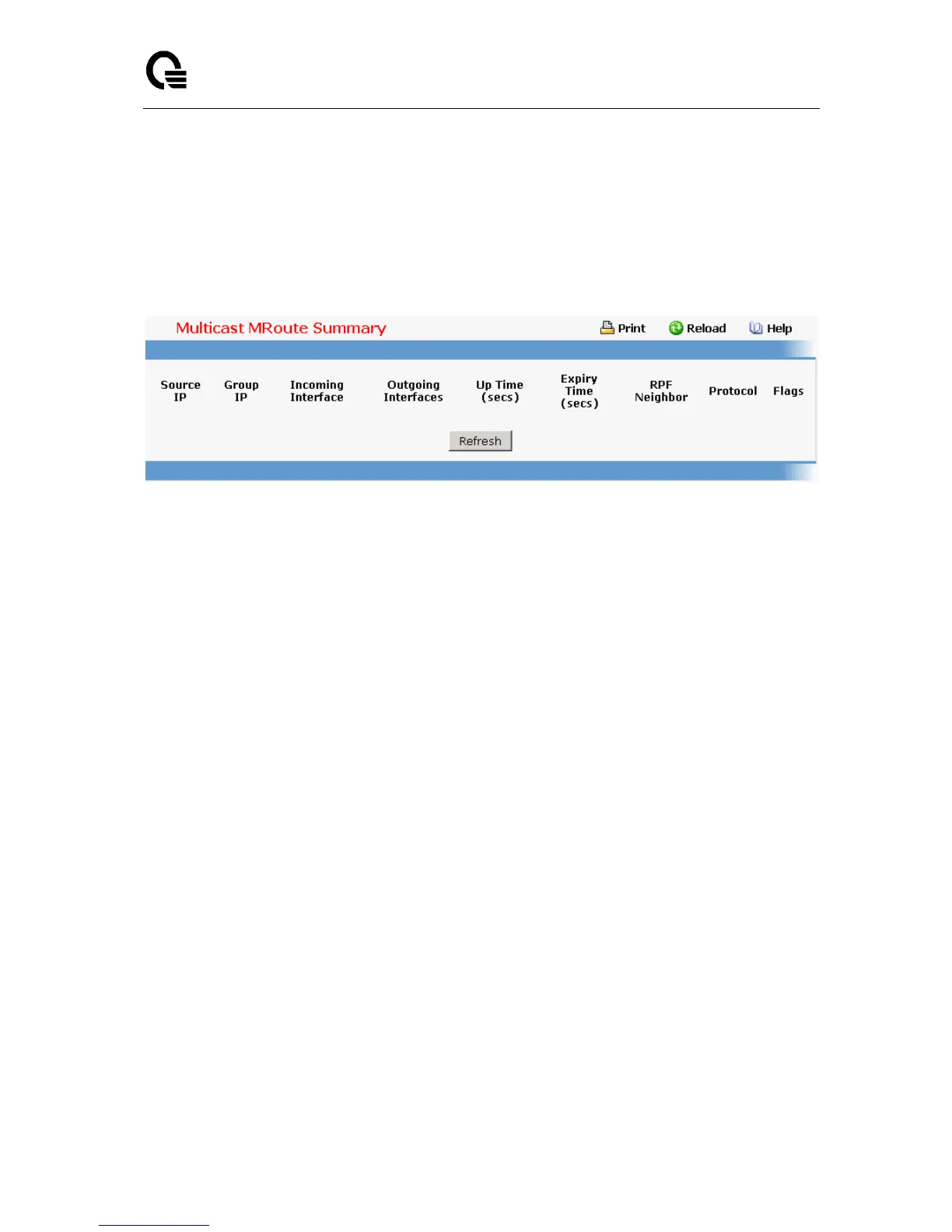

PIM-SM
DVMRP
Flags - The value displayed in this field is valid if the multicast routing protocol running is
PIMSM. The possible values are RPT or SPT. For other protocols a "------" is displayed.
Command Buttons
Refresh - Refresh the information on the screen with the present state of the data in the
router.
11.2.7.3.4. Configuring Multicast Static Routes Configuration Page
Selection Criteria
Source - Select Create Static Route to configure a new static entry in the MRoute table, or
select one of the existing entries from the pulldown menu.
Configurable Data
Source IP - Enter the IP Address that identifies the multicast packet source for the entry
you are creating.
Source Mask - Enter the subnet mask to be applied to the Source IP address.
RPF Neighbor - Enter the IP address of the neighbor router on the path to the source.
Metric - Enter the link state cost of the path to the multicast source. The range is 0 - 255
and the default is one. You can change the metric for a configured route by selecting the
static route and editing this field.
Slot/Port - Select the interface number from the dropdown menu. This is the interface that
connects to the neighbor router for the given source IP address.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
Delete - Delete the static entry with the selected Source IP address from the MRoute
table.
