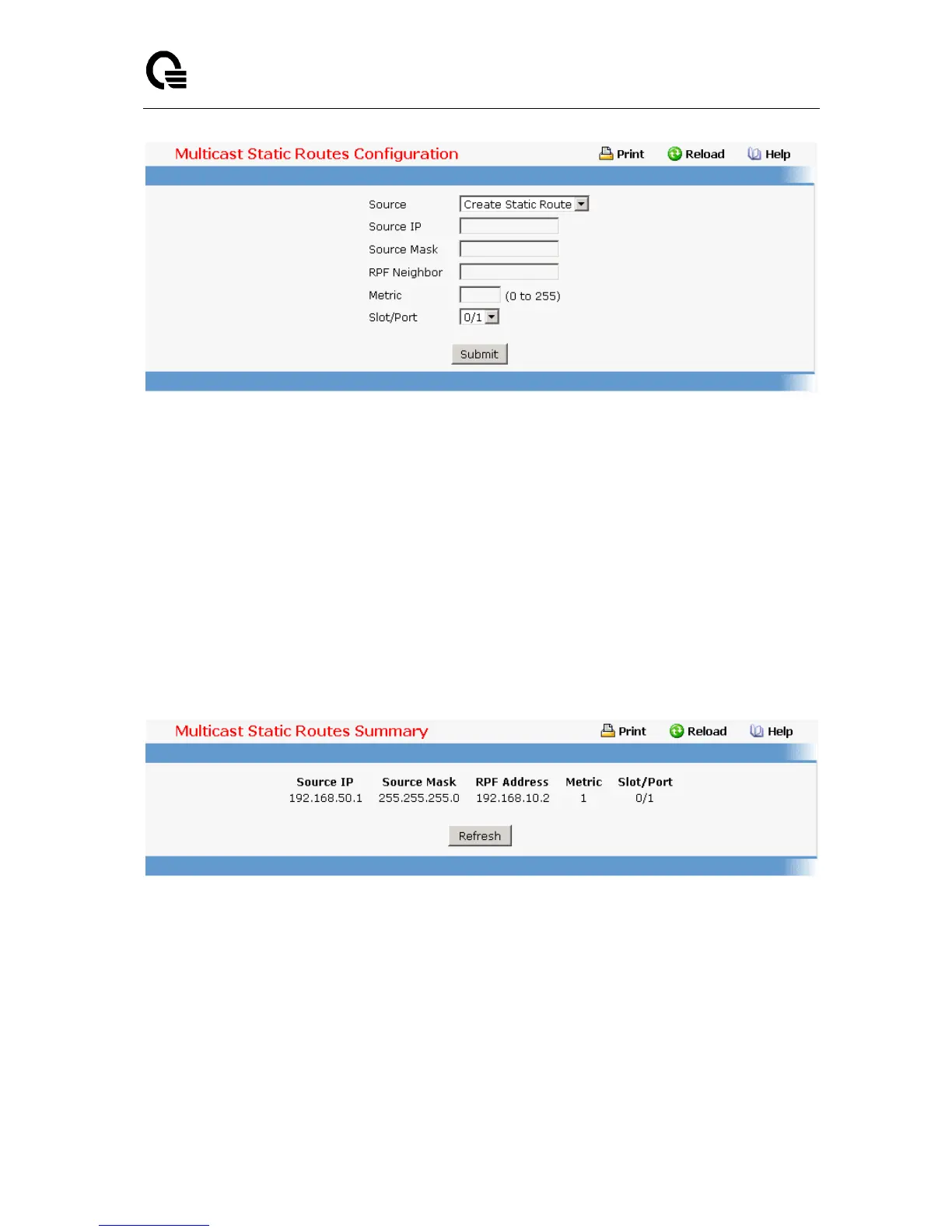

11.2.7.3.5. Viewing Multicast Static Routes Configuration Page
Non-Configurable Data
Source IP - The IP Address that identifies the multicast packet source for this route.
Source Mask - The subnet mask applied to the Source IP address.
RPF Address - The IP address of the RPF neighbor.
Metric - The link state cost of the path to the multicast source. The range is 0 - 255.
Slot/Port - The number of the incoming interface whose IP address is used as RPF for the
given source IP address.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
11.2.7.3.6. Configuring Multicast Admin Boundary Configuration Page
The definition of an administratively scoped boundary is a mechanism is a way to stop the
ingress and egress of multicast traffic for a given range of multicast addresses on a given
routing interface.
Selection Criteria
Group IP - Select 'Create Boundary' from the pulldown menu to create a new admin scope
boundary, or select one of the existing boundary specifications to display or update its
configuration.
