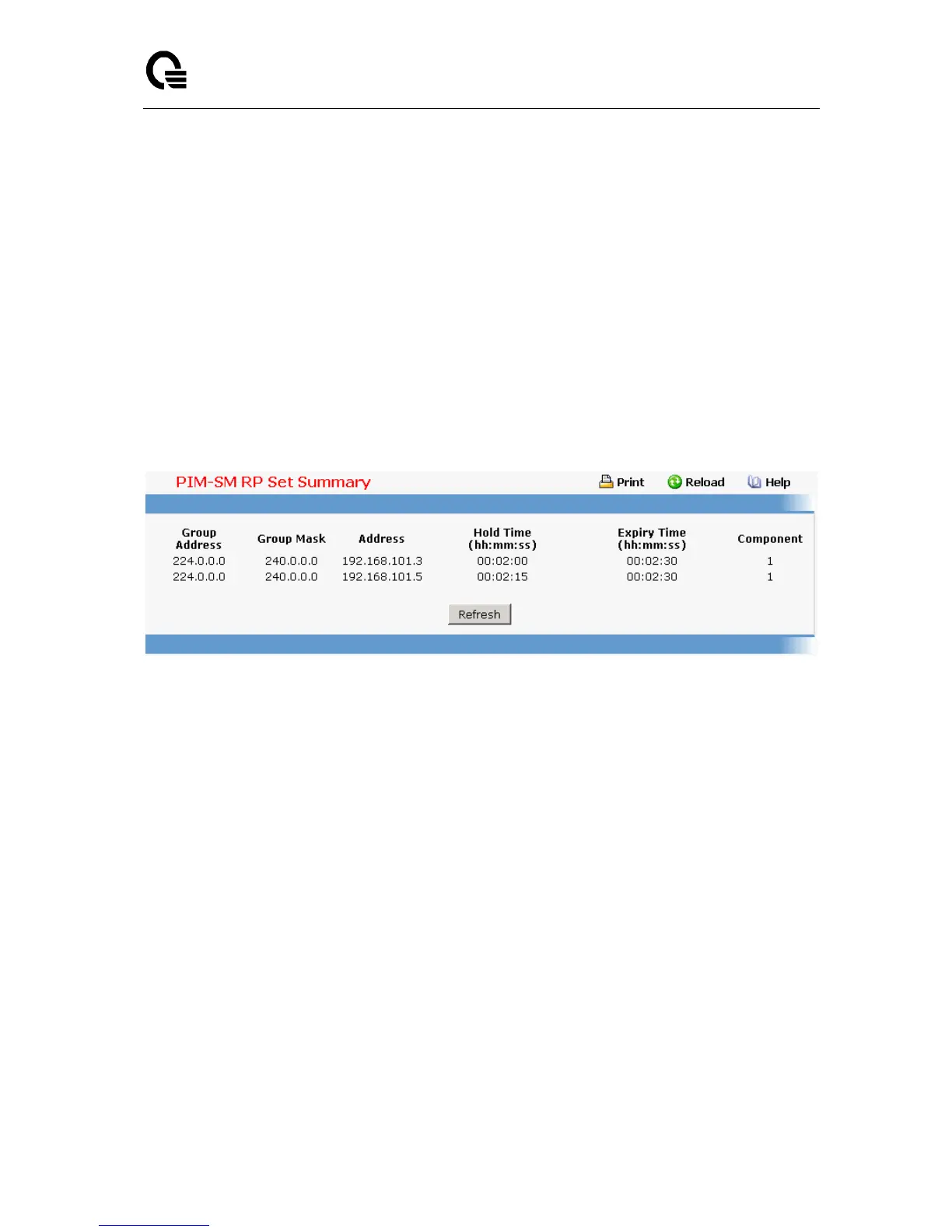

11.2.7.6.6. Viewing PIM-SM RP Summary Page
Non-Configurable Data
Group Address - Displays IP multicast group address.
Group Mask - Displays Multicast group address mask.
Address - Displays IP address of the Candidate-RP.
Hold Time - The holdtime of a Candidate-RP.If the local router is not the BSR, this value is
0.
Expiry Time Component - The minimum time remaining before the Candidate-RP will be
declared.
Component – A number which uniquely identifies the component. Each protocol instance
connected to a separate domain should have a different index value.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
11.2.7.6.7. Viewing PIM-SM Candidate RP Summary Page
Non-Configurable Data
Group Address - The group address transmitted in Candidate-RP-Advertisements.
Group Mask - The group address mask transmitted in Candidate-RP-Advertisements to
fully identify the scope of the group which the router will support if elected as a
Rendezvous Point.
Address - Displays the unicast address of the interface which will be advertised as a
Candidate RP.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
