Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 842/970
This button is only selectable if the control mode is 'auto'. If the button is not selectable, it
will be grayed out. Once this button is pressed, the action is immediate. It is not required to
press the Submit button for the action to occur.
Submit - Sends the updated screen to the switch and causes the changes to take effect
on the switch but these changes will not be retained across a power cycle unless a save is
performed.
Refresh - Update the information on the page.

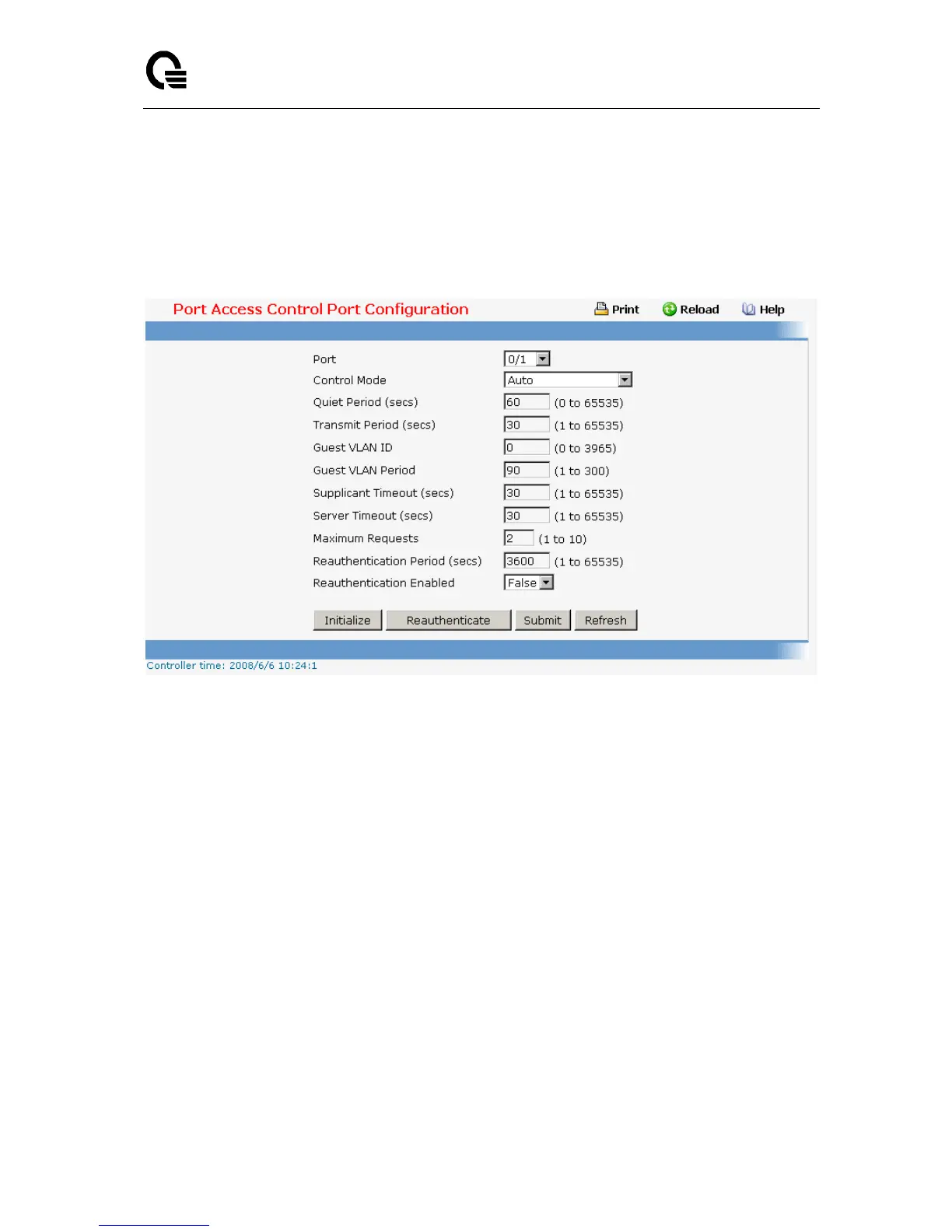

11.2.4.1.3. Viewing each Port Access Control Configuration Information Page
Selection Criteria
Port - Selects the port to be displayed. When the selection is changed, a screen refresh
will occur causing all fields to be updated for the newly selected port. All physical
interfaces are valid.
Non-Configurable Data
Control Mode - Displays the configured control mode for the specified port. Options are:
force unauthorized: The authenticator port access entity (PAE) unconditionally sets
the controlled port to unauthorized
force authorized: The authenticator PAE unconditionally sets the controlled port to
authorized.
auto: The authenticator PAE sets the controlled port mode to reflect the outcome of
the authentication exchanges between the supplicant, authenticator, and the
authentication server.
Quiet Period(secs) - This field displays the configured quiet period for the selected port.
This quiet period is the value, in seconds, of the timer used by the authenticator state
