UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 918/970

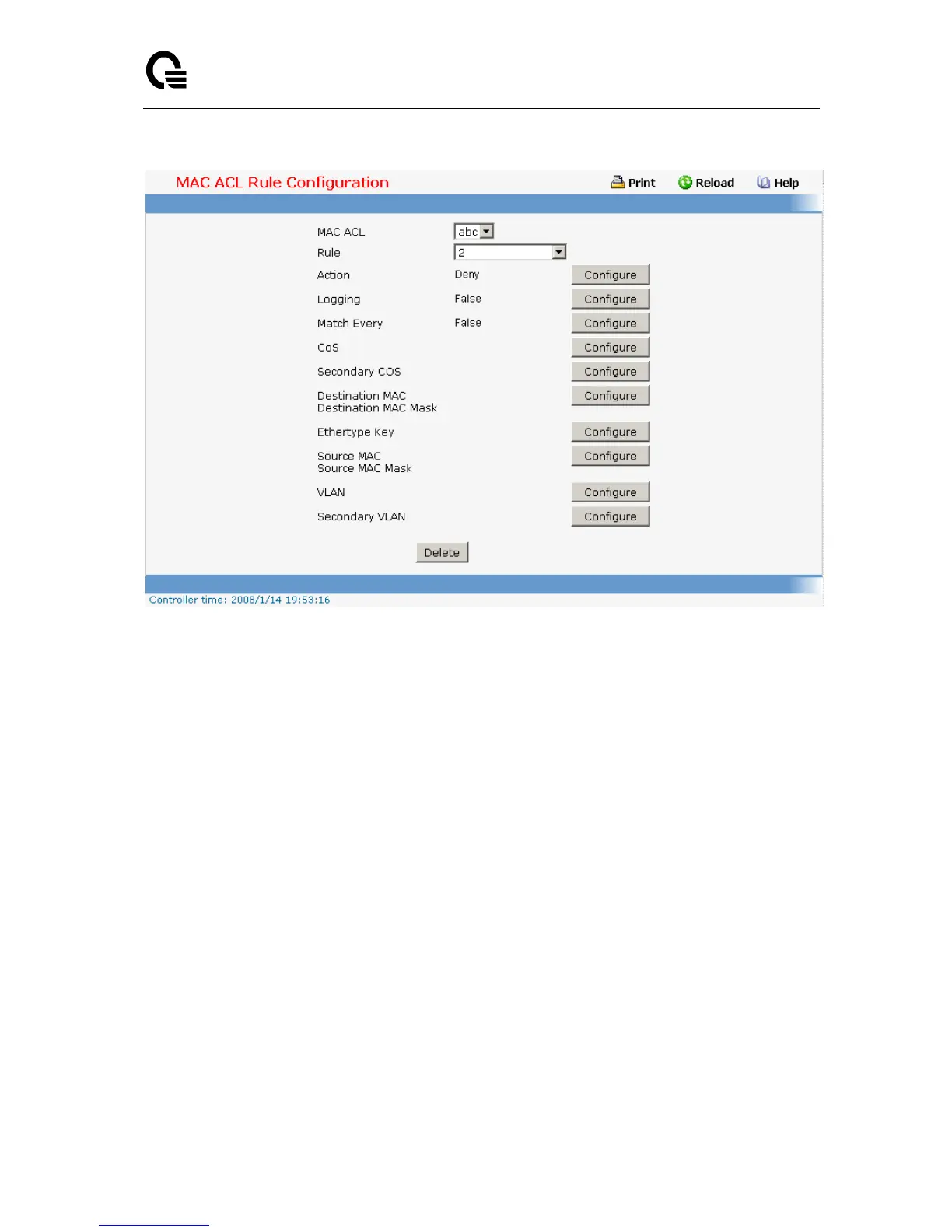

11.2.6.1.10. Configuring Access Control List Interface Configuration Page
Configurable Data
Slot/Port - Specifies list of all available valid interfaces for ACL mapping. All non-routing
physical interfaces and interfaces participating in LAGs are listed.
Direction - Specifies the packet filtering direction for ACL.
Valid Directions
 Inbound
ACL Type - Specifies the type of ACL.
Valid ACL Types
 IP ACL
 MAC ACL
IP ACL - Specifies list of all IP ACLs. This field is visible only if the user has selected "IP
ACL" as "ACL Type".
IPv6 ACL - Specifies list of all IPv6 ACLs. This field is visible only if the user has selected
"IPv6 ACL" as "ACL Type".
MAC ACL - Specifies list of all MAC ACLs. This field is visible only if the user has
