UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 927/970
Policy Type - Displays type of the policy as 'In'.
Member Classes - Displays name of each class instance within the policy.
Command Buttons
Refresh – Refresh the currently selected filter.

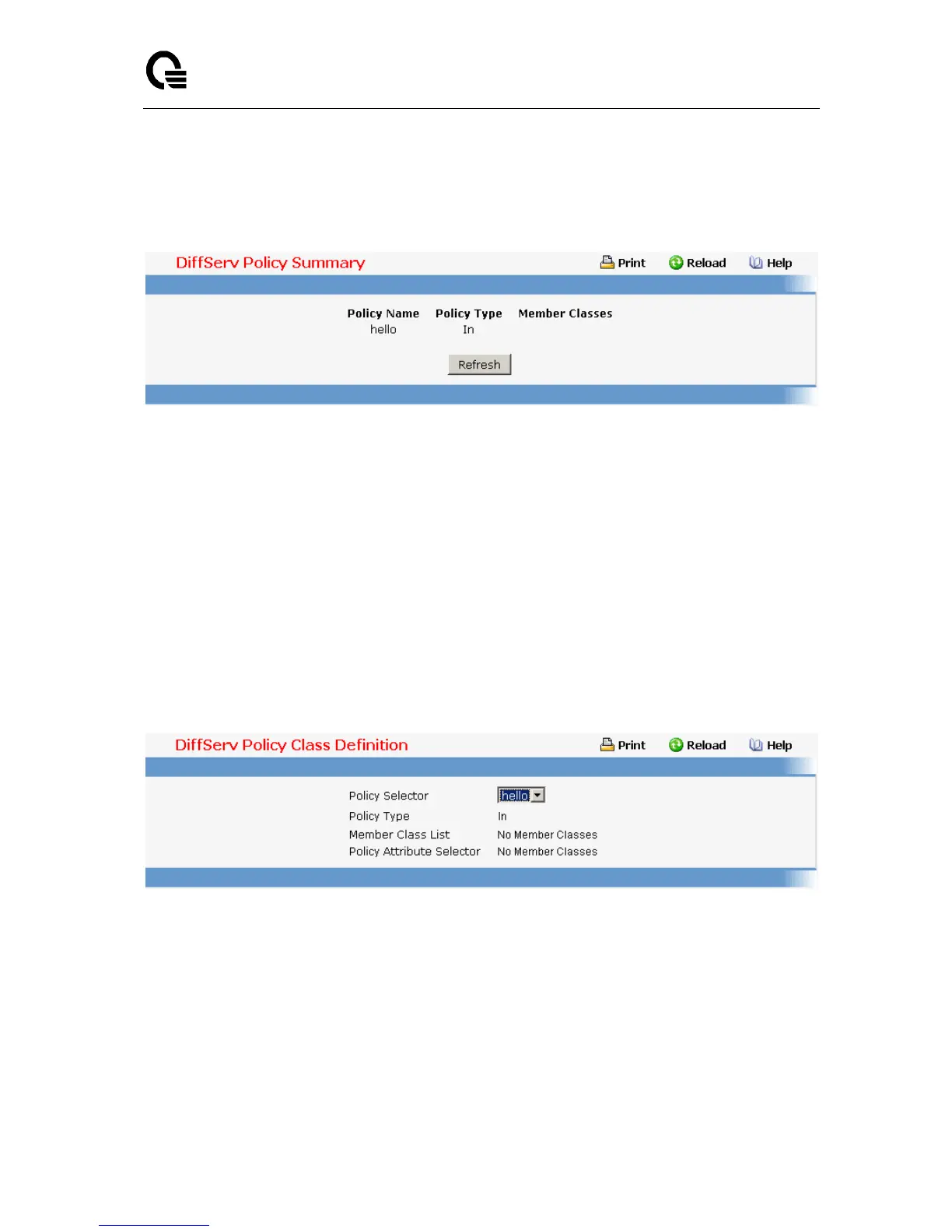

11.2.6.2.6. Configuring DiffServ Policy Class Definition Page
Selection Criteria
Policy Selector - This lists all the existing DiffServ policy names, from which one can be
selected.
Member Class List - This lists all existing DiffServ classes currently defined as members
of the specified Policy, from which one can be selected. This list is automatically updated
as a new class is added to or removed from the policy.
Policy Attribute Selector - This lists all attributes supported for this type of policy, from
which one can be selected.
Non-Configurable Data
Policy Type - Displays type of the configured policy as 'In'.
11.2.6.2.7. Viewing DiffServ Policy Attribute Summary Page
Non-Configurable Data
Policy Name - Displays name of the specified DiffServ policy.
Policy Type - Displays type of the specified policy as 'In’ or 'Out'.
Class Name - Displays name of the DiffServ class to which this policy is attached.
Attribute - Displays the attributes attached to the policy class instances.
