Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 928/970

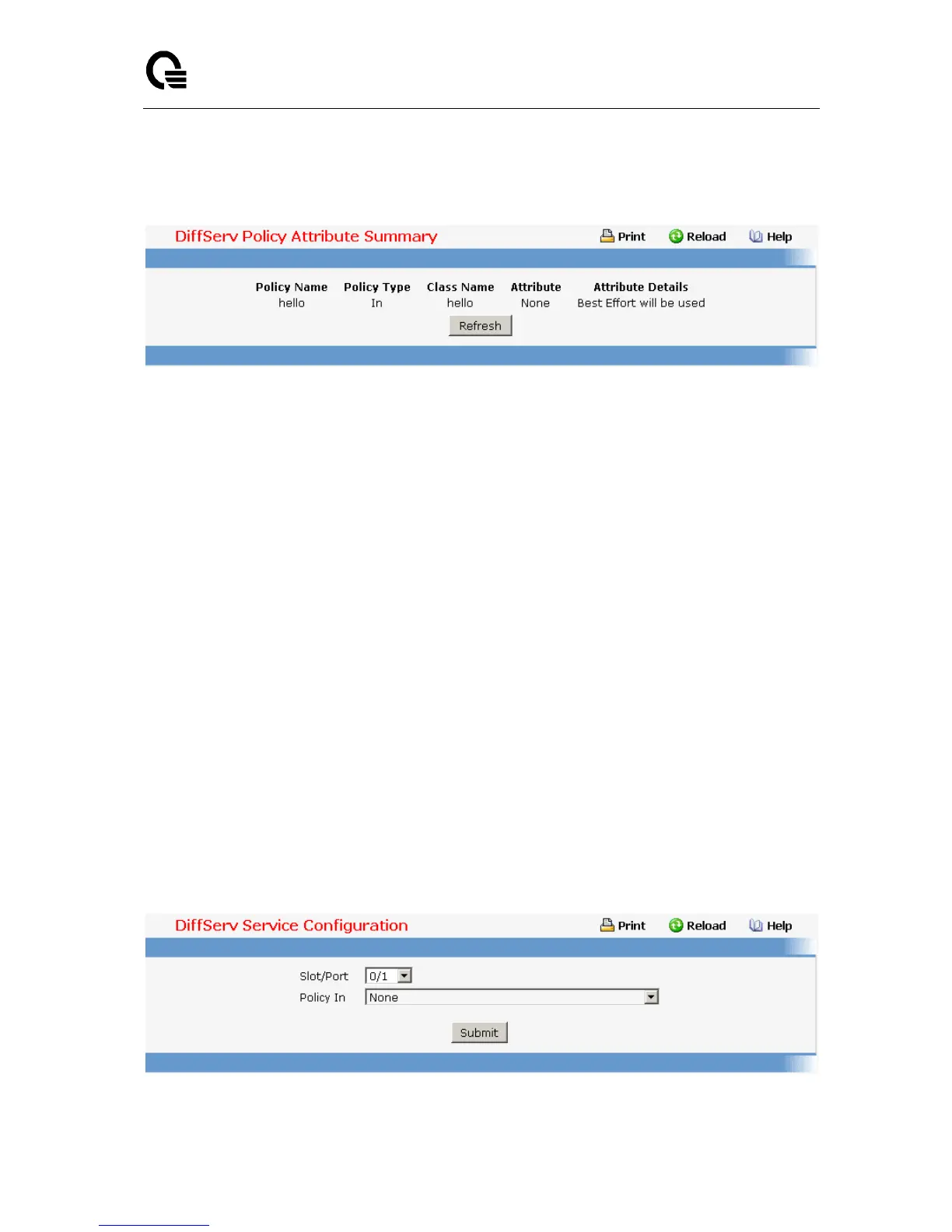

Attribute Details - Displays the configured values of the attached attributes.
Command Buttons
Refresh - Refresh the displayed data.
11.2.6.2.8. Configuring DiffServ Service Configuration Page
Selection Criteria
Slot/Port - Select the Slot/Port that uniquely specifies an interface. This is a list of all valid
slot number and port number combinations in the system. For Read/Write users where 'All'
appears in the list, select it to specify all interfaces.
Direction - Select the traffic direction of this service interface. This selection is only
available to Read/Write users when Slot/Port is specified as 'All'.
Configurable Data
Policy In - This lists all the policy names of type 'In' from which one can be selected. If
'none' is selected, this will detach the policy from the interface in this direction. This field is
not shown for Read/Write users where inbound service policy attachment is not supported
by the platform.
Non-Configurable Data
This information is only displayed when Slot/Port is specified as 'All'.
Slot/Port - Shows the Slot/Port that uniquely specifies an interface.
Direction - Shows the traffic direction of this service interface.
Operational Status - Shows the operational status of this service interface, either Up or
Down.
Policy Name - Shows the name of the attached policy.
