Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 935/970

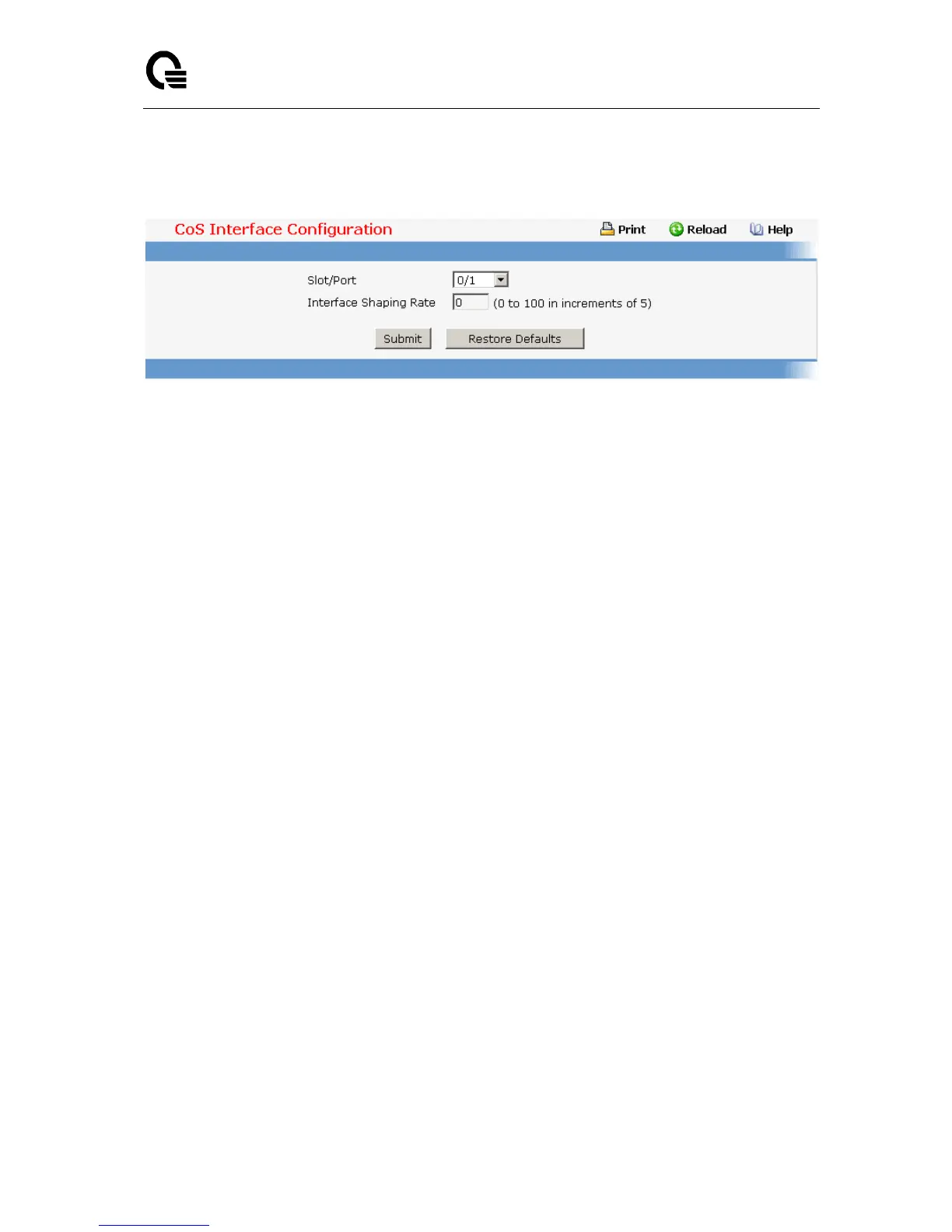

Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
11.2.6.4.4. Configuring CoS interface queue
Selection Criteria
Slot/Port - Specifies all CoS configurable interfaces. The option "Global" represents the
most recent global configuration settings. These may be overridden on a per-interface
basis.
Queue ID - Specifies all the available queues per interface(platform based).
Scheduler Type - Specifies the type of scheduling used for this queue.
Scheduler Type can only be one of the following:

strict

weighted
Default value is weighted.
Queue Management Type - Queue depth management technique used for queues on
this interface. This is only used if device supports independent settings per-queue.
Queue Management Type can only be:

taildrop
Default value is taildrop.
Configurable Data
Minimum Bandwidth - Specifies the minimum guaranteed bandwidth allotted to this
queue. Setting this value higher than its corresponding Maximum Bandwidth
automatically increases the maximum to the same value. Default value is 0. Valid Range
is (0 to 100) in increments of 5 . The value 0 means no guaranteed minimum. Sum of
individual Minimum Bandwidth values for all queues in the selected interface cannot
exceed defined maximum (100).
