Enhanced Serial Communication Interface (eSCI)
MPC5566 Microcontroller Reference Manual, Rev. 2
Freescale Semiconductor 21-29
21.4.5.5.1 Slow Data Tolerance

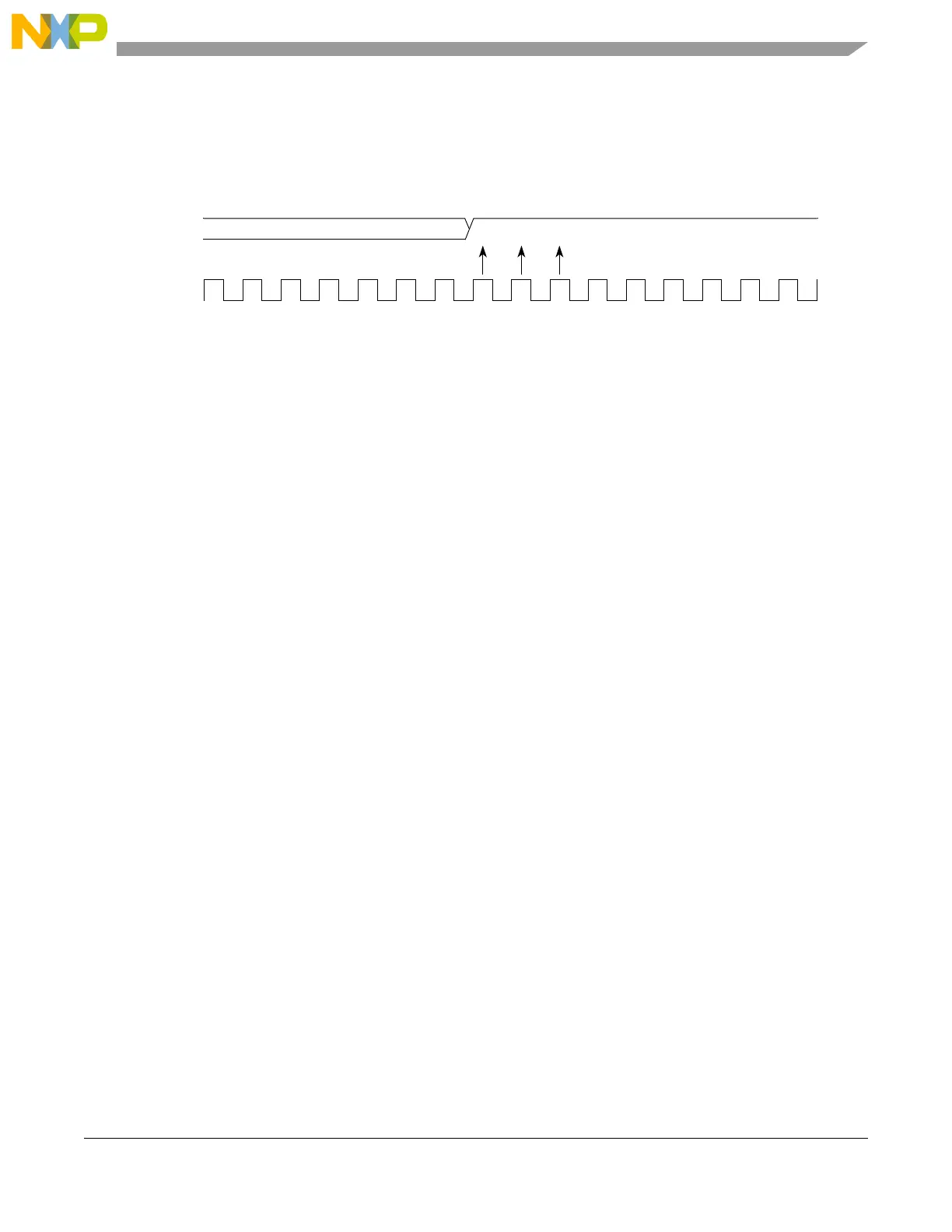

Figure 21-19 shows how much a slow received frame can be misaligned without causing a noise error or
a framing error. The slow stop bit begins at RT8 instead of RT1 but arrives in time for the stop bit data
samples at RT8, RT9, and RT10.
Figure 21-19. Slow Data
For an 8-bit data character, data sampling of the stop bit takes the receiver RT clock 151 clock cycles, as
is shown below:
With the misaligned character shown in Figure 21-19, the receiver counts 151 RT cycles at the point when
the count of the transmitting device is 9 bit times x 16 RT cycles = 147 RT cycles.
The maximum percent difference between the receiver count and the transmitter count of a slow 8-bit data
character with no errors is 4.63%, as is shown below:
For a 9-bit data character, data sampling of the stop bit takes the receiver 167 RT cycles, as is shown below:
With the misaligned character shown in Figure 21-19, the receiver counts 167 RT cycles at the point when
the count of the transmitting device is 10 bit times x 16 RT cycles = 160 RT cycles.
The maximum percent difference between the receiver count and the transmitter count of a slow 9-bit
character with no errors is 4.19%, as is shown below:
RT1
Receiver
RT clock
RT2 RT3 RT4 RT5 RT6 RT7 RT8 RT9 RT10 RT11 RT12 RT13 RT14 RT15 RT16
MSB STOP
Data samples
9 bit times 16 RT cycles 7 RT cycles+× 151 RT cycles=
151 – 144
151
--------------------------
100× 4.63%=
10 bit times 16 RT cycles 7 RT cycles+× 167 RT cycles =
167 – 160
167
--------------------------
100× 4.19%=
