20.4.7.2 Classic SPI Transfer Format (CPHA = 1)
This transfer format shown in Figure 20-35 is used to communicate with peripheral SPI slave devices that
require the first SCKx edge before the first data bit becomes available on the slave SOUT pin. In this
format the master and slave devices change the data on their SOUTx pins on the odd-numbered SCKx
edges and sample the data on their SINx pins on the even-numbered SCKx edges.

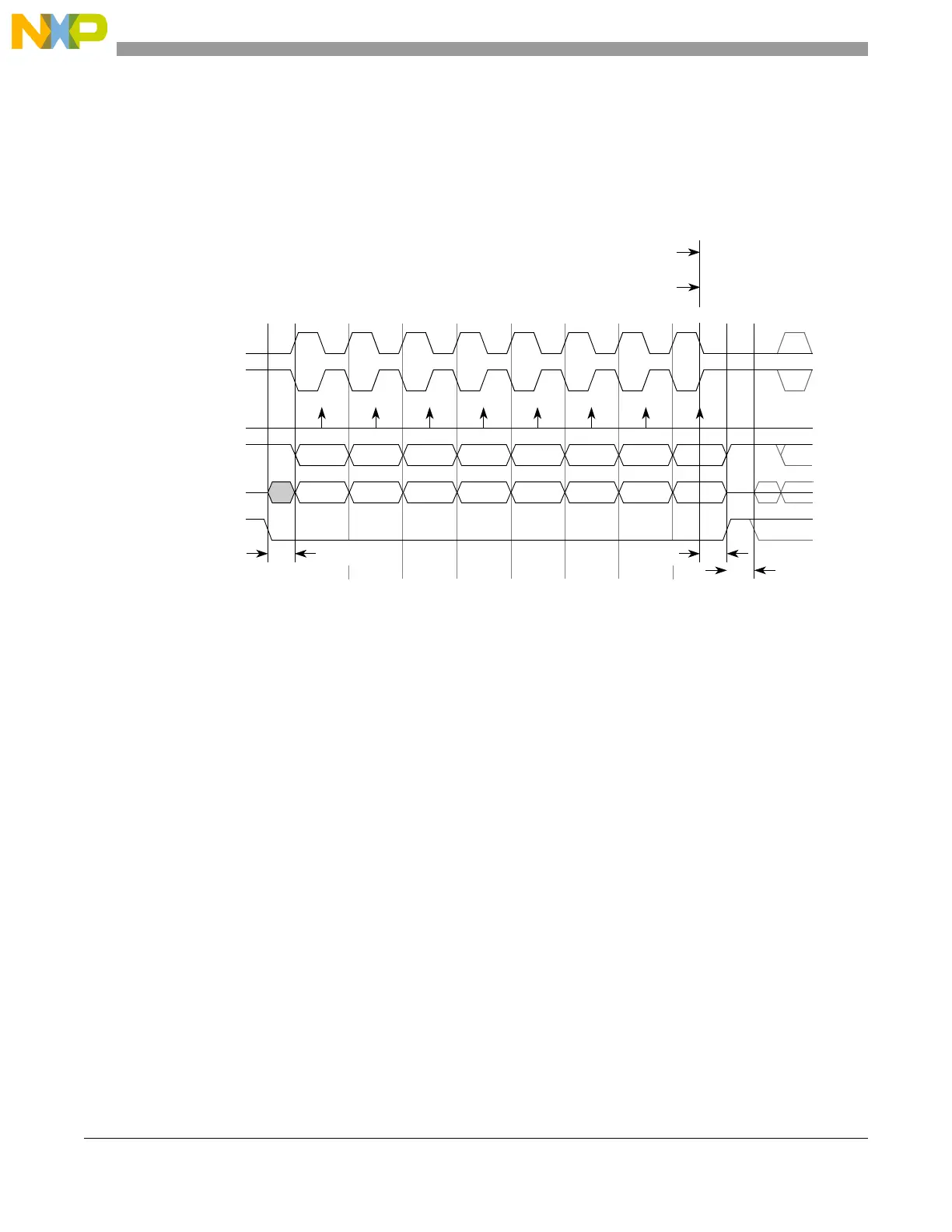

Figure 20-35. DSPI Transfer Timing Diagram (MTFE = 0, CPHA = 1, FMSZ = 8)
The master initiates the transfer by asserting the PCSx signal to the slave. After the t
CSC
delay has elapsed,
the master generates the first SCKx edge and at the same time places valid data on the master SOUTx pin.
The slave responds to the first SCKx edge by placing its first data bit on its slave SOUTx pin.
At the second edge of the SCKx the master and slave sample their SINx pins. For the rest of the frame the
master and the slave change the data on their SOUTx pins on the odd-numbered clock edges and sample
their SINx pins on the even-numbered clock edges. After the last clock edge occurs a delay of t
ASC
is
inserted before the master negates the PCSx signal. A delay of t
DT
is inserted before a new frame transfer
can be initiated by the master.
For CPHA = 1 the master EOQF and TCF and slave TCF are set at the last serial clock edge (edge 16) of
Figure 20-35. For CPHA = 1 the master and slave RXCTR counters are updated on the same clock edge.
Slave (CPHA = 1): TCF is set and RXCTR counter is updated at
last SCK edge of frame (edge 16)
SCK
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
(CPOL = 0)
PCSx / SS
t
ASC
SCK
(CPOL = 1)
Master and slave
sample
Master SOUT/
Slave SIN
Master SIN/
Slave SOUT
Bit 6
Bit 1
Bit 5
Bit 2
Bit 4
Bit 3
Bit 3
Bit 4
Bit 2
Bit 5
Bit 1
Bit 6
LSB
MSB
MSB
LSB
t
DT
t
CSC
MSB first (LSBFE = 0):
LSB first (LSBFE = 1):
t
CSC
= PCS to SCK delay.
t
ASC
= After SCK delay.
t
DT
= Delay after transfer (minimum CS negation time).
Master (CPHA = 1): TCF and EOQF are set and RXCTR counter
is updated at last SCK edge of frame (edge 16)
16
