Deserial Serial Peripheral Interface (DSPI)
MPC5566 Microcontroller Reference Manual, Rev. 2
Freescale Semiconductor 20-55

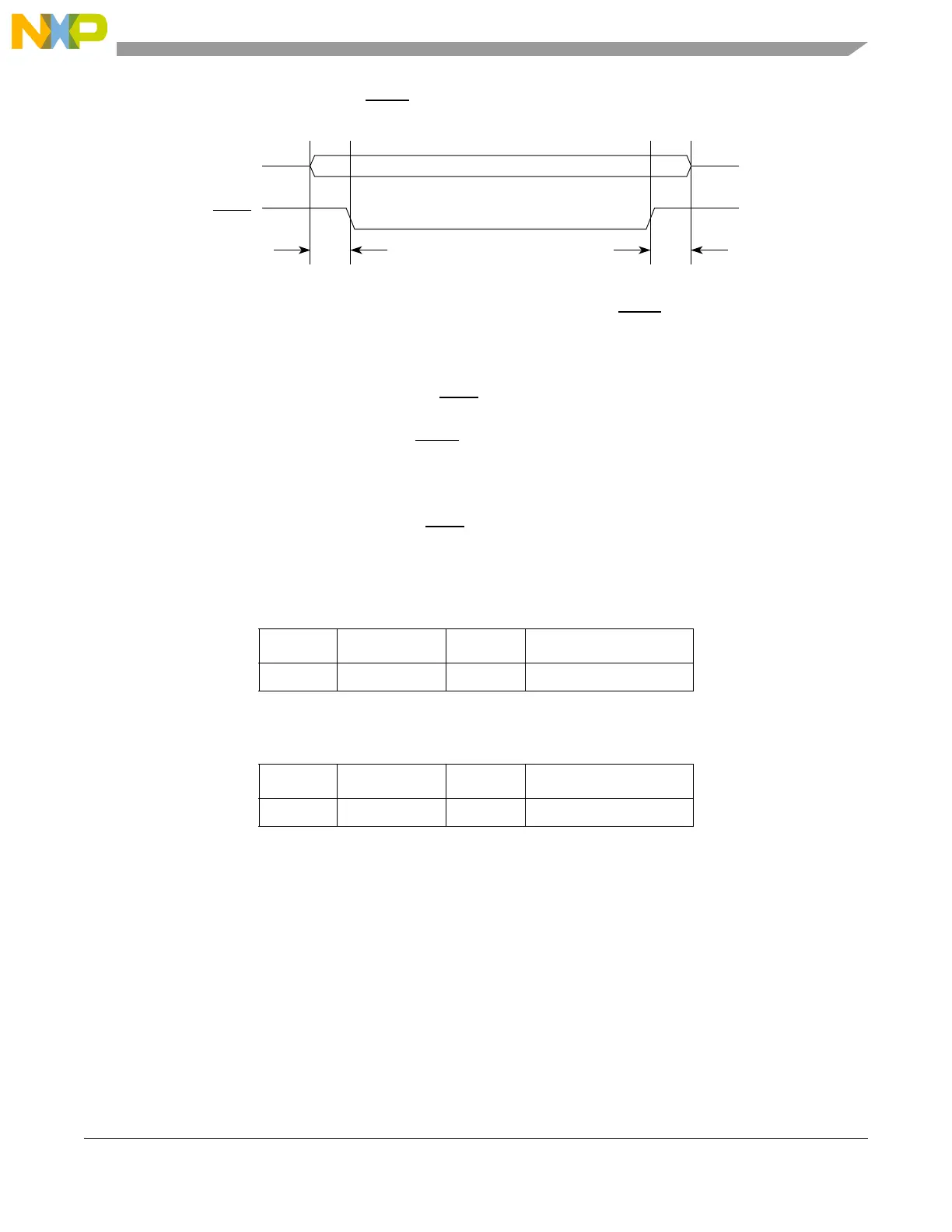

Figure 20-33 shows the timing of the PCSS signal relative to PCS signals.
Figure 20-33. Peripheral Chip Select Strobe Timing
The delay between the assertion of the PCSx signals and the assertion of PCSS is selected by the PCSSCK
field in the DSPIx_CTAR based on the following formula:
At the end of the transfer the delay between PCSS negation and PCSx negation is selected by the PASC
field in the DSPIx_CTAR based on the following formula:
Table 20-27 shows an example of the computed t
PCSSCK
delay.
Table 20-28 shows an example of the computed the t
PASC
delay.
20.4.7 Transfer Formats
The SPI serial communication is controlled by the serial communications clock (SCKx) signal and the
PCSx signals. The SCKx signal provided by the master device synchronizes shifting and sampling of the
data by the SINx and SOUTx pins. The PCSx signals serve as enable signals for the slave devices.
When the DSPI is the bus master, the CPOL and CPHA bits in the DSPI clock and transfer attributes
registers (DSPIx_CTARn) select the polarity and phase of the serial clock, SCKx. The polarity bit selects
the idle state of the SCKx. The clock phase bit selects if the data on SOUTx is valid before or on the first
SCKx edge.
Table 20-27. Peripheral Chip Select Strobe Assert Computation Example
PCSSCK Prescaler f
SYS
Delay before Transfer
0b11 7 100 MHz 70.0 ns
Table 20-28. Peripheral Chip Select Strobe Negate Computation Example
PASC Prescaler f
SYS
Delay after Transfer
0b11 7 100 MHz 70.0 ns
