Chapter 3
Device Management
RUGGEDCOM ROX II
User Guide
82 Viewing a List of Line Module Configurations
Section 3.16.3
Viewing a List of Line Module Configurations
To view a list of line module configurations, navigate to chassis » line-modules. If line modules have been
configured, the Modules table appears.

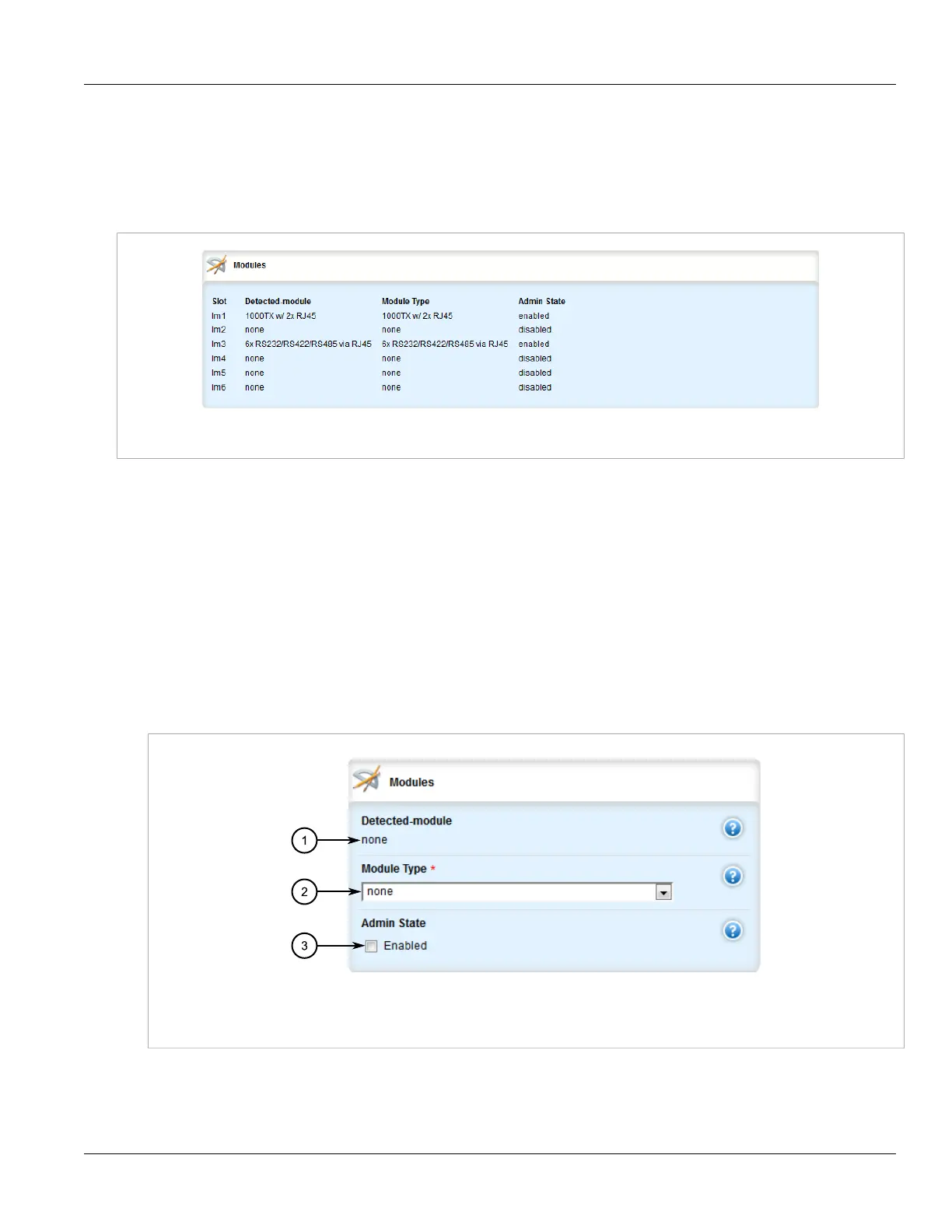

Figure 83: Modules Table
If no line modules have been configured, install line module as needed. For more information, refer to
Section 3.16.2, “Installing a New Line Module”.
Section 3.16.4
Configuring a Line Module
To configure a line module, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to chassis » line-modules » {module}, where {module} is the line module. The Modules form
appears.
Figure 84: Modules Form
1. Detected Module 2. Module Type List 3. Admin State Check Box
3. Configure the following parameter(s) as required:
