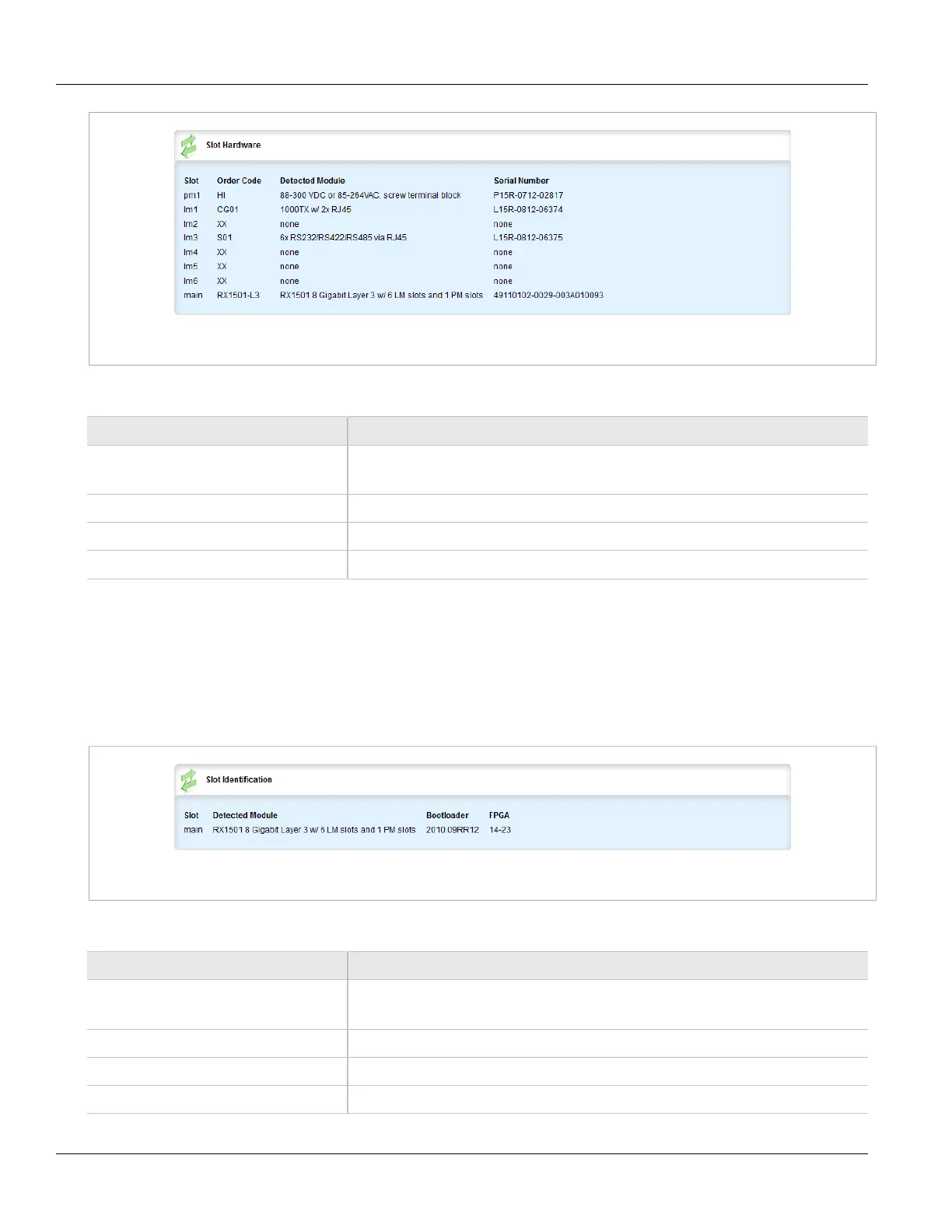

Figure 19: Slot Hardware Table
This table provides the following information:
Parameter Description
slot Synopsis: pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, cm, em, trnk
The slot name, as marked on the silkscreen across the top of the chassis.
Order Code The order code of the chassis as derived from the current hardware configuration.
Detected Module The installed module's type specifier.
Serial Number The installed module's unique serial number.
Section 3.2.2
Viewing Module Information
To view information about the modules installed in the device, navigate to chassis » info. The Slot Identification
table appears.
Figure 20: Slot Identification Table
This table provides the following information:
Parameter Description
slot Synopsis: pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, cm, em, trnk
The slot name, as marked on the silkscreen across the top of the chassis.
Detected Module The installed module's type specifier.
Bootloader The version of the ROX bootloader software on the installed module.
FPGA The version of the ROX FPGA firmware (if any) running on the installed module.
