Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
782 Viewing a List of QoS Maps
The following sections describe how to configure and manage QoS maps for VLAN connections:
• Section 5.37.7.1, “Viewing a List of QoS Maps”
• Section 5.37.7.2, “Adding a QoS Map”
• Section 5.37.7.3, “Deleting a QoS Map”
Section 5.37.7.1
Viewing a List of QoS Maps
To view a list of QoS maps for a VLAN connection, navigate to interface » {interface} » {interface-name} »
vlan » {id}, where:
• {interface} is the type of interface (either eth or virtualswitch)
• {interface-name} is the name of the interface
• {id} is the ID given to the VLAN
If QoS maps have been configured, the QoS Map Settings table appears.

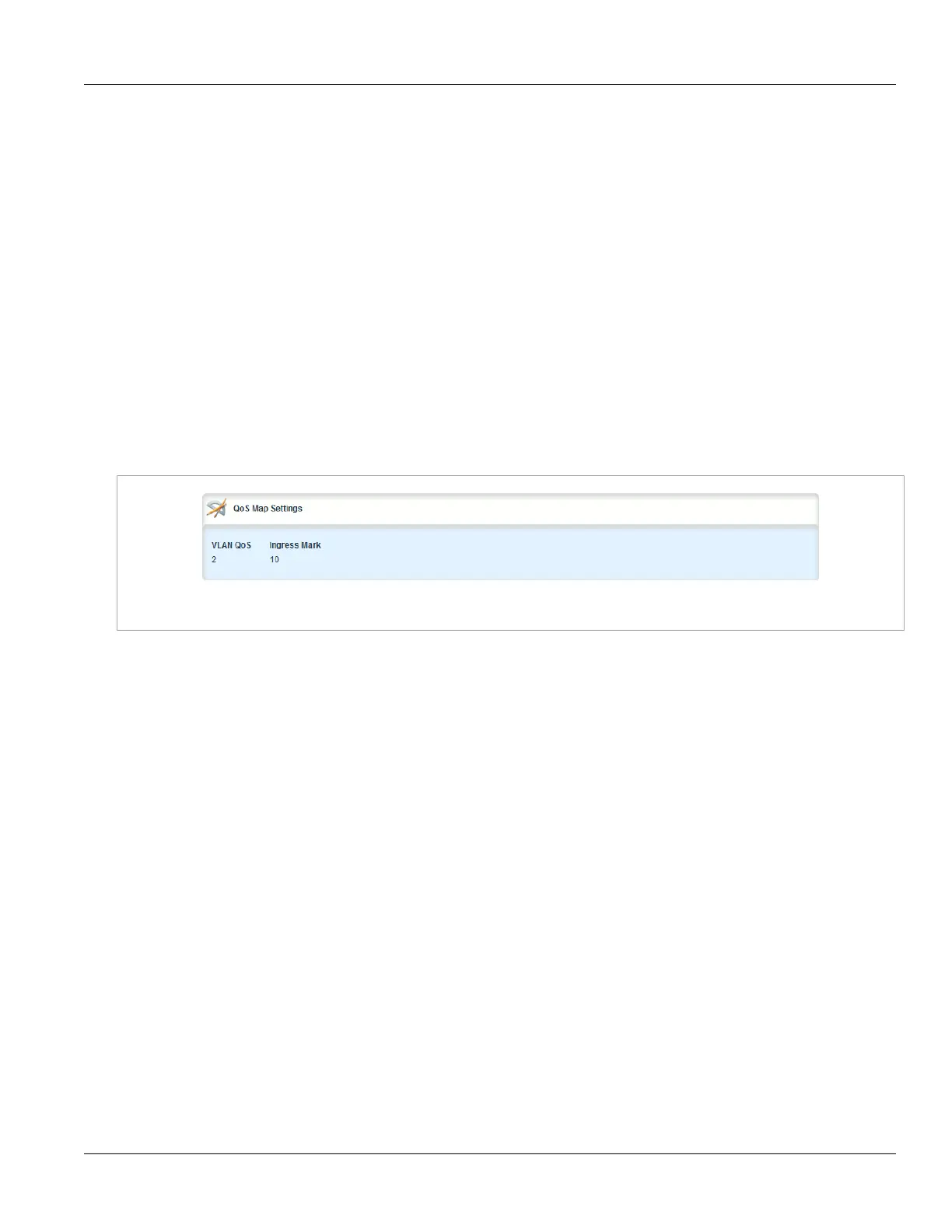

Figure 898: QoS Map Settings Table
If no QoS maps have been configured, add maps as needed. For more information, refer to Section 5.37.7.2,
“Adding a QoS Map”.
Section 5.37.7.2
Adding a QoS Map
To add a QoS map for a VLAN connection, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » {interface} » {interface-name} » vlan » {id}, where:
• {interface} is the type of interface (either eth or virtualswitch)
• {interface-name} is the name of the interface
• {id} is the ID given to the VLAN
3. Click <Add qosmap>. The Key Settings form appears.
