808 Deleting a Static Label
Parameter Description
Prerequisite: LDP must be disabled before declaring MPLS label bindings.
5. Click Add to apply the static label to the destination address. The Static MPLS Bindings for IPv4
Addresses or Static MPLS Bindings for IPv6 Addresses form appears.

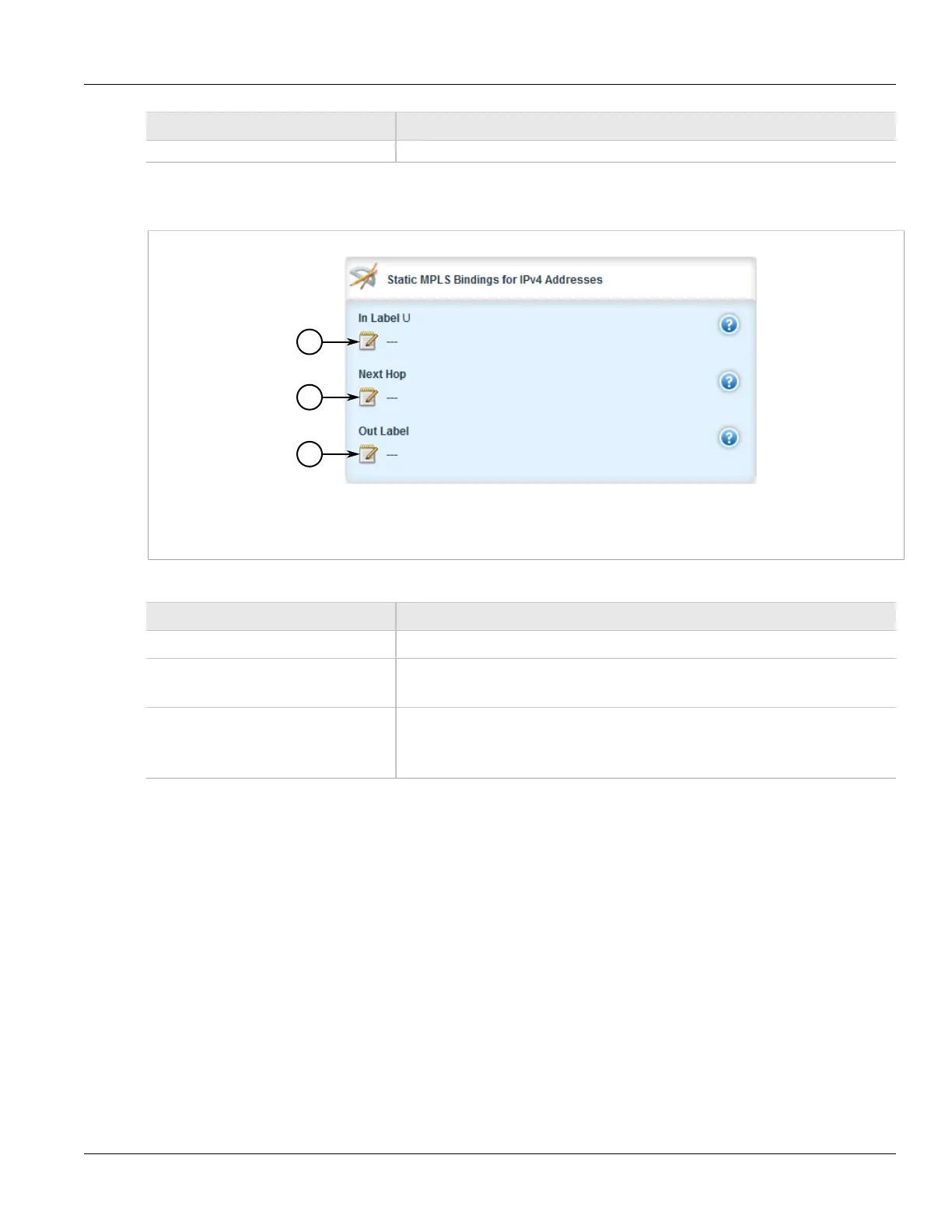

Figure 932: Static MPLS Bindings for IPv4 Addresses Form (Example)
1. In Label Box 2. Next Hop Box 3. Out Label Box
6. Configure the following parameter(s) as required:
Parameter Description
In Label The incoming label: integer 16 -> 1048575.
Next Hop The IP address for the destination next-hop router.
Prerequisite: The destination out-label must also be defined.
Out Label Synopsis: explicit-null, implicit-null,
The outgoing label: 'explicit-null', 'implicit-null' or integer 16 -> 1048575.
Prerequisite: The destination next-hop must also be defined.
7. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
8. Click Exit Transaction or continue making changes.
Section 5.39.5.4
Deleting a Static Label
To delete a static label, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to mpls » static-mpls » binding » {protocol}, where {protocol} is either ipv4 or ipv6. The Static
MPLS Bindings for IPv4 Addresses or Static MPLS Bindings for IPv6 Addresses table appears.
