Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
532 Viewing a List of Routing Interfaces
Section 5.21.9.1
Viewing a List of Routing Interfaces
To view a list of routing interfaces for an OSPF network, navigate to routing » dynamic » OSPF » interface. The
Interface Parameters table appears.

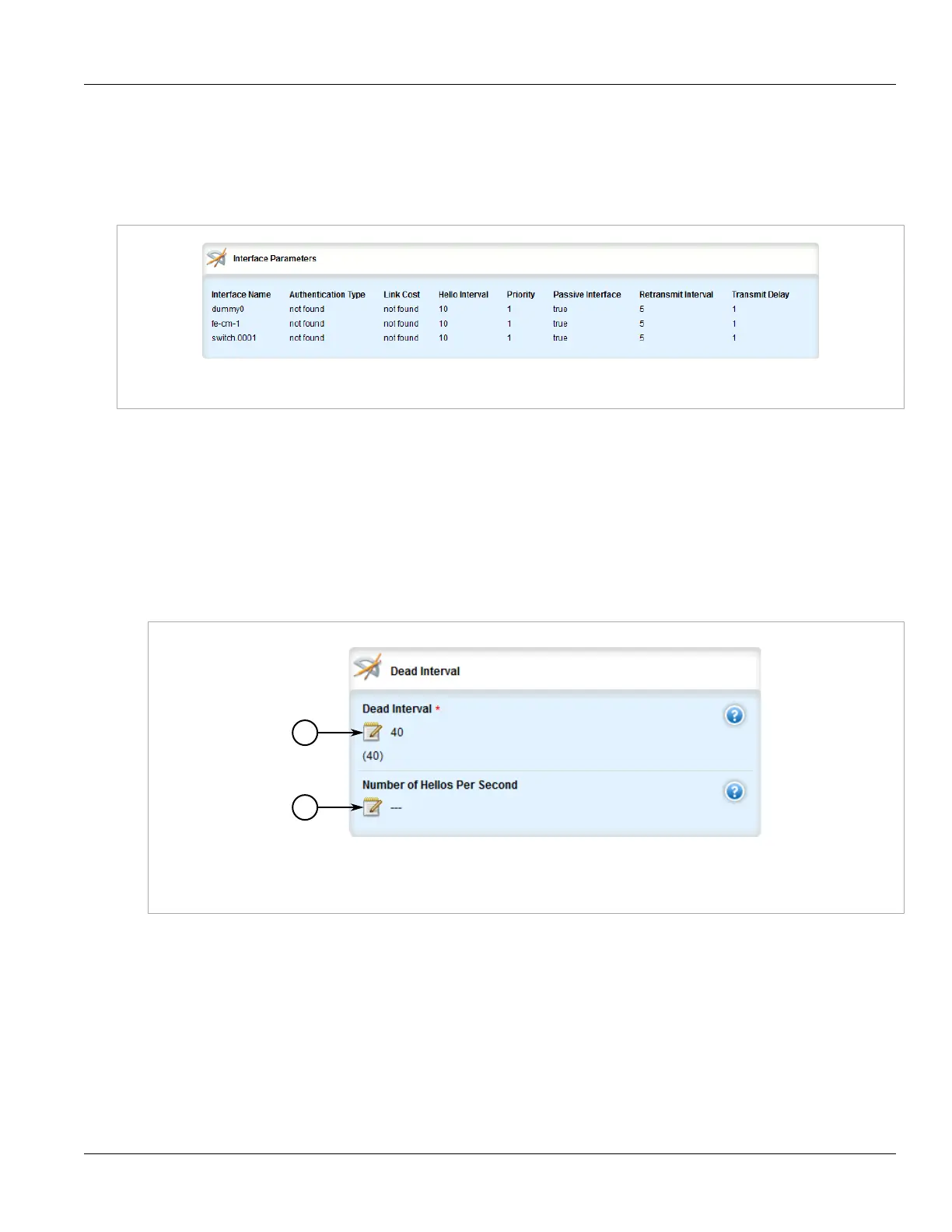

Figure 616: Interface Parameters Table
Section 5.21.9.2
Configuring a Routing Interface
To configure a routing interface for an OSPF network, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to routing » dynamic » ospf » interface » {name}, where {name} is the name of the interface.
The Dead Interval and Interface Parameters forms appear.
Figure 617: Dead Interval Form
1. Dead Interval Box 2. Number of Hellos Per Second Box
