686 Deleting a DSCP

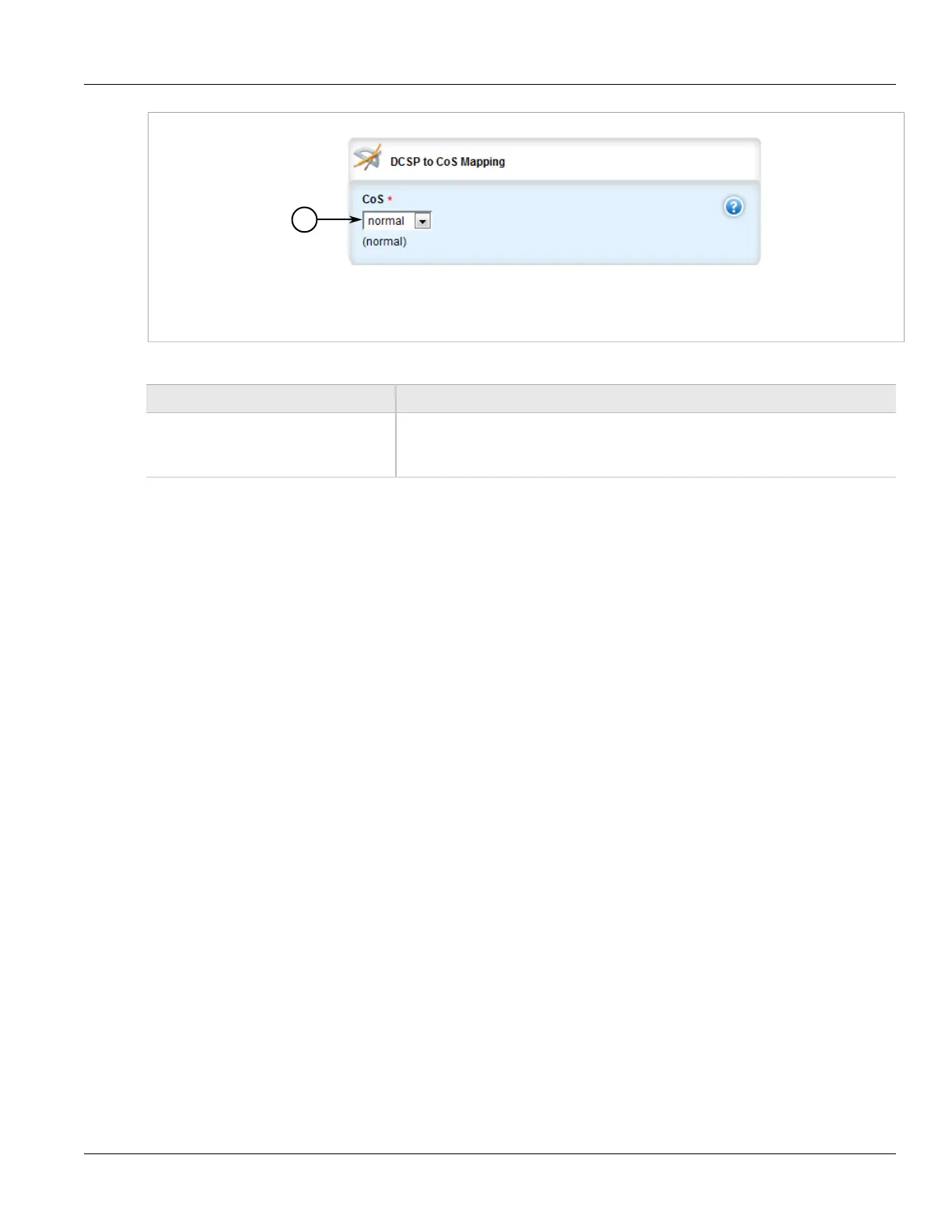

Figure 805: DSCP to CoS Mapping Form
1. CoS List
5. Configure the following parameter(s) as required:
Parameter Description
CoS Synopsis: normal, medium, high, crit
Default: normal
The Class of Service (CoS) assigned to the received frames with the specified DSCP.
6. Configure the CoS parameters on select switched Ethernet ports and/or trunk interfaces as needed. For
more information, refer to Section 3.18.2, “Configuring a Switched Ethernet Port” and/or Section 3.22.2,
“Adding an Ethernet Trunk Interface”.
7. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
8. Click Exit Transaction or continue making changes.
Section 5.32.3.3
Deleting a DSCP
To delete a DSCP, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » class-of-service » dscp-to-cos. The DSCP to CoS Mapping table appears.
