RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Viewing a List of Ethernet Trunk Ports 139
• Section 3.22.4.3, “Deleting an Ethernet Trunk Port”
Section 3.22.4.1
Viewing a List of Ethernet Trunk Ports
To view a list of Ethernet trunk ports, navigate to interface » trunks » {id} » trunk-ports, where {id} is the ID
given to the interface. If trunk ports have been configured, the Trunk Ports table appears.

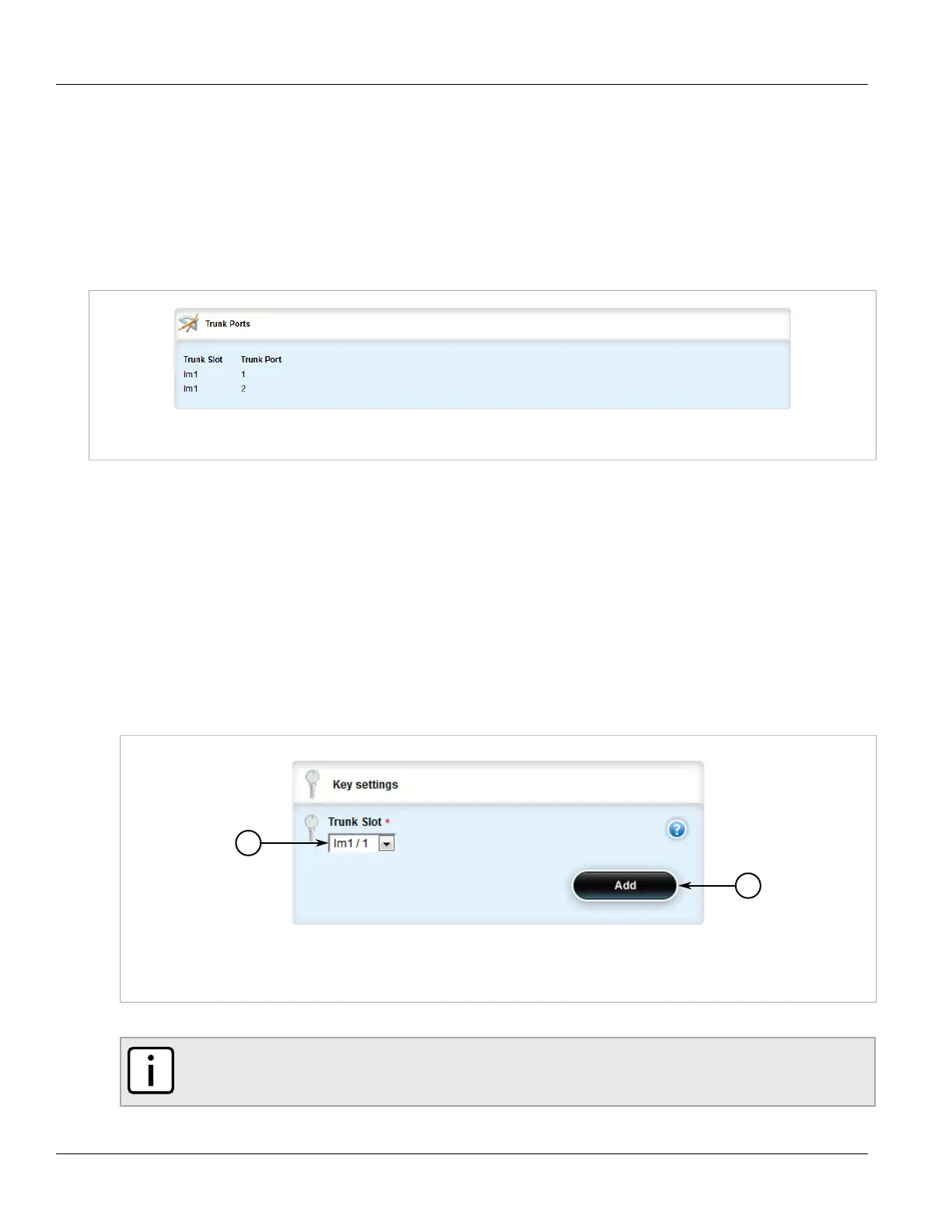

Figure 142: Trunk Ports Table
If no Ethernet trunk ports have been configured, add ports as needed. For more information, refer to
Section 3.22.4.2, “Adding an Ethernet Trunk Port”.
Section 3.22.4.2
Adding an Ethernet Trunk Port
To add an Ethernet trunk port, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » trunks » {id} » trunk-ports, where {id} is the ID given to the interface.
3. Click <Add trunk-ports>. The Key Settings form appears.
Figure 143: Key Settings Form
1. Trunk Slot List 2. Add Button
4. Configure the following parameter(s) as required:
NOTE
Routable Ethernet ports cannot be configured as trunk ports.
