RUGGEDCOM ROX II
User Guide
Chapter 4
System Administration
Configuring an Alarm 193

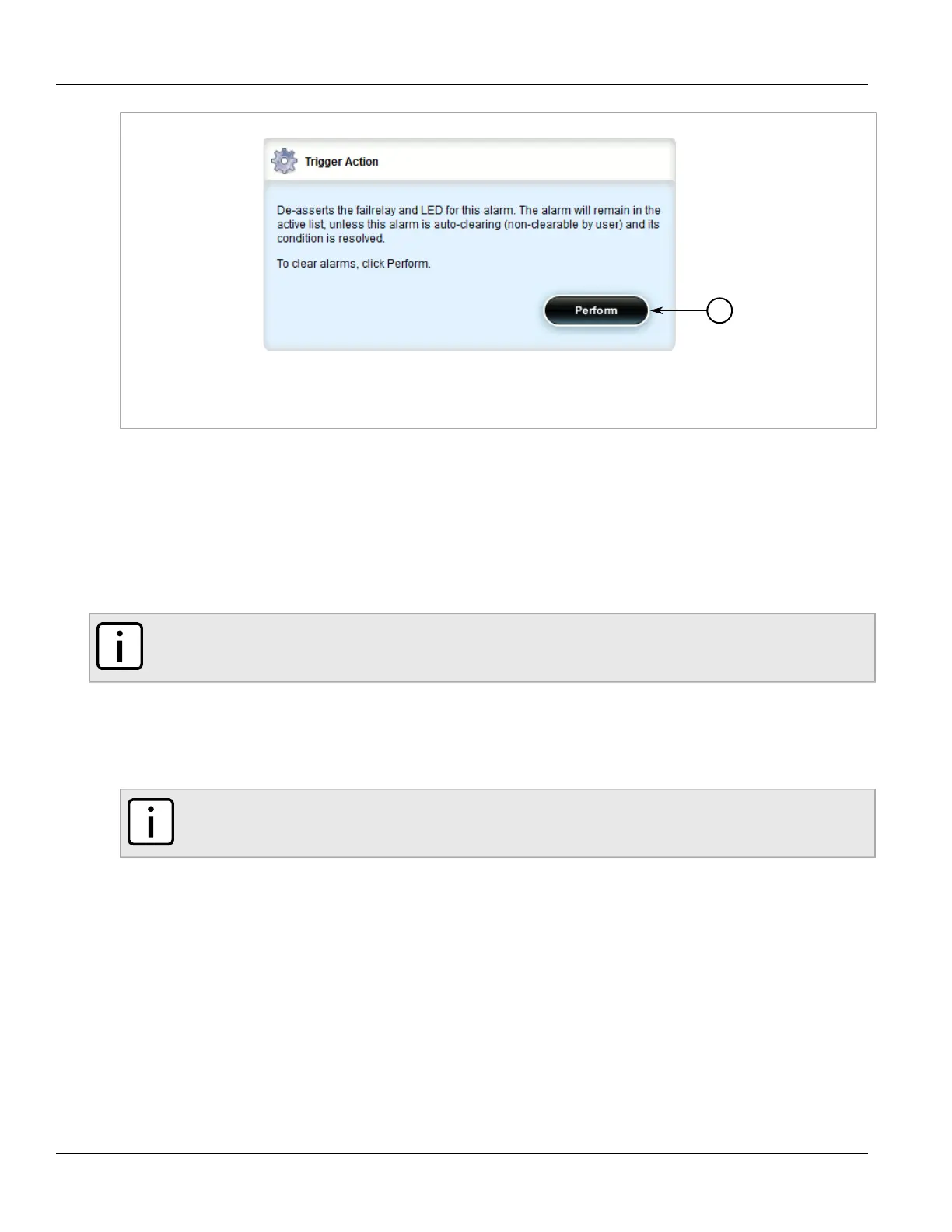

Figure 204: Trigger Action Form
1. Perform Button
3. Click Perform to acknowledge the alarm.
Section 4.6.3
Configuring an Alarm
While all alarms are pre-configured on the device, some alarms can be modified to suit the application. This
includes changing the severity and enabling/disabling certain features.
NOTE
The Failrelay Enable and LED Enable parameters are non-configurable for link up alarms.
To configure an alarm, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to admin » alarms » alarm-config » {type} » {alarm}, where {type} is the type of alarm and
{alarm} is the alarm ID. The Alarm Configuration form appears.
NOTE
Depending on the alarm type, some of the parameters shown are not available.
