RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Deleting a Multiple Spanning Tree Instance 717
6. Create one or more static VLANs and map them to the MSTI. For more information, refer to Section 5.35.4.2,
“Adding a Static VLAN”.
7. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
8. Click Exit Transaction or continue making changes.
Section 5.34.8.4
Deleting a Multiple Spanning Tree Instance
To delete a Multiple Spanning Tree Instance (MSTI), do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » spanning-tree » mstp-instance. The MSTP Instance table appears.

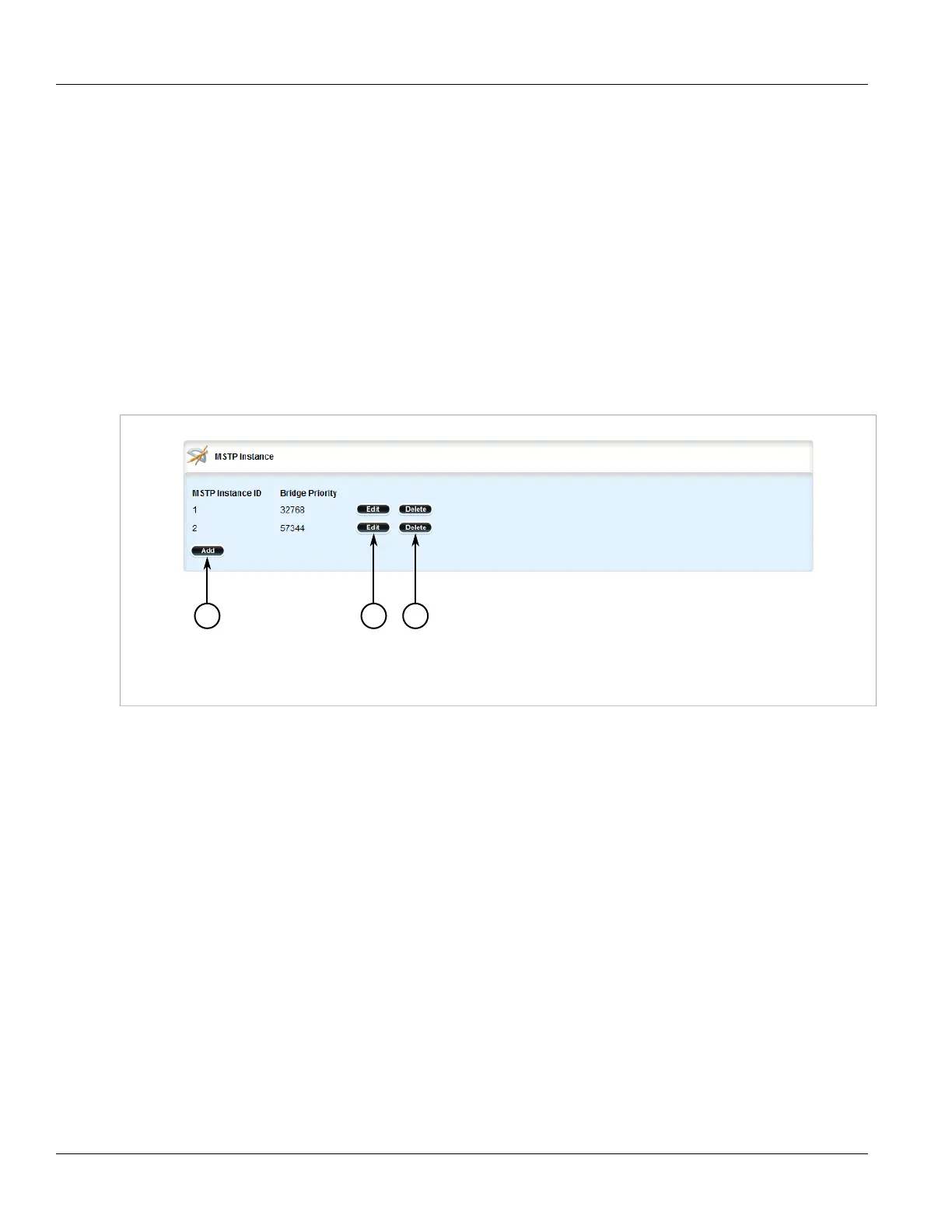

Figure 829: MSTP Instance Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen instance.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.34.9
Managing Port Costs and Priorities
The following sections describe how to configure and manage port costs and priorities for individual ports:
• Section 5.34.9.1, “Viewing a List of Port Costs and Priorities”
• Section 5.34.9.2, “Adding Port Costs and Priorities”
• Section 5.34.9.3, “Deleting Port Costs and Priorities”
