Parameter Description
• master : provide serial clock signal.
• normal : accept external clock signal.
6. Configure a PPP or frame relay connection. For more information, refer to Section 3.24.12, “Configuring a
PPP Connection” or Section 3.24.13, “Configuring a Frame Relay Connection”.
7. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
8. Click Exit Transaction or continue making changes.
Section 3.24.9
Managing Channels
The following sections describe how to configure and manage channels:
• Section 3.24.9.1, “Viewing a List of Channels”
• Section 3.24.9.2, “Adding a Channel”
• Section 3.24.9.3, “Deleting Channels”
Section 3.24.9.1
Viewing a List of Channels
To view a list of channels configured for a T1/E1 interface, navigate to interface » wan » {interface} »
{protocol} » channel, where {interface} is the WAN interface and {protocol} is either T1 or E1. If channels have
been configured, the Channels and Associated Time Slots table appears.

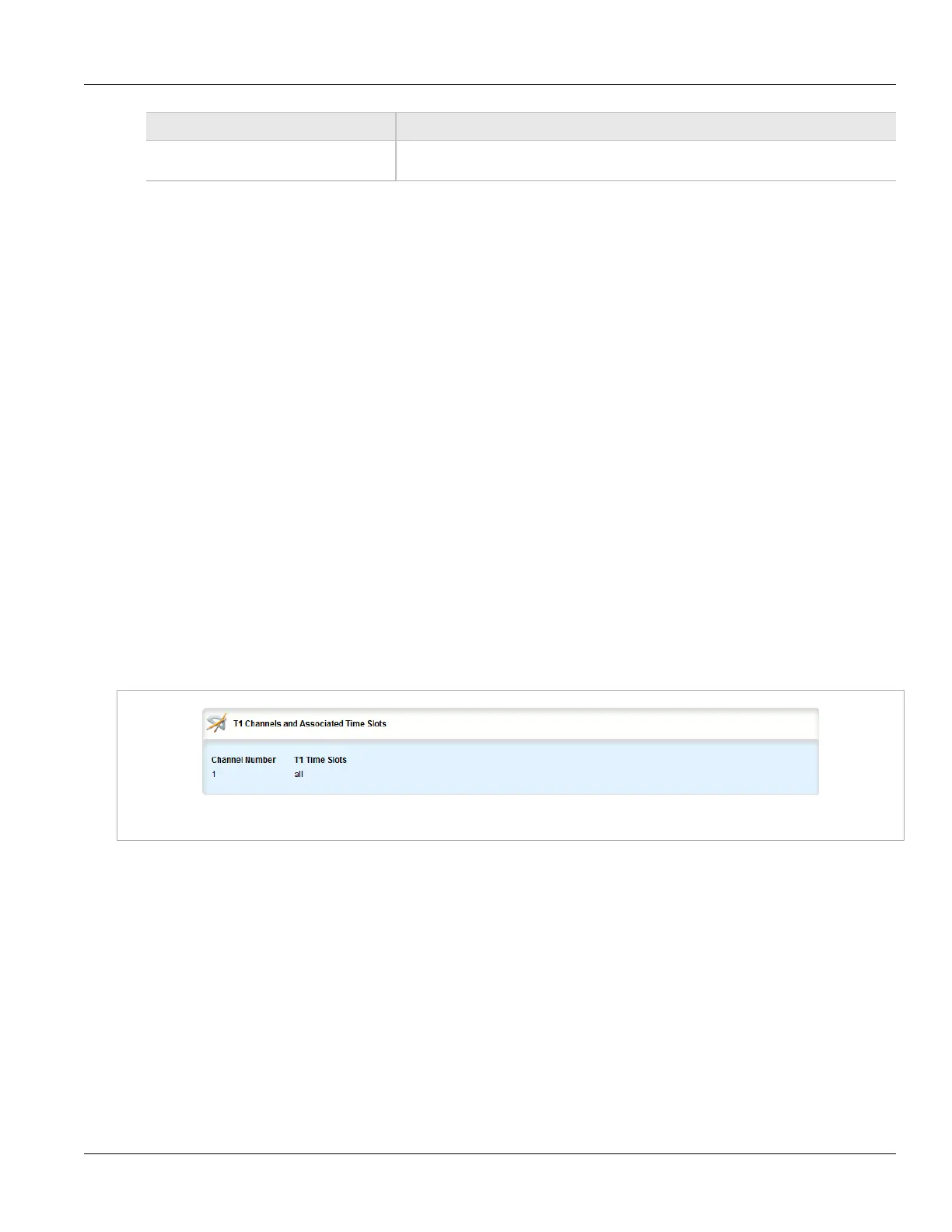

Figure 170: T1 Channels and Associated Time Slots Table (Example)
If no channels have been configured, add channels as needed. For more information, refer to Section 3.24.9.2,
“Adding a Channel”.
Section 3.24.9.2
Adding a Channel
To configure a channel for a T1/E1 physical interface, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » wan » {interface} » {protocol} » channel, where {interface} is the WAN interface
and {protocol} is either T1 or E1.
3. Click <Add channel>. The Key Settings form appears.
