Configuring a PPP Connection
To configure a Point-to-Point Protocol (PPP) connection, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Depending on the WAN module, navigate to either:
• For T1/E1 Lines
interface » wan » {interface} » {protocol} » channel » {number} » connection, where {interface} is the
WAN interface, {parameter} is either T1 or E1, and {number} is the channel number.
• For DDS
interface » wan » {interface} » dds » connection, where {interface} is the WAN interface, {parameter} is
either T1 or E1, and {number} is the channel number.
3. Click the + symbol in the menu next to ppp. The PPP form appears.

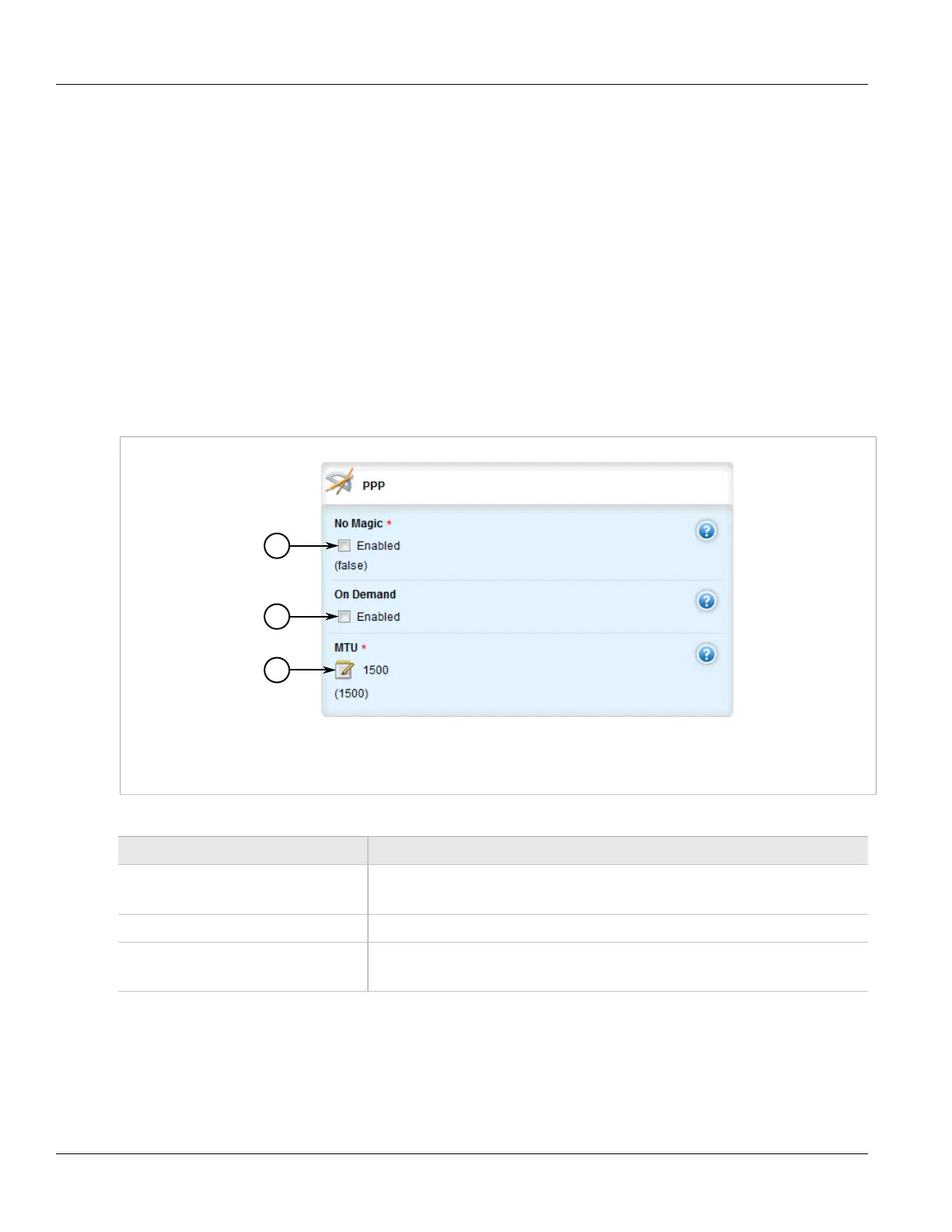

Figure 176: PPP Form
1. No Magic Check Box 2. On Demand Check Box 3. MTU Box
4. Configure the following parameter(s) as required:
Parameter Description
No Magic Default: false
Disables the Magic Number. (Valid on RX1000 only)
On Demand This interface is up or down on demand of link fail over.
MTU Default: 1500
Maximum transmission unit (largest packet size allowed for this interface).
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
