636 Adding an Address for a Private Subnet

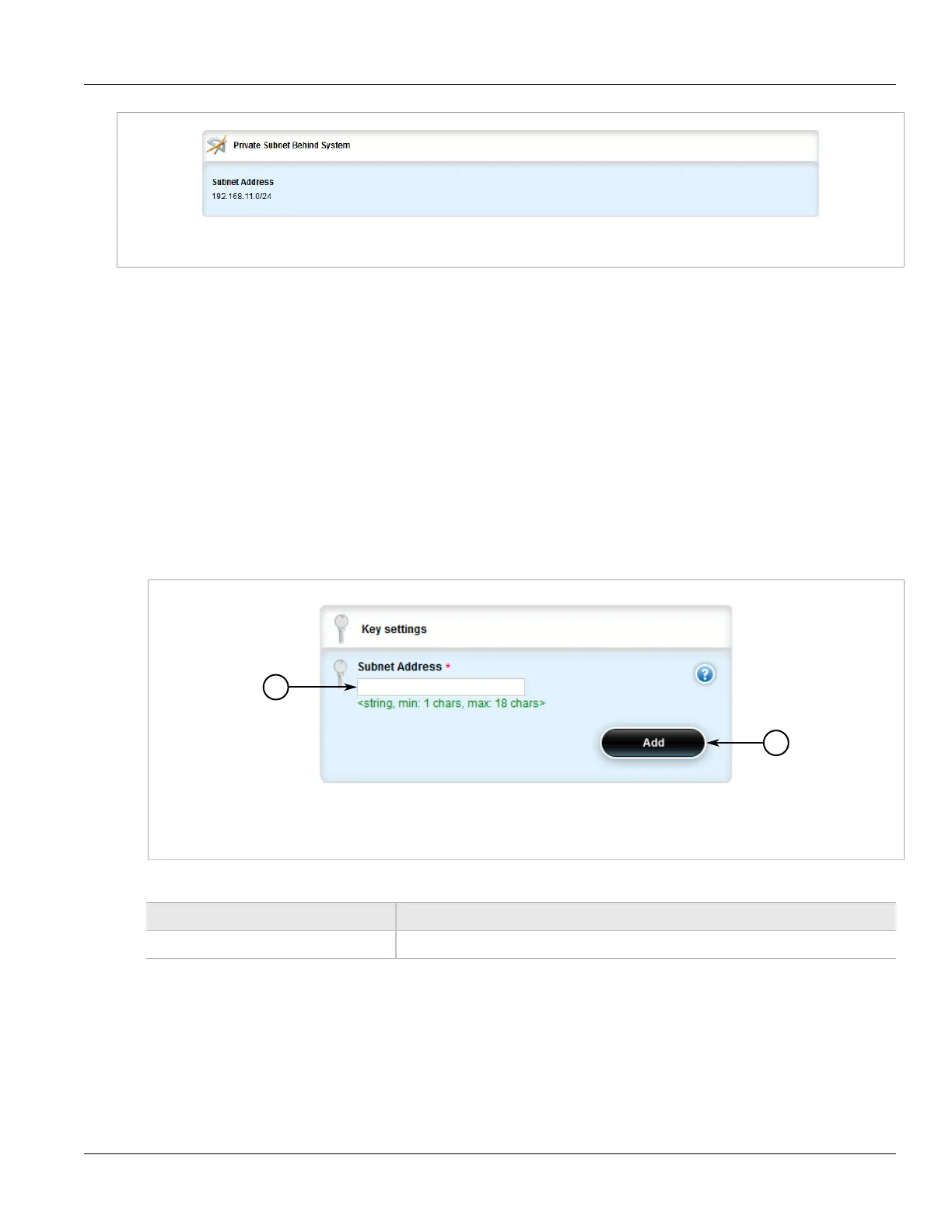

Figure 743: Private Subnet Behind System Table
If no addresses have been configured, add addresses as needed. For more information, refer to
Section 5.28.10.3, “Adding an Address for a Private Subnet”.
Section 5.28.10.3
Adding an Address for a Private Subnet
To add a new address for a private subnet, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to tunnel » ipsec » connection » {connection} » {end} » subnet » network, where {connection}
is the name of the connection and {end} is the either the left (local router) or right (remote router) connection
end.
3. Click <Add network>. The Key Settings form appears.
Figure 744: Key Settings Form
1. Subnet Address Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
Subnet Address The IP address/prefix.
5. Click Add to create the new address.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
