RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Deleting a QoS Map 783

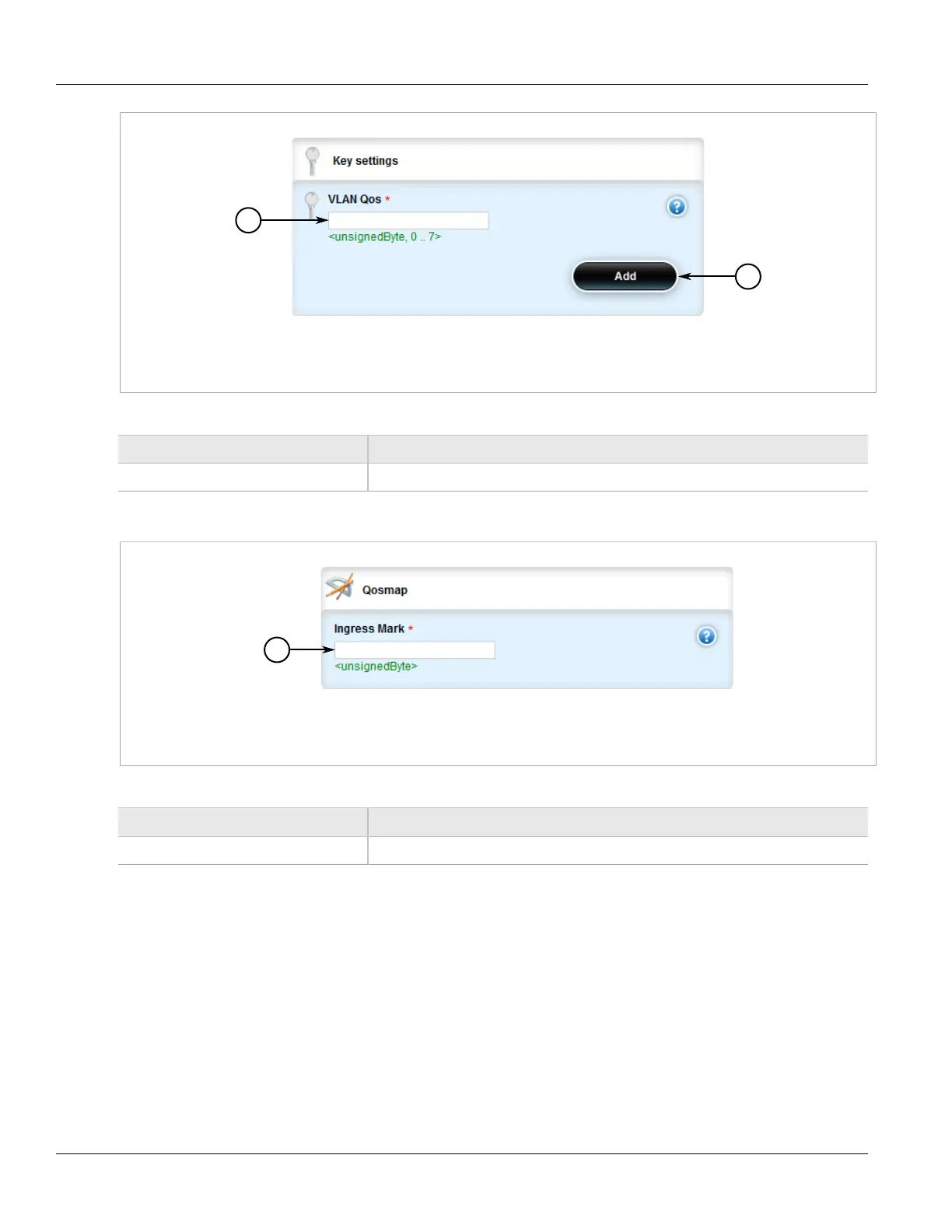

Figure 899: Key Settings Form
1. VLAN QoS Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
VLAN QoS VLAN QoS, which is the priority in the VLAN header.
5. Click Add to create the new QoS Map. The Qosmap form appears.
Figure 900: Qosmap Form
1. Ingress Mark Box
6. Configure the following parameter(s) as required:
Parameter Description
Ingress Mark Map the ingress to a mark.
7. Add an egress mark for the QoS map. For more information, refer to Section 5.37.8.2, “Adding an Egress
Mark”.
8. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
9. Click Exit Transaction or continue making changes.
Section 5.37.7.3
Deleting a QoS Map
To delete a QoS map for a VLAN connection, do the following:
