RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Adding a DSCP 685

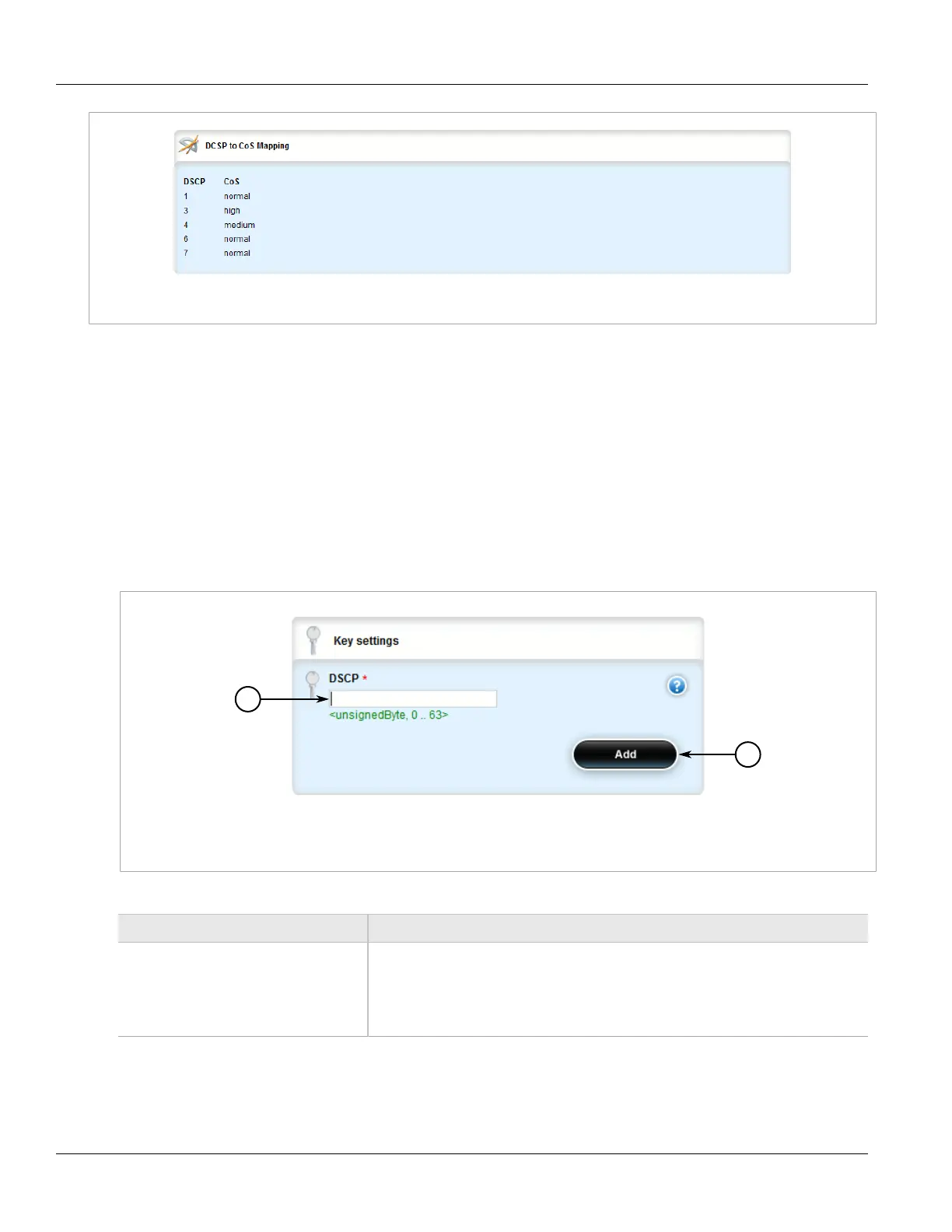

Figure 803: DSCP to CoS Mapping Table
If no DSCPs have been configured, add DSCPs as needed. For more information, refer to Section 5.32.3.2,
“Adding a DSCP”.
Section 5.32.3.2
Adding a DSCP
To add a DSCP, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » class-of-service » dcsp-to-cos and click <Add dscp>. The Key Settings form
appears.
Figure 804: Key Settings Form
1. DSCP Box 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
DSCP Synopsis: The dscp type represents a Differentiated Services Code-Point that may be
used for marking packets in a traffic stream. In the value set and its semantics, this type
is equivalent to the Dscp textual convention of the SMIv2.
The Differentiated Services Code Point (DSCP): a value of the 6 bit DiffServ field in the
Type-Of-Service (TOS) field of the IP header.
4. Click Add to add the DSCP. The DSCP to CoS Mapping form appears.
