Setup and Configuration
Adding an Option 82 Class to an IP Pool 359
If no Option 82 classes have been configured, add classes as needed. For more information, refer to
Section 5.15.16.2, “Adding an Option 82 Class to an IP Pool”.
Section 5.15.16.2
Adding an Option 82 Class to an IP Pool
To add an Option 82 class to an IP pool, do the following:
NOTE
The format for the Circuit ID value is 00:00:00:{vlan}:{slot}:{port}. If the remote host is connected to
LM3/1 on VLAN 1, the ID would be 00:00:00:01:03:01.
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to services » dhcpserver » subnet » {name} » options » ippool » {description} » option82,
where {name} is the name of the subnet and {description} is the name of the IP pool.
3. Click <Add option82>. The Key Settings form appears.

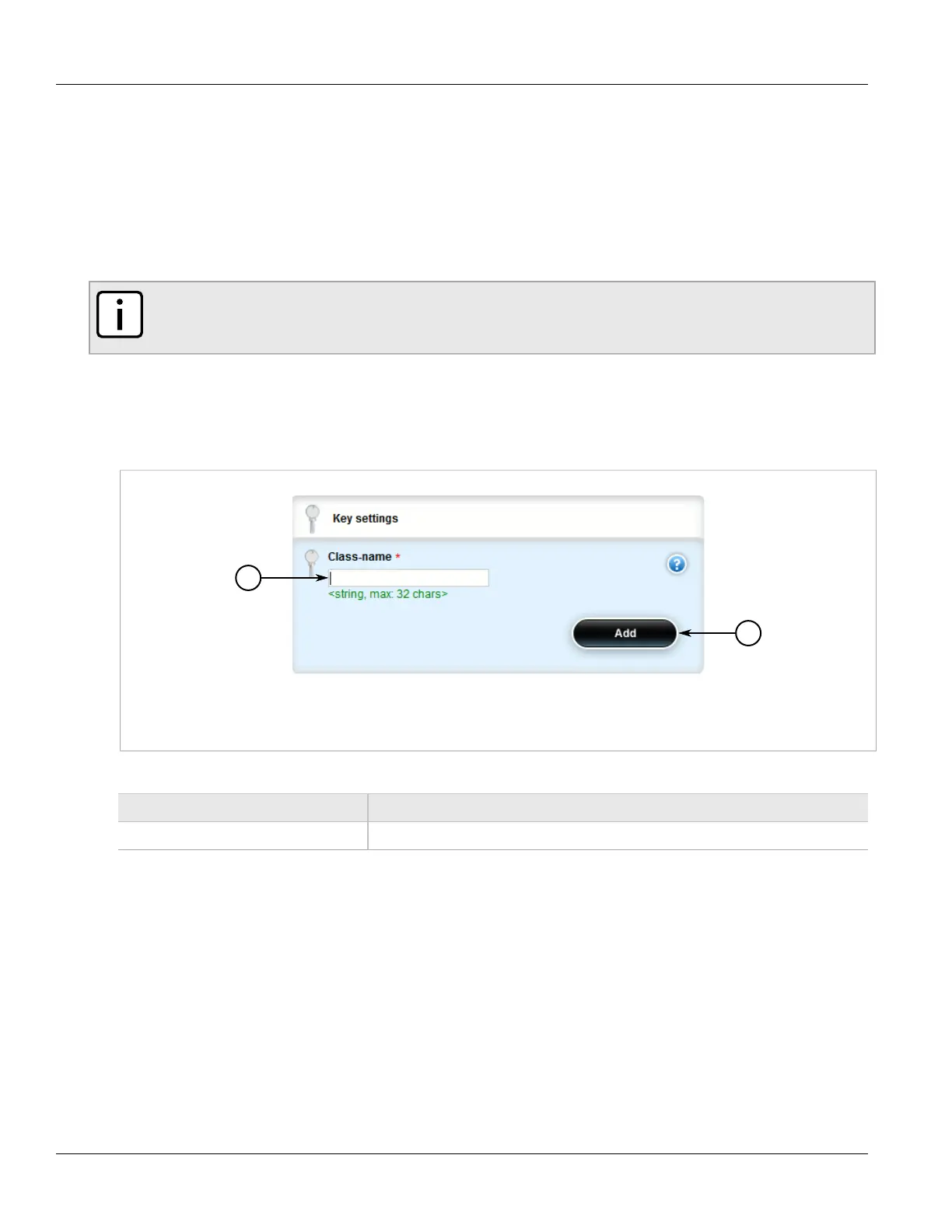

Figure 393: Key Settings Form
1. Class Name Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
class-name The class name of option 82.
5. Click Add to create the class. The Option 82 Configuration form appears.
