Viewing a Static and Dynamic ARP Table Summary
To view a static and dynamic ARP table summary, navigate to switch » layer3-switching » arp-table-summary.
If ARP table entries have been configured, the ARP Table Summary appears.

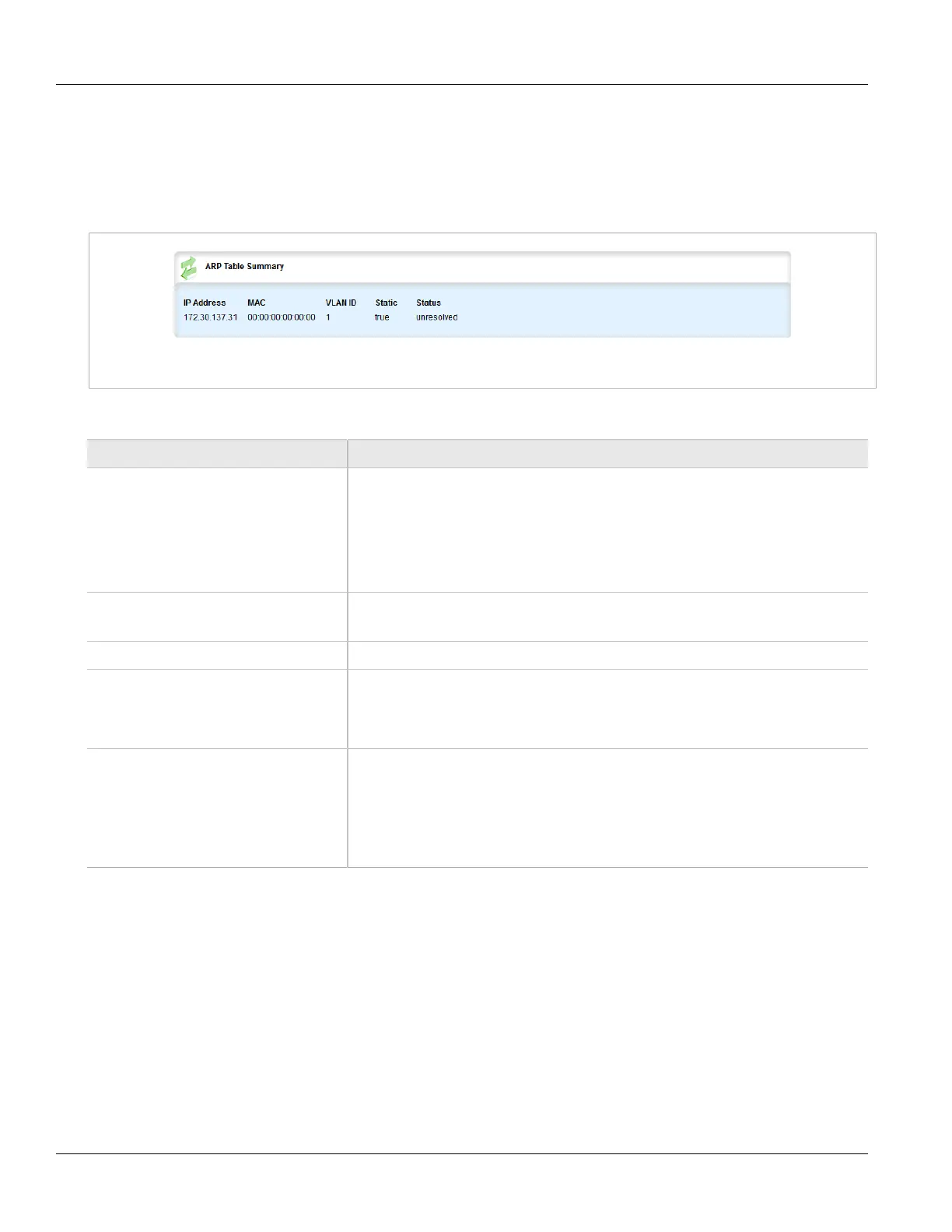

Figure 795: ARP Table Summary
This table provides the following information:
Parameter Description
IP Address Synopsis: The ipv4-address type represents an IPv4 address in dotted-quad notation. The
IPv4 address may include a zone index, separated by a % sign. The zone index is used to
disambiguate identical address values. For link-local addresses, the zone index will typically
be the interface index number or the name of an interface. If the zone index is not present,
the default zone of the device will be used. The canonical format for the zone index is the
numerical format
The IP address of the network device the entry describes.
MAC Default: 00:00:00:00:00:00
The MAC address of the network device specified by the IP address.
VLAN ID The VLAN Identifier of the VLAN upon which the MAC address operates.
static Default: true
Whether the entry is static or dynamic. Static entries are configured as a result of
management activity. Dynamic entries are automatically learned by the device and can be
unlearned.
status Synopsis: resolved, unresolved
Default: unresolved
The Address Resolution Protocol (ARP) entry resolution status:
• Resolved: MAC-IP address pair is resolved and operational.
• Unresolved: the device hasn't resolved the MAC-IP address pair and keeps sending ARP
requests periodically.
Section 5.31.5
Viewing Routing Rules
To view a list of routing rules, navigate to switch » layer3-switching » routing-rules-summary. If any static or
dynamic ARP table entries are configured, the Routing Rules Summary table appears.
