Viewing the GOOSE Tunnel Statistics 649
Section 5.29.5.1
Viewing the GOOSE Tunnel Statistics
To view the GOOSE tunnel statistics, navigate to tunnel » l2tunneld » status » goose. The GOOSE Tunnel
Statistics form appears.

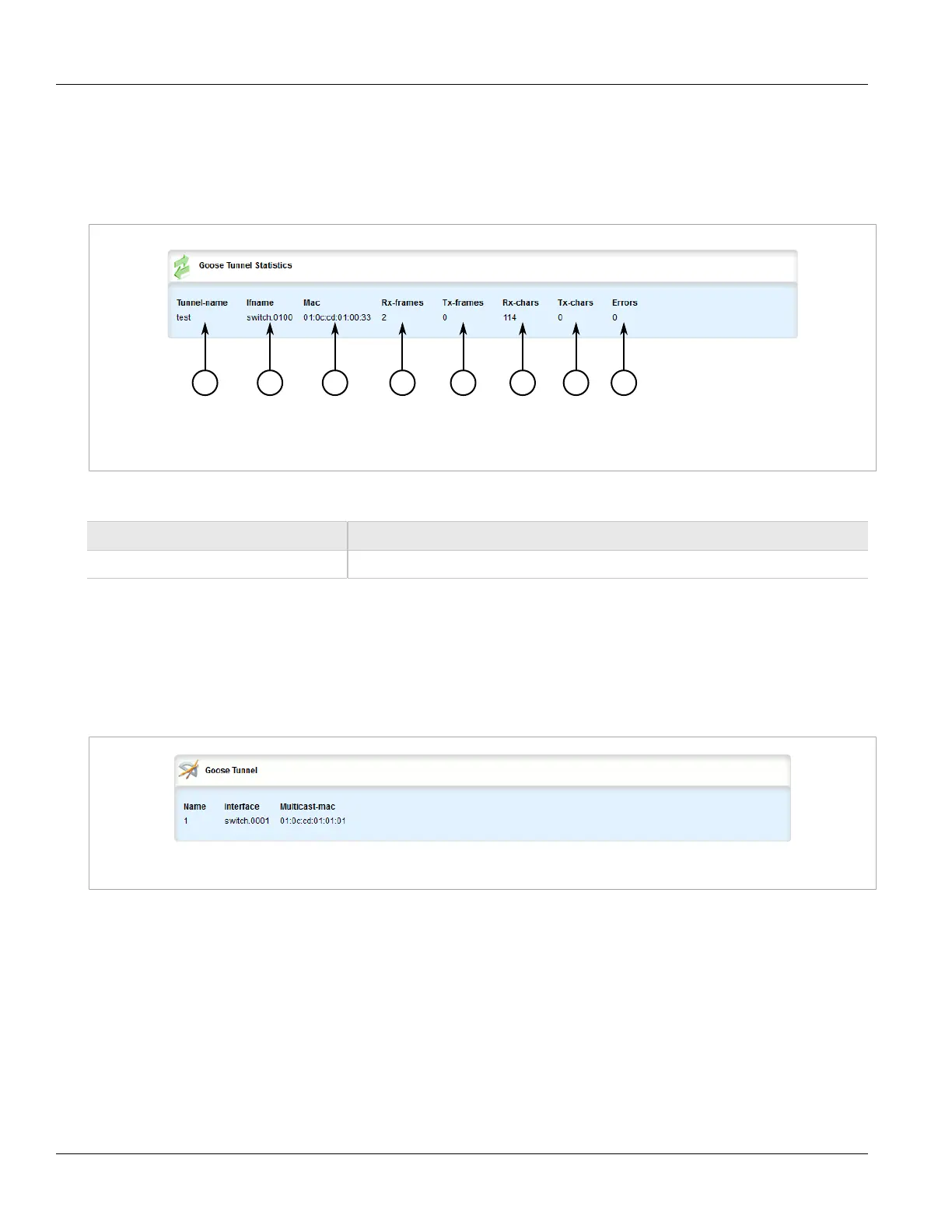

Figure 760: GOOSE Tunnel Statistics Form
1. Tunnel Name 2. Interface Name 3. MAC 4. RX Frames 5. TX Frames 6. RX Characters 7. TX Characters 8. Errors
This table provides the following information:
Parameter Description
tunnel-name The GOOSE tunnel name.
Section 5.29.5.2
Viewing a List of GOOSE Tunnels
To view a list of GOOSE tunnels, navigate to tunnel » l2tunneld » goose. If tunnels have been configured, the
GOOSE Tunnel table appears.
Figure 761: GOOSE Tunnel Table
If no GOOSE tunnels have been configured, add tunnels as needed. For more information, refer to
Section 5.29.5.3, “Adding a GOOSE Tunnel”.
Section 5.29.5.3
Adding a GOOSE Tunnel
To configure a GOOSE tunnel, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to tunnel » l2tunneld » goose and click <Add tunnel>. The Key Settings form appears.
To Next Page
