MPLS traffic flows are connection-oriented, as it operates on a pre-configured LSPs (Label Switch Paths) that is
built based on the dynamic Label Distribution Protocol (LDP) or through static label bindings.
The following sections describe how to configure and manage MPLS:
• Section 5.39.1, “Viewing the Status of IP Binding”
• Section 5.39.2, “Viewing the Status of the Forwarding Table”
• Section 5.39.3, “Enabling/Disabling MPLS Routing”
• Section 5.39.4, “Managing the MPLS Interfaces”
• Section 5.39.5, “Managing Static Label Binding”
• Section 5.39.6, “Managing Static Cross-Connects”
• Section 5.39.7, “Managing LDP”
Section 5.39.1
Viewing the Status of IP Binding
To view the status of the IP binding on the device, navigate to mpls » status » ip-binding. If IP binding has been
configured, the MPLS IP Address Bindings table appears.

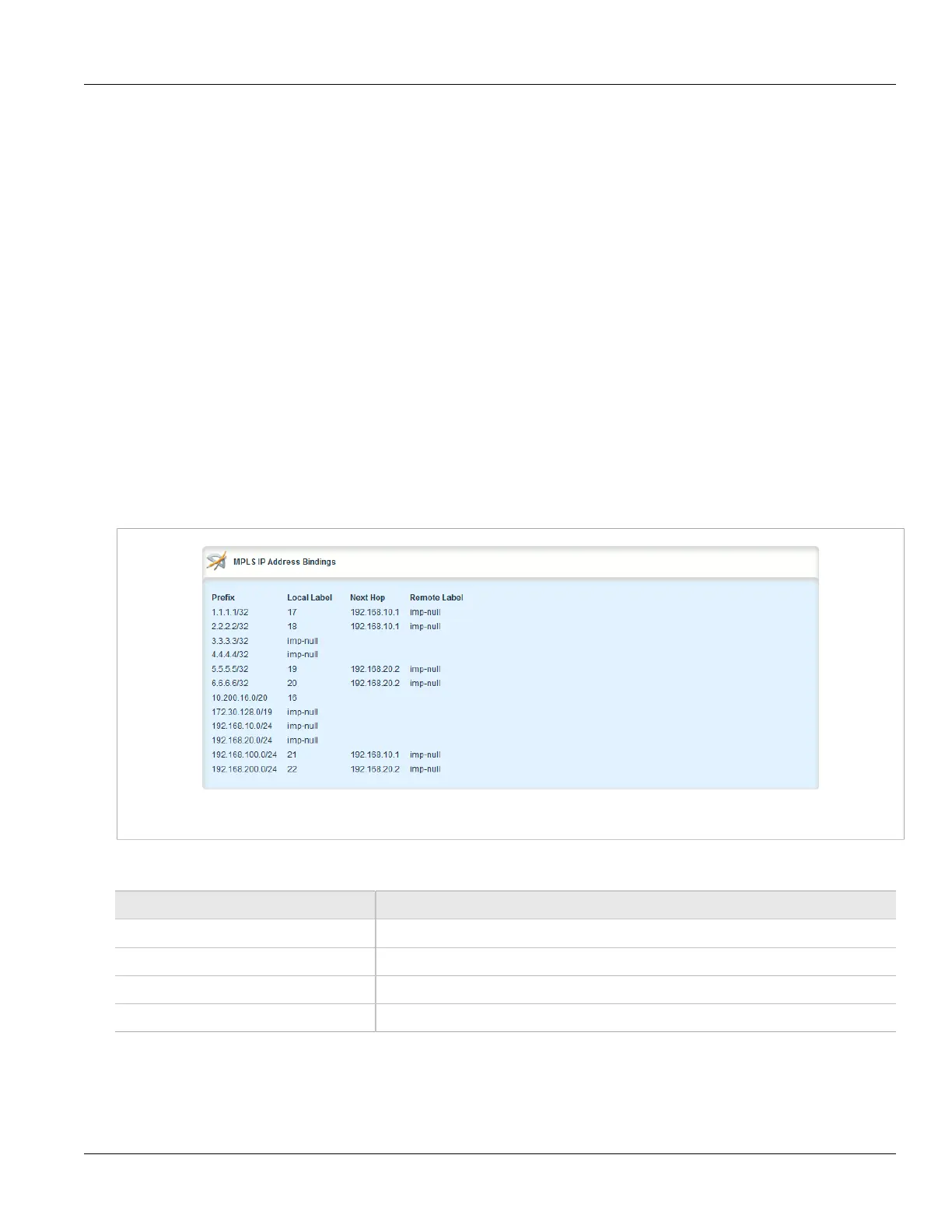

Figure 923: MPLS IP Address Bindings Table
This table provides the following information:
Parameter Description
Prefix The destination address prefix.
Local Label The incoming (local) label.
Next Hop The destination next hop router.
Remote Label The remote label
