Configuring DDS 161
Parameter Description
clock Synopsis: normal, master
Default: normal
Serial clocking mode: master or normal.
• master : provide serial clock signal.
• normal : accept external clock signal.
5. Add and configure channels for the E1 line. For more information, refer to Section 3.24.9.2, “Adding a
Channel”.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 3.24.8
Configuring DDS
To configure DDS for a WAN interface, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » wan » {interface}, where {interface} is the WAN interface.
3. Click the + symbol in the menu next to DDS to enable DDS.
4. Click the + symbol in the menu next to ddsparams. The DDS Parameters form appears.

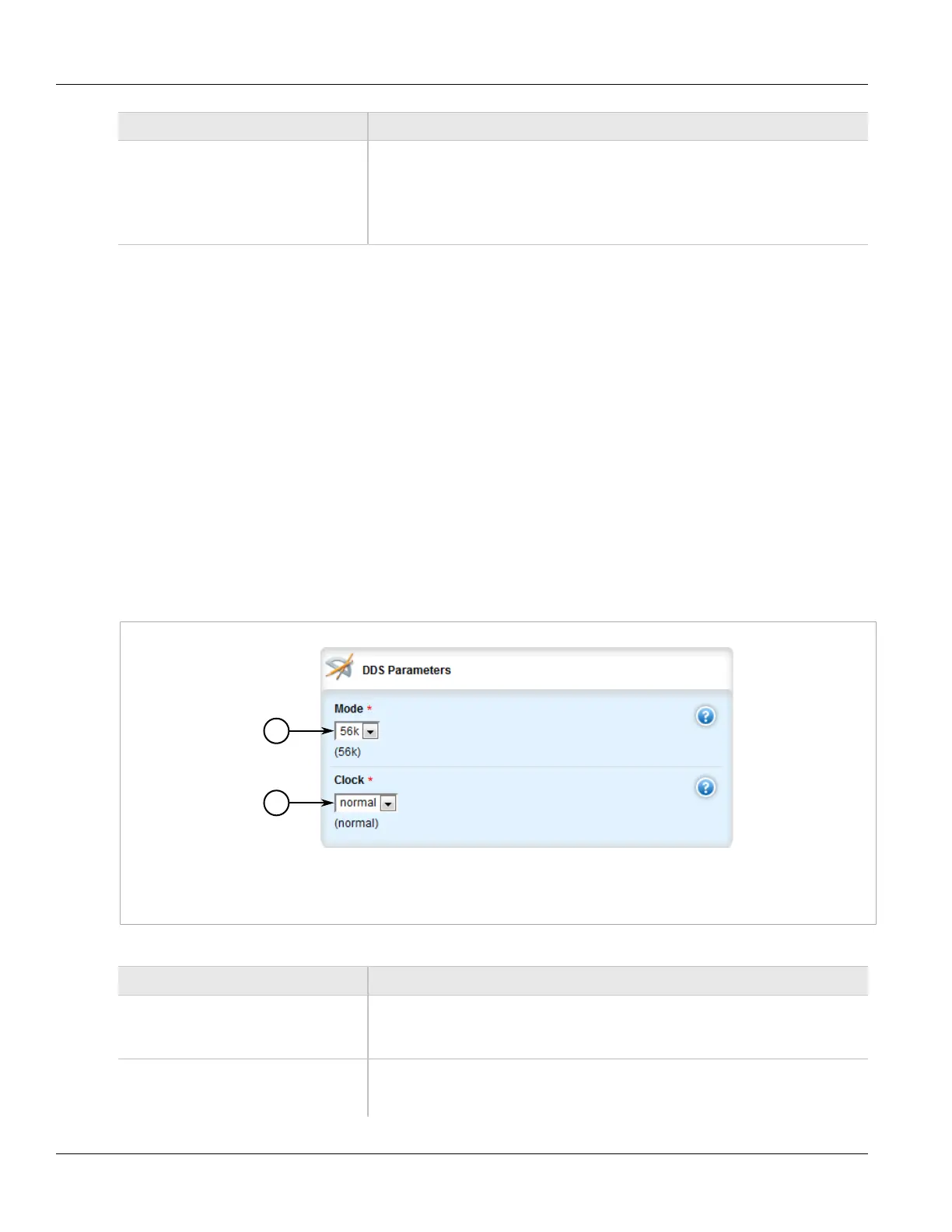

Figure 169: DDS Parameters Form
1. Mode List 2. Clock List
5. Configure the following parameter(s) as required:
Parameter Description
mode Synopsis: 56k, 64k
Default: 56k
DDS speed mode (kbps).
clock Synopsis: normal, master
Default: normal
Serial clocking mode: master or normal.
