Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
786 Deleting an Egress Mark
Parameter Description
Egress Mark The mark value.
5. Click Add to create the new egress mark.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 5.37.8.3
Deleting an Egress Mark
To delete an egress mark for a QoS map, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » {interface} » {interface-name} » vlan » {id} » qosmap » {priority} » egress,
where:
• {interface} is the type of interface (either eth or virtualswitch)
• {interface-name} is the name of the interface
• {id} is the ID given to the VLAN
• {priority} is the priority assigned to the QoS map
The Egress Marks Settings table appears.

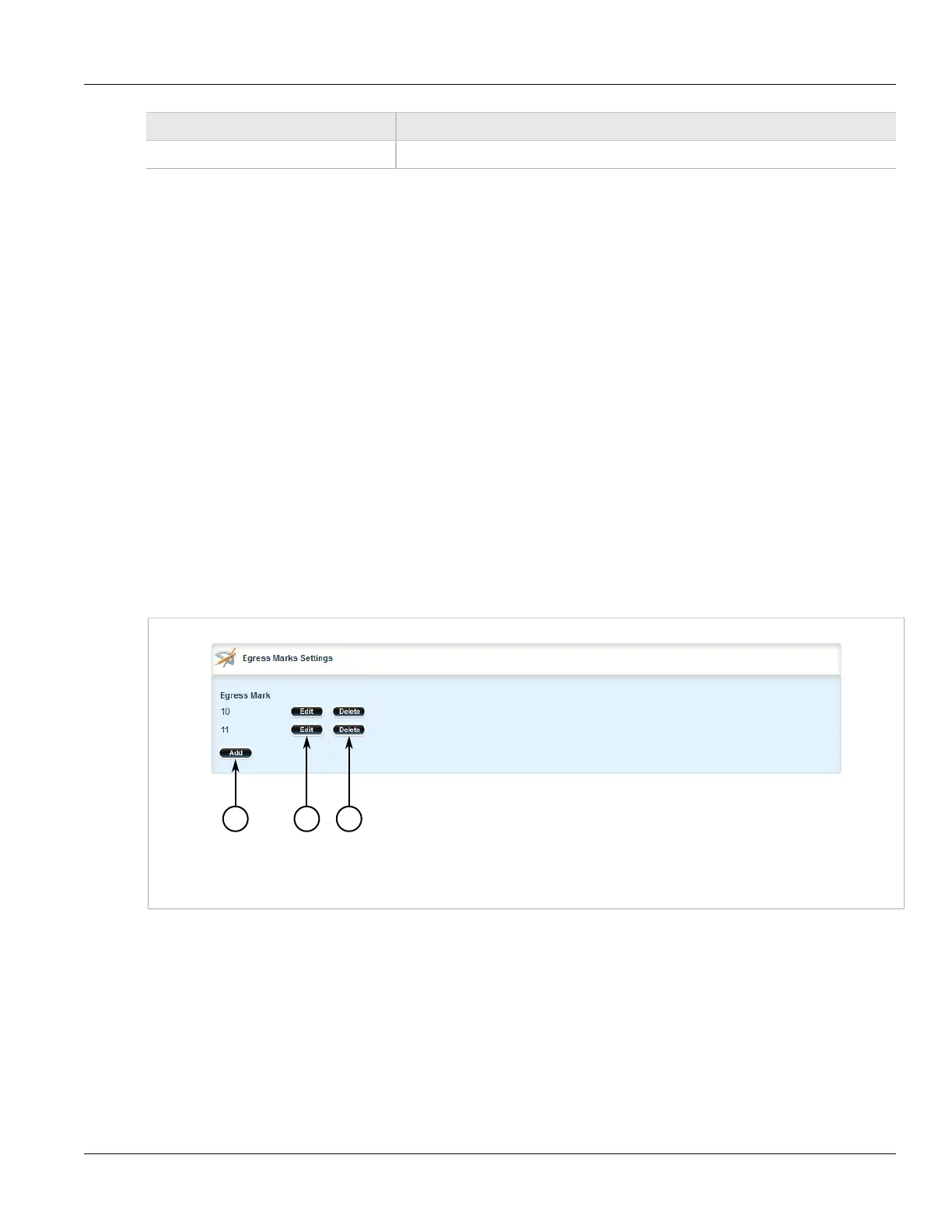

Figure 904: Egress Marks Settings Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen egress mark.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
