RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Adding a Serial Port Protocol 123
Section 3.21.5
Adding a Serial Port Protocol
To add a serial port protocol, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » serial » {slot/port} » protocols, where {slot/port} is the slot name and port number
of the serial port.
3. Click <Add protocols>. The Key Settings form appears.

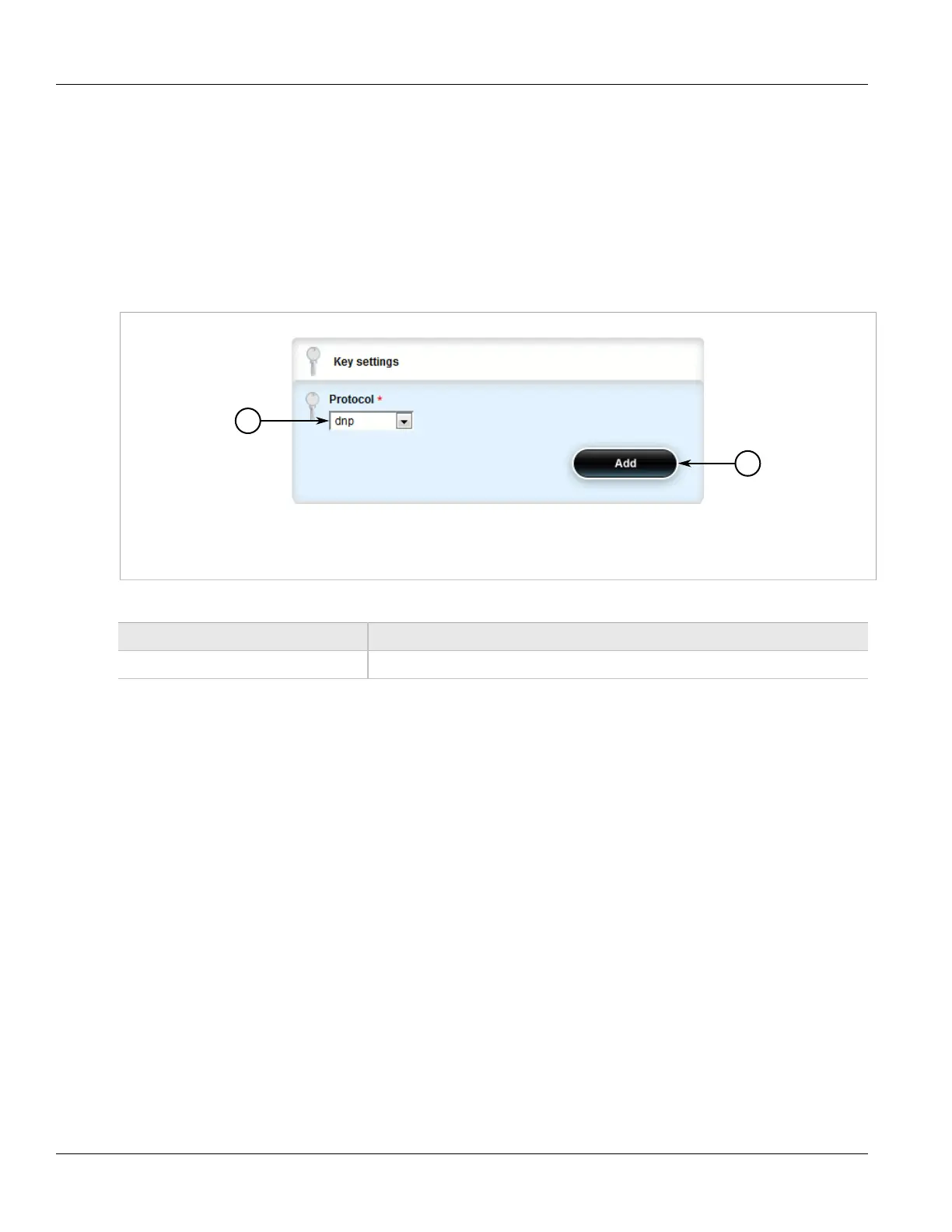

Figure 123: Key Settings Form
1. Protocol Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
protocol Synopsis: rawsocket, tcpmodbus, dnp
5. Click Add to create the protocol.
6. Configure the protocol.
• For information about configuring a DNP protocol, refer to Section 3.21.6, “Configuring the DNP Protocol”.
• For information about configuring a Modbus TCP protocol, refer to Section 3.21.7, “Configuring the
Modbus TCP Protocol”.
• For information about configuring a raw socket protocol, refer to Section 3.21.8, “Configuring the Raw
Socket Protocol”.
7. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
8. Click Exit Transaction or continue making changes.
Section 3.21.6
Configuring the DNP Protocol
To configure the DNP protocol for a serial port, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » serial » {interface} » protocols » dnp » setdnp, where {interface} is the serial port.
