Parameter Description
Prerequisite: An interface can be specified only if neither a protocol, port nor an
address are specified.
description (optional) A description for this configuration.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 5.37.3.3
Deleting a Traffic Control Priority
To delete a traffic control priority, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to qos » traffic-control » basic-configuration » tcpriorities. The Basic Traffic Control
Priorities table appears.

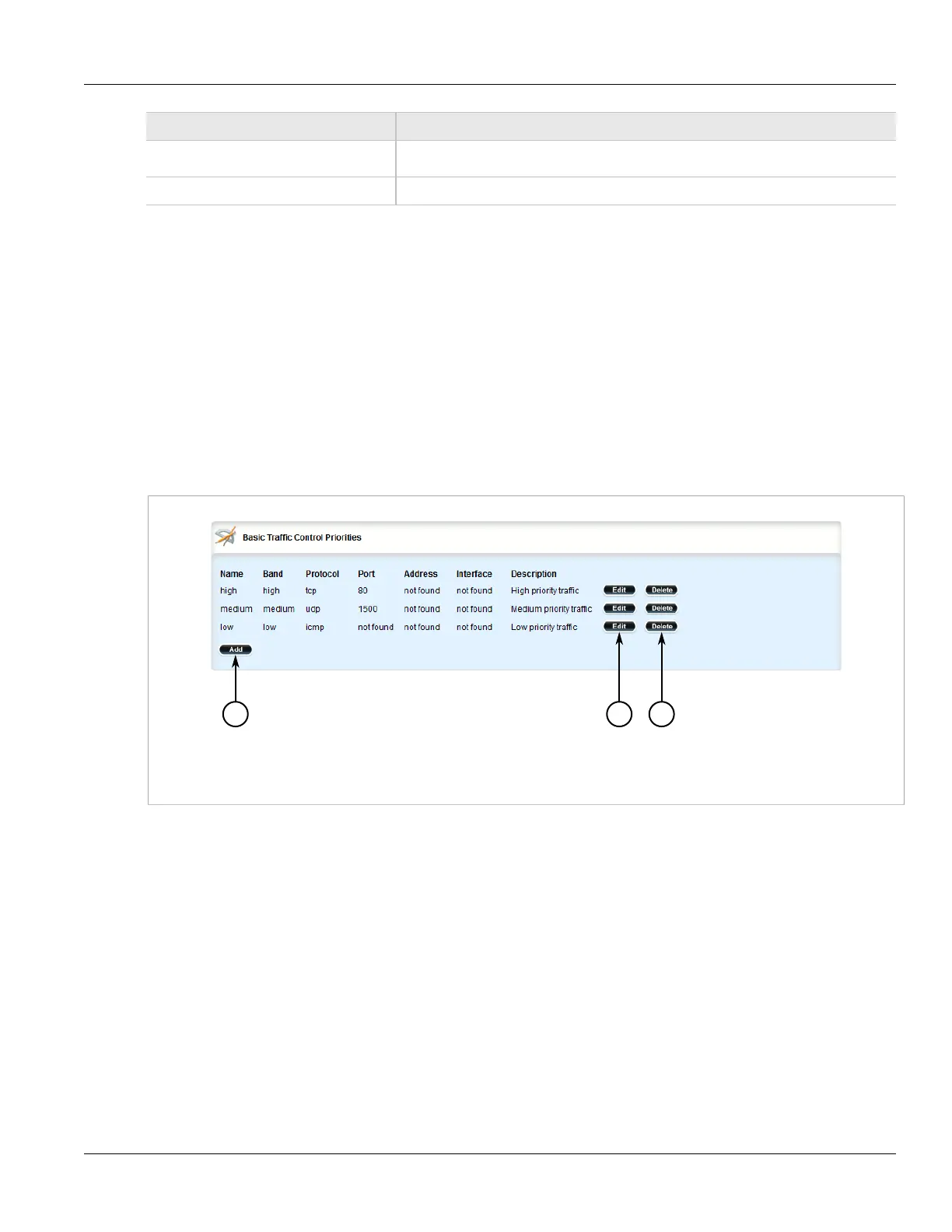

Figure 878: Basic Traffic Control Priorities Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen traffic control priority.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.37.4
Managing Traffic Control Classes
Traffic control classes define classes for traffic shaping. Optionally, they can also define parameters for Type
of Service (ToS), which is an eight-bit field in the IPv4 header. Traffic control can inspect the ToS value of an
incoming IP frame and classify traffic to provide preferential service in the outgoing queue. Traffic classification is
done based on the ToS value and the ToS options defined for each traffic control class and traffic control rule. IP
Traffic matching with the ToS options takes precedence over the mark rules.
