Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
774 Viewing a List of Traffic Control Rules
Section 5.37.6.1
Viewing a List of Traffic Control Rules
To view a list of traffic control rules, navigate to qos » traffic-control » advanced-configuration » tcrules. If
rules have been configured, the Advanced Traffic Control Rules table appears.

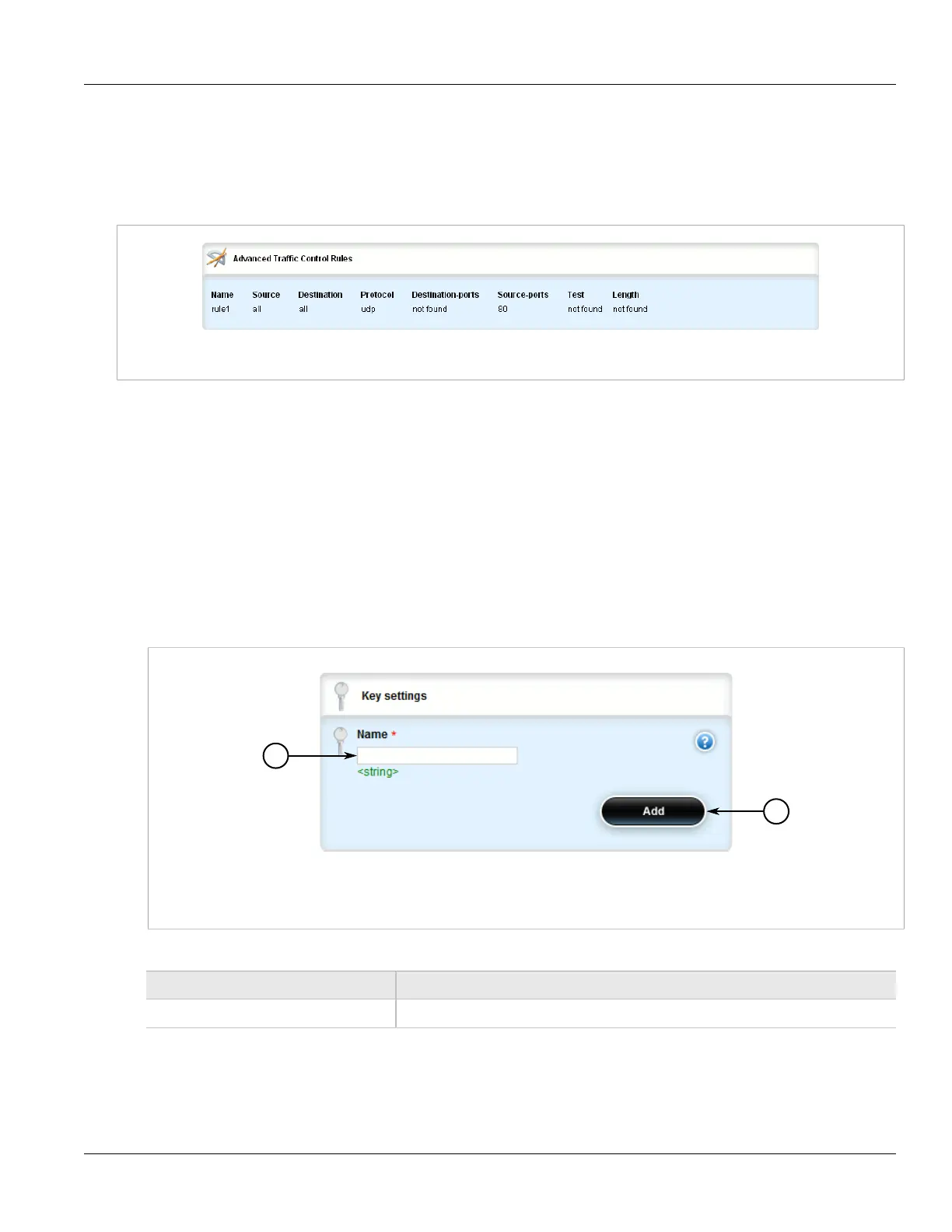

Figure 888: Advanced Traffic Control Rules Table
If no rules have been configured, add rules as needed. For more information, refer to Section 5.37.6.2, “Adding a
Traffic Control Rule”.
Section 5.37.6.2
Adding a Traffic Control Rule
To add a new traffic control rule, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to qos » traffic-control » advanced-configuration » tcrules, and click <Add tcrules>. The Key
Settings form appears.
Figure 889: Key Settings Form
1. Name Box 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
name A distinct name for this rule.
4. Click Add to create the new traffic control rule. The Advanced Traffic Control Rules form appears.
