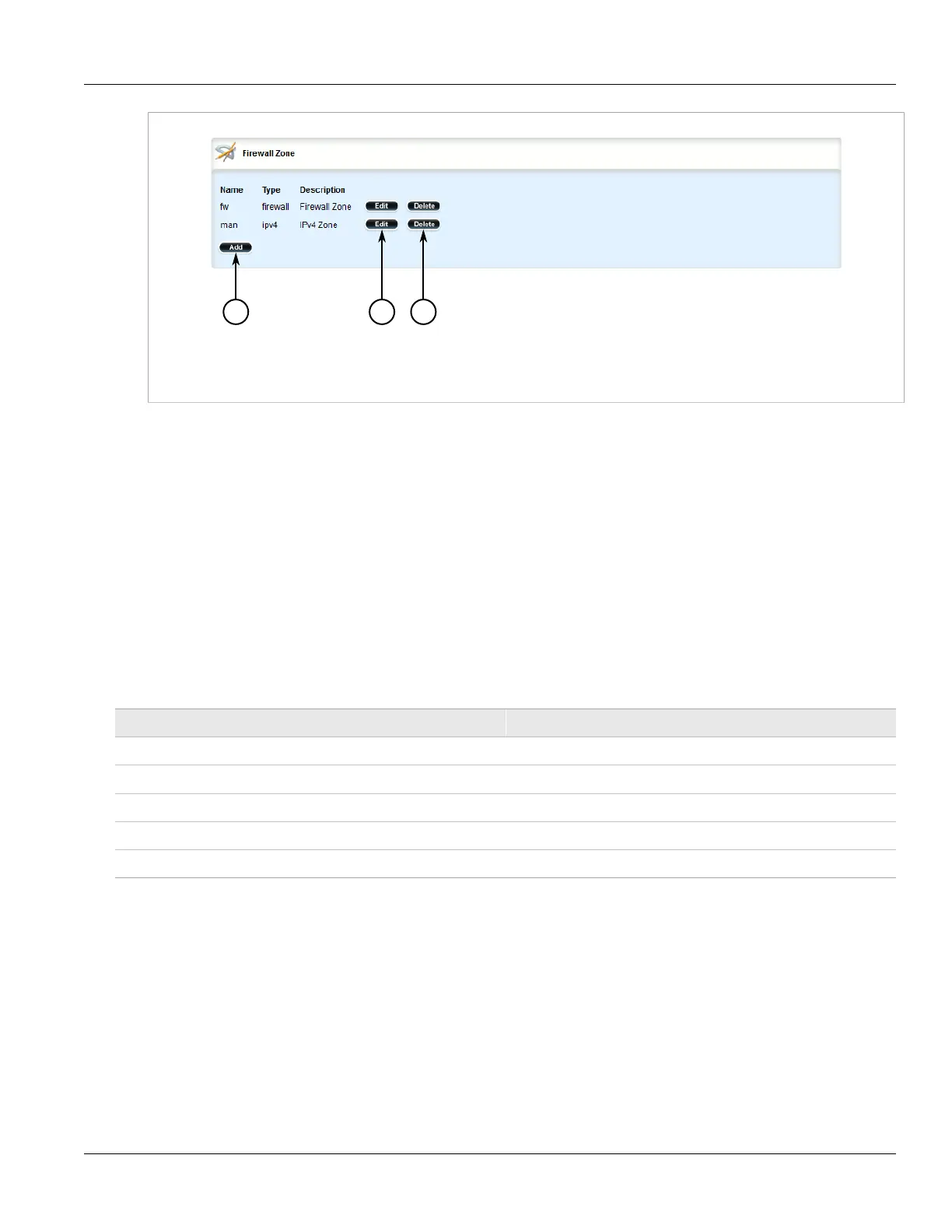

Figure 411: Firewall Zone Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen zone.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.17.9
Managing Interfaces
Firewall interfaces are the LAN and WAN interfaces available to the router. Each interface must be placed in a
network zone. If an interface supports more than one subnet, it must be placed in zone undefined-zone and use
the zone hosts setup to define a zone for each subnet on the interface.
Table: Example
Interface Zone
Switch.0001 Loc
Switch.0002 Loc
Switch.0003 Any
Switch.0004 DMZ
W1ppp net
The following sections describe how to configure and manage zones for a firewall:
• Section 5.17.9.1, “Viewing a List of Interfaces”
• Section 5.17.9.2, “Adding an Interface”
• Section 5.17.9.3, “Associating an Interface with a Zone”
• Section 5.17.9.4, “Configuring a Broadcast Address”
• Section 5.17.9.5, “Deleting an Interface”
