Adding an HDLC-ETH VLAN 739

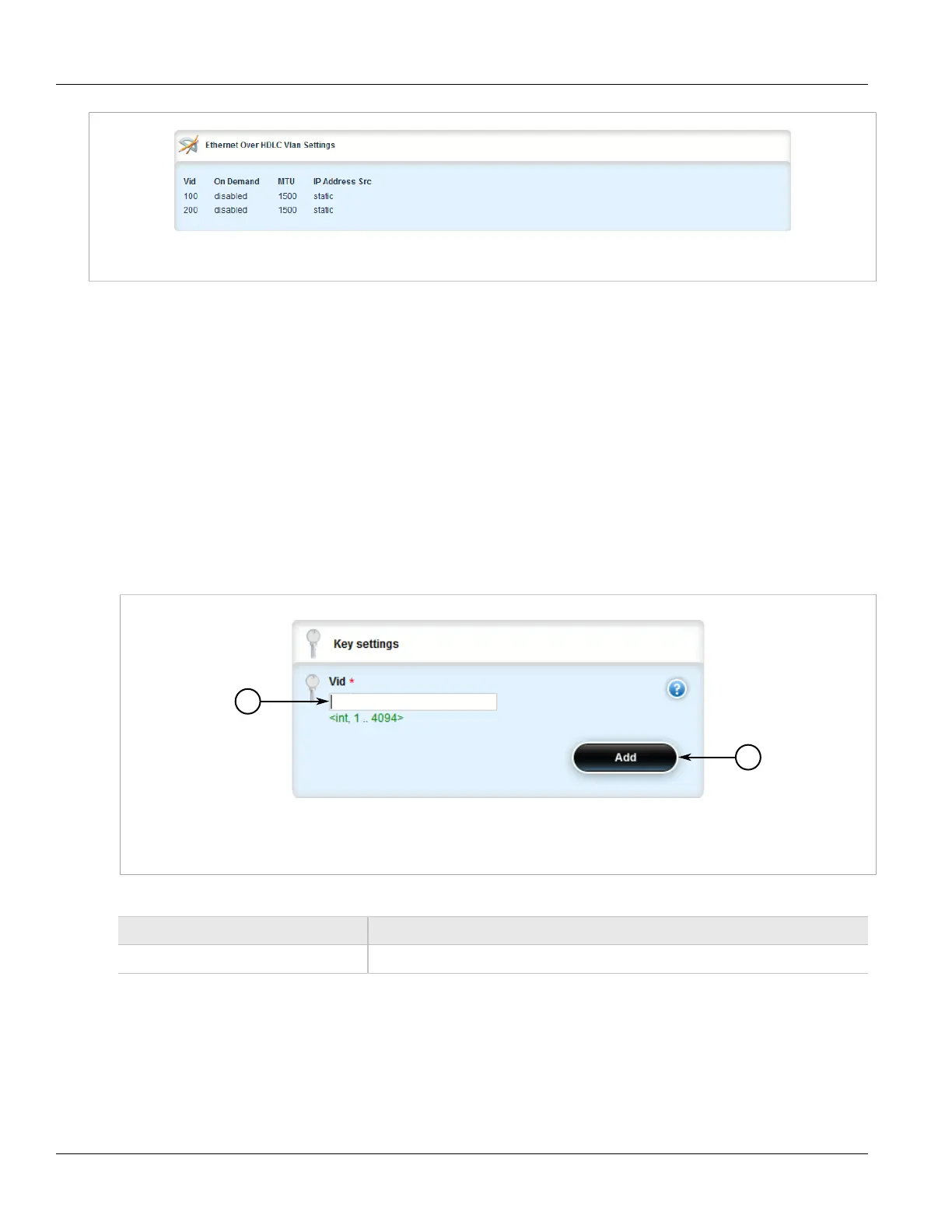

Figure 849: Ethernet Over HDLC VLAN Settings Table
If no VLANs have been configured, add VLANs as needed. For more information, refer to Section 5.35.6.2,
“Adding an HDLC-ETH VLAN”.
Section 5.35.6.2
Adding an HDLC-ETH VLAN
To add a VLAN to an HDLC-ETH connection, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » wan » {interface} » {protocol} » channel » {number} » connection » hdlc-eth »
vlan, where {interface} is the WAN interface, {protocol} is either T1 or E1, and {number} is the channel
number.
3. Click <Add vlan>. The Key Settings form appears.
Figure 850: Key Settings Form
1. VID Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
vid VLAN ID for this routable logical interface
5. Click Add to create the new channel. The Ethernet Over HDLC VLAN Settings form appears.
