Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
738 Managing VLANs for HDLC-ETH Connections

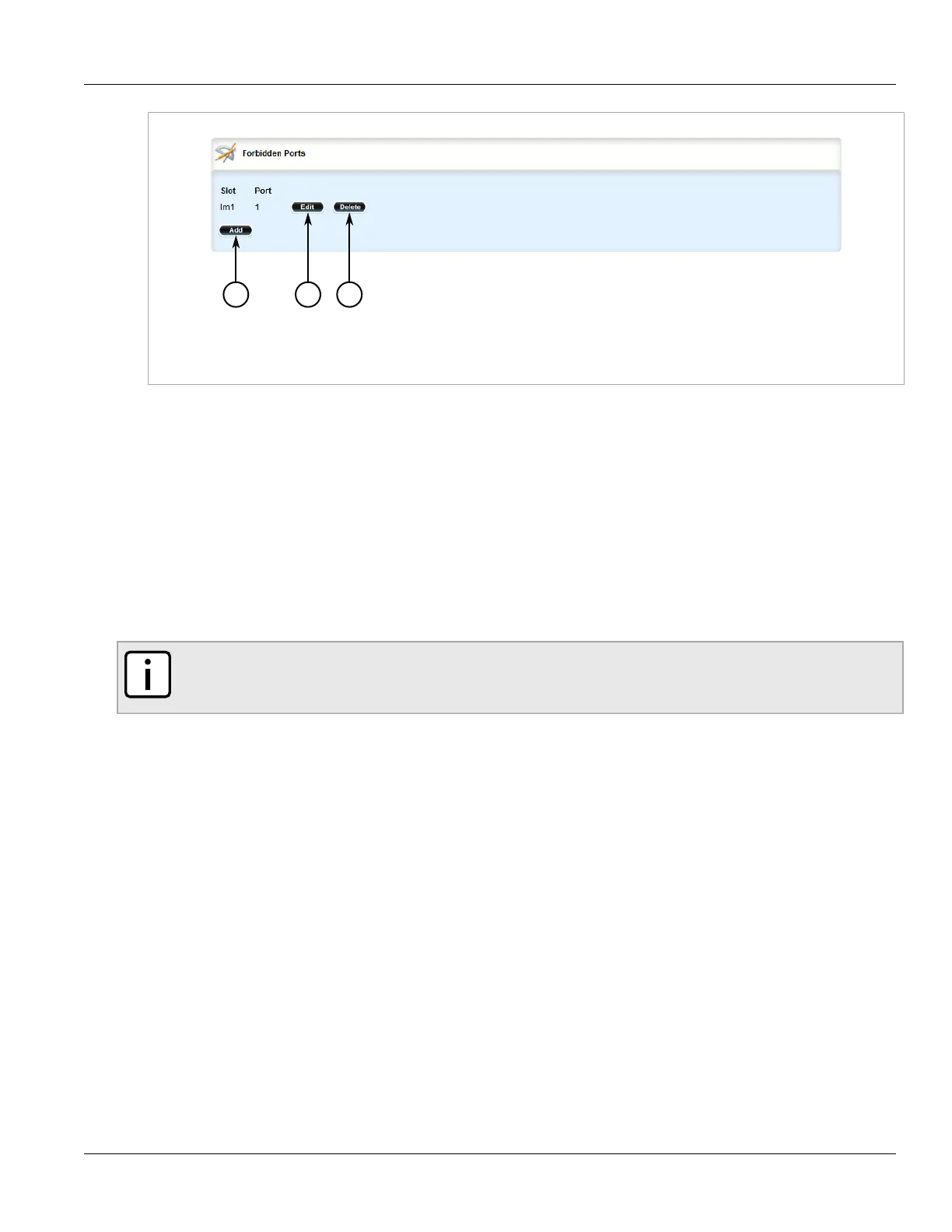

Figure 848: Forbidden Ports Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen port.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.35.6
Managing VLANs for HDLC-ETH Connections
VLANs can be used to create logical separations between multiple HDLC-ETH connections within a T1 or E1
channel.
NOTE
Frames egressed through this logical interface will not be tagged with the VLAN configured for the
HDLC-ETH connection.
The following sections describe how to configure and manage VLANs for HDLC-ETH connections:
• Section 5.35.6.1, “Viewing a List of HDLC-ETH VLANs”
• Section 5.35.6.2, “Adding an HDLC-ETH VLAN”
• Section 5.35.6.3, “Deleting an HDLC-ETH VLAN”
Section 5.35.6.1
Viewing a List of HDLC-ETH VLANs
To view a list of VLANs configured for an HDLC-ETH connection, navigate to interface » wan » {interface} »
{protocol} » channel » {number} » connection » hdlc-eth » vlan, where {interface} is the WAN interface,
{protocol} is either T1 or E1, and {number} is the channel number. If VLANs have been configured, the Ethernet
Over HDLC VLAN Settings table appears.
